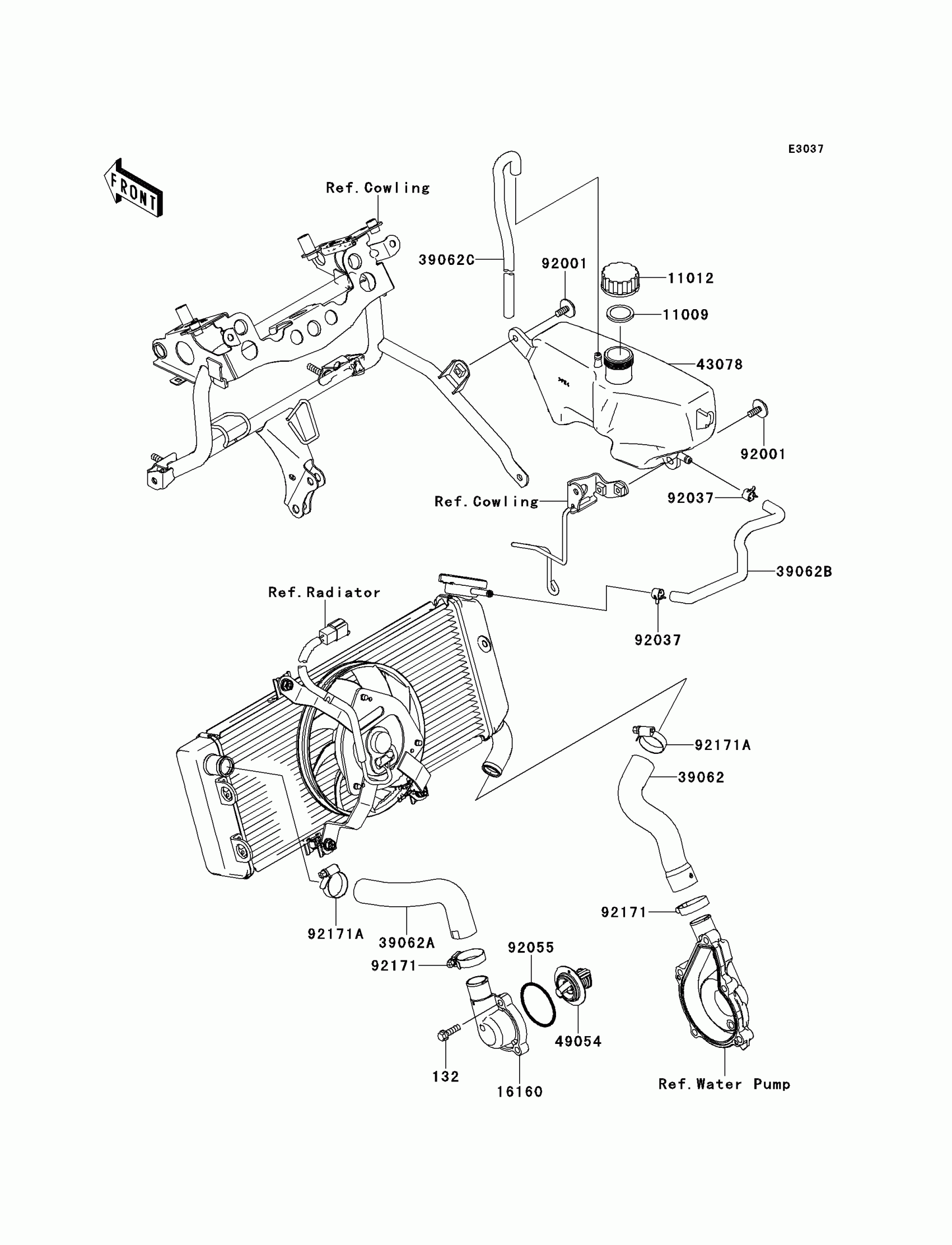

Find the part on the Water Pipe diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Versys® (European) Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132BC0620

1
Out of stock

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

16160

BODY,THERMOSTAT

16160-0118

1
Out of stock

39062

HOSE-COOLING,W.PUMP-RAD

39062-0161

1
Out of stock

39062A

HOSE-COOLING,HEAD-RAD

39062-0162

1
Out of stock

39062B

HOSE-COOLING,RAD-RESERVOIR

39062-0163

1
Out of stock

39062C

HOSE-COOLING,BREATHER

39062-0164

1
Out of stock

43078

RESERVOIR

43078-0035

1
Out of stock

49054

THERMOSTAT

49054-0001

1
Out of stock

92001

BOLT,6X16

92001-1950

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92055

RING-O,44.7X2.4

92055-1279

1
Out of stock

92171

CLAMP

92171-0261

1
Out of stock

92171A

CLAMP

92171-0337

1
Out of stock
