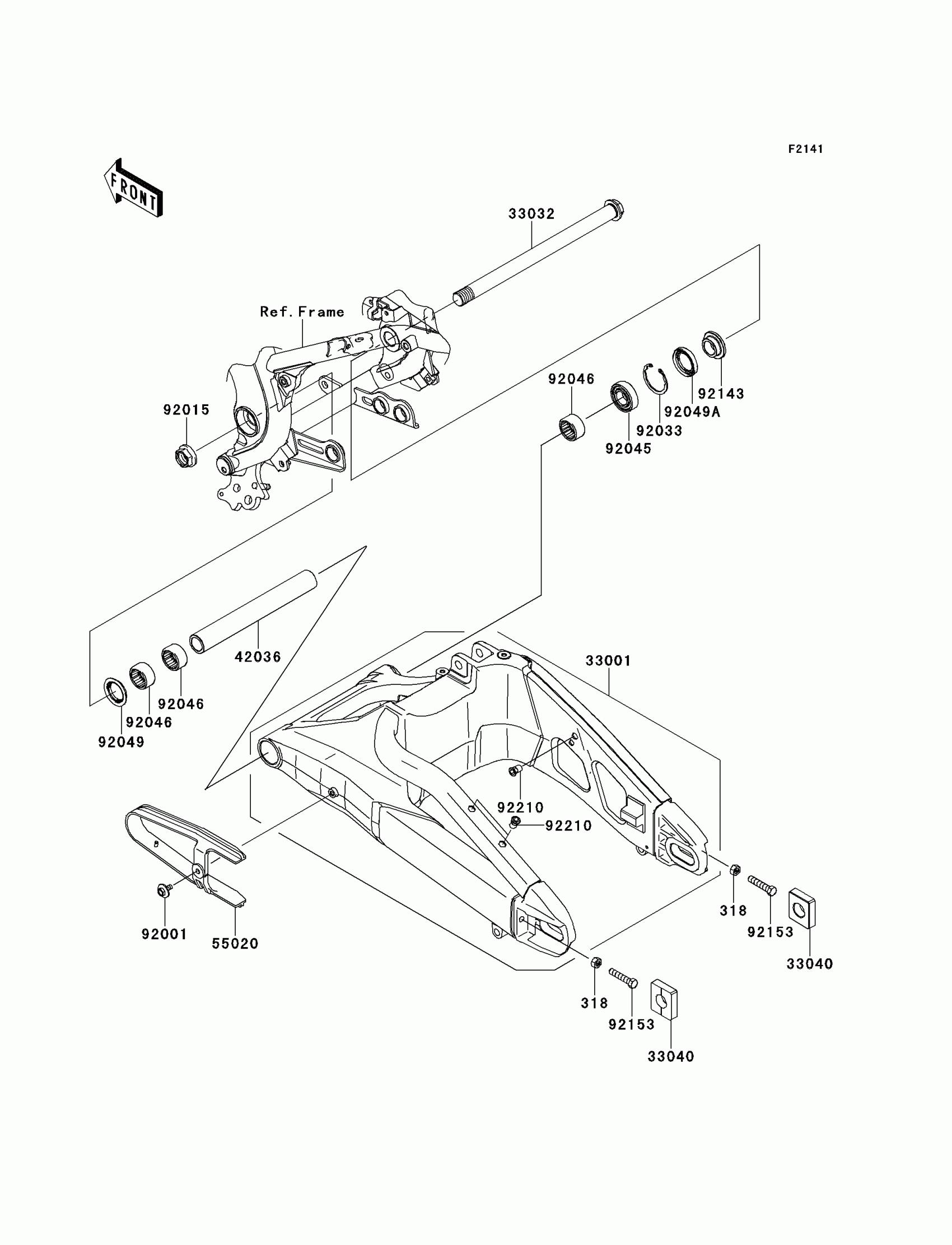

Kawasaki VERSYS® (European) Swingarm Diagram

Description

Price

318

NUT-HEX-SMALL

318BB0800

$3.01

33001

ARM-COMP-SWING,P.SILVER

33001-0090-458

Unavailable

33032

SHAFT-SWING ARM

33032-1142

$107.05

33040

ADJUSTER-CHAIN

33040-1109

$18.36

42036

SLEEVE,SWING ARM,L=219.5

42036-1358

$75.03

55020

GUARD,CHAIN

55020-0234

$36.22

92001

BOLT,6X16

92001-1950

$3.29

92015

NUT,FLANGED,20MM

92015-1724

$11.31

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92049A

SEAL-OIL,TC28426.5

92049-1185

$9.02

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$18.34

92153

BOLT,8X40

92153-0736

$3.16

92210

NUT,POP,6MM,L=15

92210-1397

$4.81
