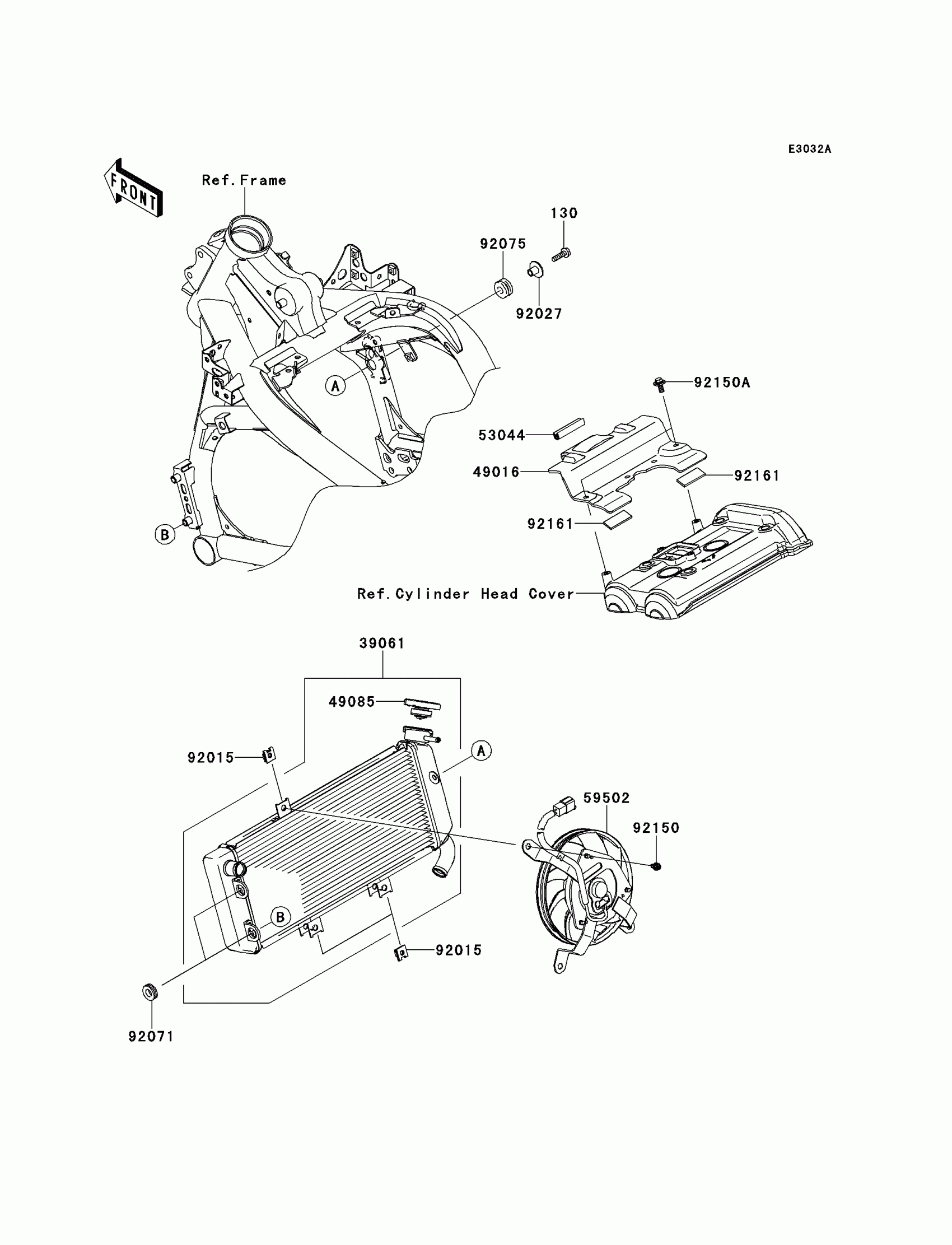

Find the part on the Radiator diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Versys® (European) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

39061

RADIATOR-ASSY

39061-0144

1
Out of stock

49016

COVER-SEAL,HOT WIND

49016-0033

1

$32.98

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

53044

TRIM,L=50

53044-1185

1

$4.66

In stock

59502

FAN-ASSY

59502-0041

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92150A

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock

92161

DAMPER

92161-0301

1

$1.81

In stock
