2007 Kawasaki Versys (Canada Only) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2007 Kawasaki Versys (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

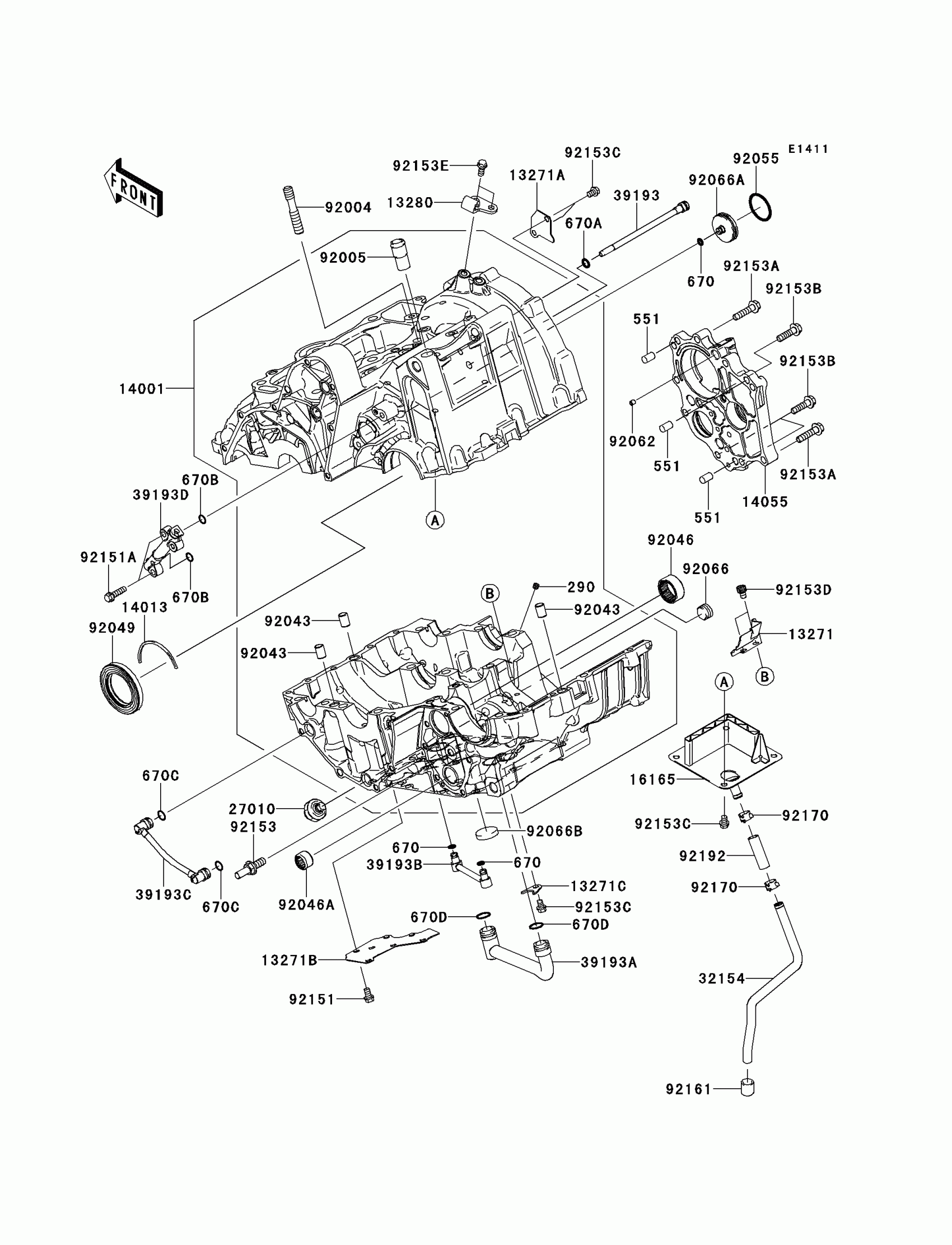

2007 Kawasaki Versys (Canada Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

290

SCREW-SET-SOCKET,6X6

290Q0606

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

13271

PLATE,OIL SHIELDING

13271-0575

1
Out of stock

13271A

PLATE

13271-0577

1
Out of stock

13271B

PLATE

13271-0584

1
Out of stock

13271C

PLATE,OIL PIPE

13271-1187

1
Out of stock

13280

HOLDER,CLUTCH CABLE

13280-0224

1
Out of stock

14001

SET-CRANKCASE

14001-0102

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1004

1
Out of stock

14055

CASE-GEAR

14055-0018

1
Out of stock

16165

SEPARATOR,BREATHER

16165-0001

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32154

PIPE,BREATHER

32154-0661

1
Out of stock

39193

PIPE-OIL

39193-0029

1
Out of stock

39193A

PIPE-OIL

39193-0031

1
Out of stock

39193B

PIPE-OIL

39193-0032

1
Out of stock

39193C

PIPE-OIL

39193-0033

1
Out of stock

39193D

PIPE-OIL

39193-0046

1
Out of stock

92004

STUD,10X34.5

92004-0024

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92046

BEARING-NEEDLE,24BTM3013

92046-0017

1
Out of stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,HTC40628

92049-1501

1
Out of stock

92055

RING-O,29.7X2.4

92055-0006

1
Out of stock

92062

NOZZLE,5X6,SILVER

92062-1086

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1
Out of stock

92066A

PLUG,INPUT SHAFT

92066-0056

1
Out of stock

92066B

PLUG,25X5

92066-0061

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

1
Out of stock

92151A

BOLT,6X22

92151-1937

1
Out of stock

92153

BOLT,8X20

92153-0530

1
Out of stock

92153A

BOLT,FLANGED,6X30

92153-0962

1
Out of stock

92153B

BOLT,FLANGED,7X26

92153-0963

1
Out of stock

92153C

BOLT,FLANGED-SMALL,6X8

92153-0964

1
Out of stock

92153D

BOLT,SOCKET,6X8

92153-1414

1
Out of stock

92153E

BOLT

92153-1805

1
Out of stock

92161

DAMPER

92161-0267

1
Out of stock

92170

CLAMP

92170-1167

1
Out of stock

92192

TUBE,9X12X38

92192-0225

1
Out of stock

670

O RING

670D1505

1
Out of stock

670A

O RING,8MM

670D1508

1
Out of stock

670B

O RING,9MM

670D1509

1
Out of stock

670C

O RING,10MM

670D1510

1
Out of stock

670D

O RING,14MM

670D2014

1
Out of stock
