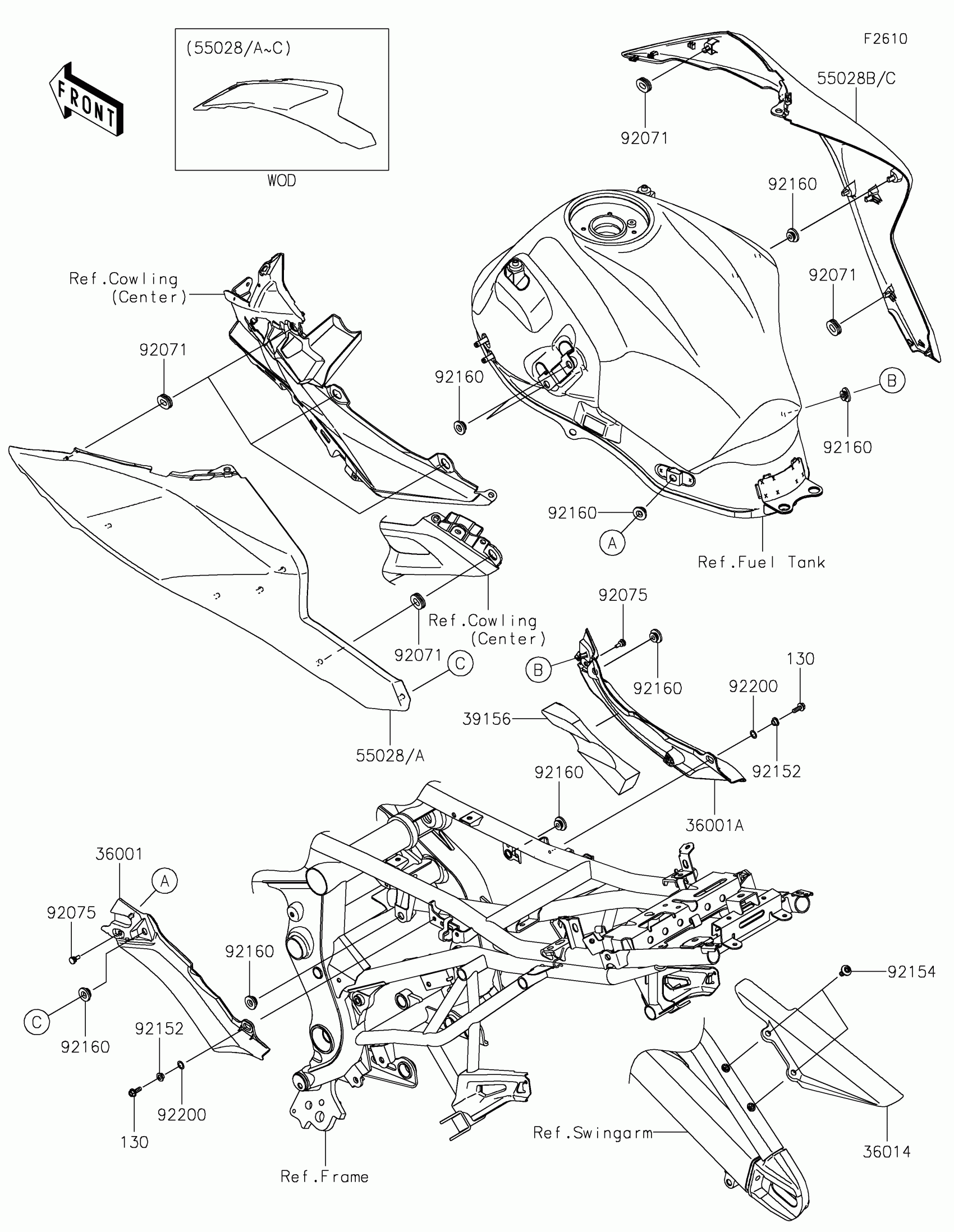

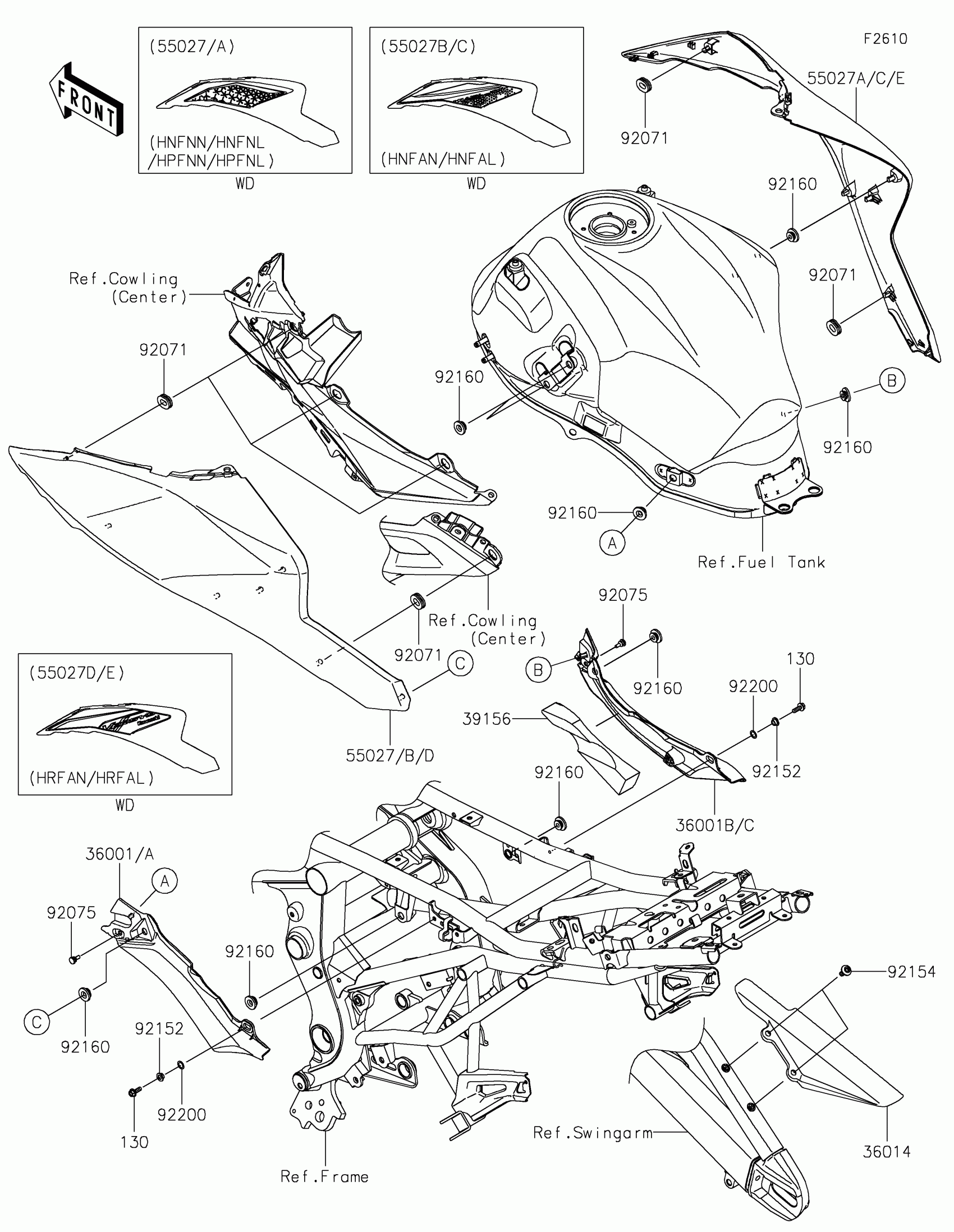

2024 Kawasaki Versys 650 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,M.M.D.GRAY

36001-0721-69P

1

$52.72

In stock

36001A

COVER-SIDE,LH,M.F.S.BLACK

36001-0721-739

1

$52.72

In stock

36001B

COVER-SIDE,RH,M.M.D.GRAY

36001-0722-69P

1

$52.72

In stock

36001C

COVER-SIDE,RH,M.F.S.BLACK

36001-0722-739

1

$46.78

In stock

36014

CASE-CHAIN,RR

36014-0018

1

$30.39

In stock

39156

PAD,SIDE COVER,RH

39156-2790

1

$20.63

In stock

55027

1

$268.24

In stock

55027A

1

$268.24

In stock

55027D

1

$297.88

In stock

55027E

1

$281.42

In stock

92071

GROMMET,11X23X7

92071-0762

1

$1.27

In stock

92075

DAMPER,6X10X15

92075-1808

1

$1.24

In stock

92152

COLLAR,5.6X8X5

92152-2339

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0932

1

$1.68

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92200

WASHER,8.2X12X0.5

92200-1887

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock
