2021 Kawasaki Versys® 650 ABS Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2021 Kawasaki Versys® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

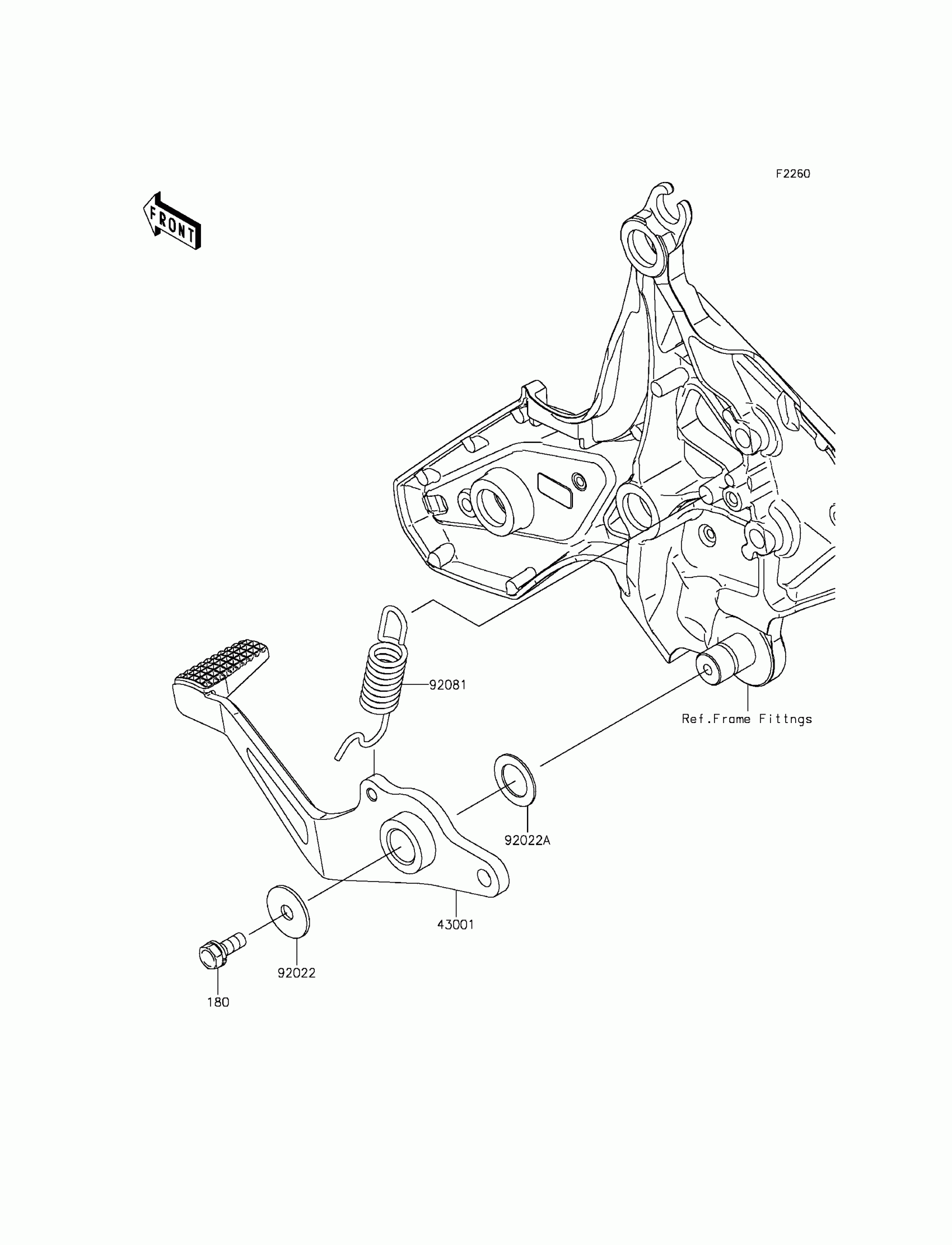

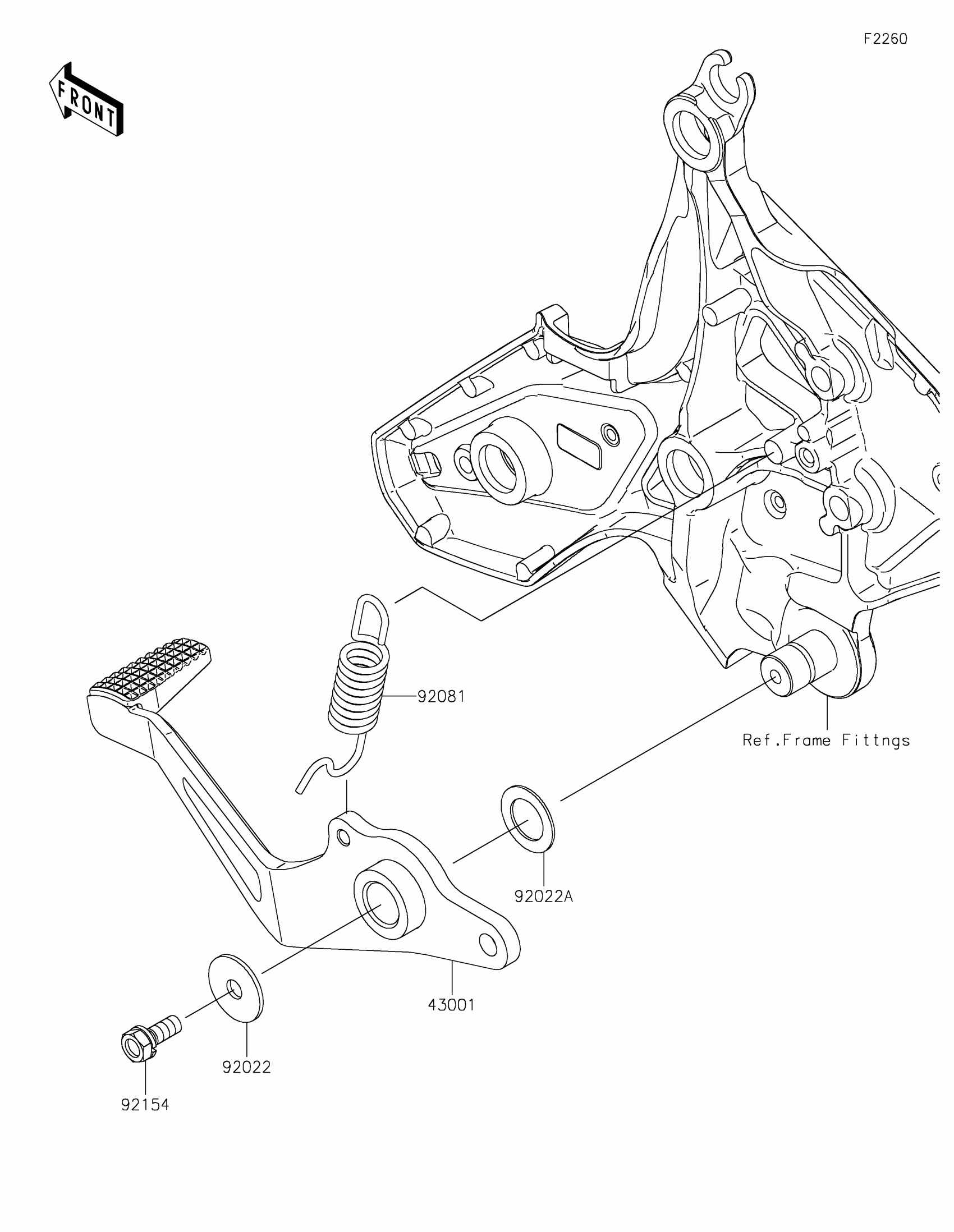

2021 Kawasaki Versys® 650 ABS Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-0745

1
Out of stock

92022

WASHER,7X24X1.6

92022-228

1
Out of stock

92022A

WASHER,15.3X24X1

92022-326

1
Out of stock

92081

SPRING,BRAKE PEDAL

92081-1833

1
Out of stock

92154

BOLT,UPSET-WS,6X16

92154-0935

1
Out of stock
