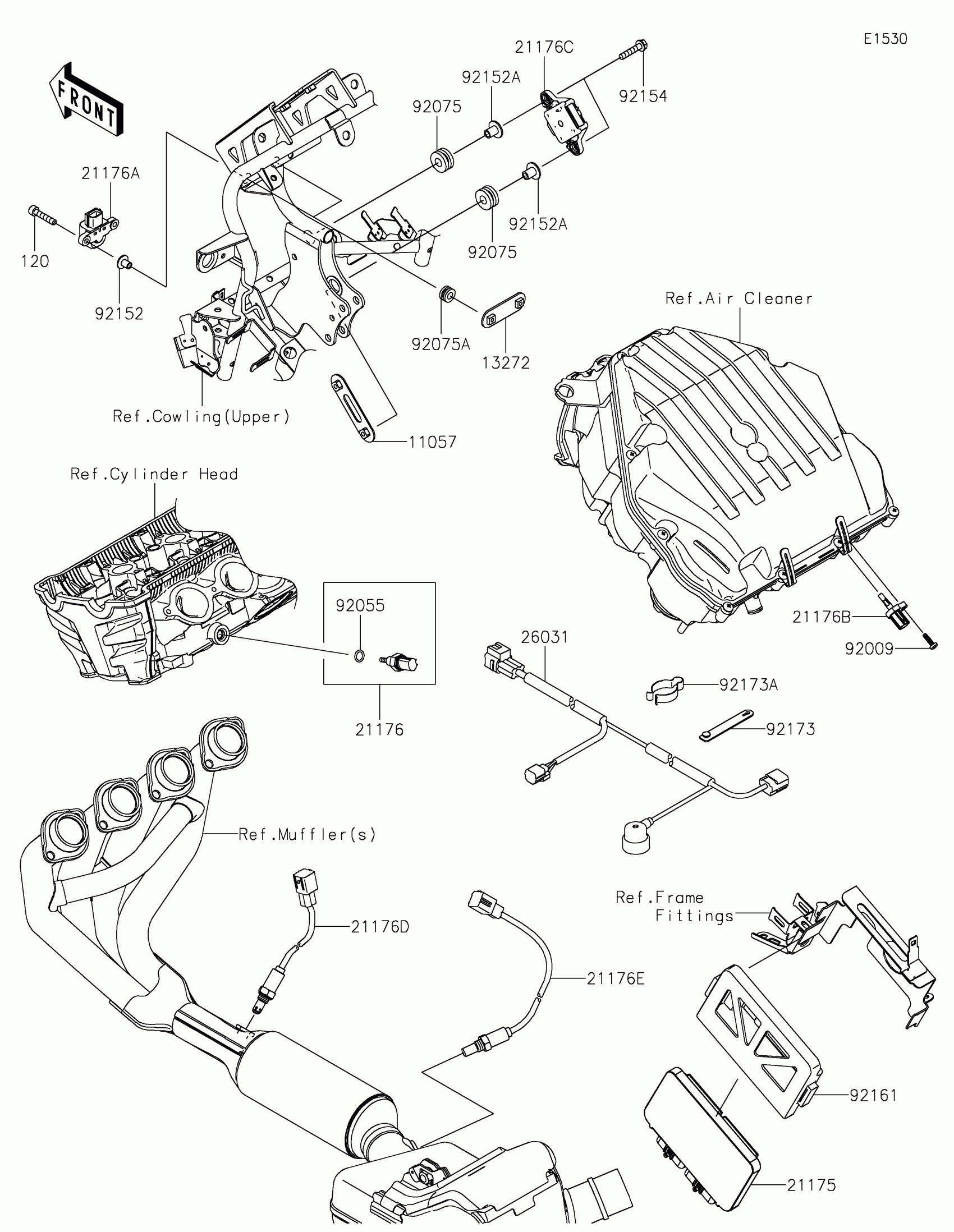

Kawasaki Versys 1100 SE LT ABS Fuel Injection Diagram

Description

Price

11057

BRACKET,SENSOR

11057-0381

$4.31

13272

PLATE,VEHICLE DOWN SENSOR

13272-2706

$3.15

21175

CONTROL UNIT-ELECTRONIC

21175-2162

$1,330.57

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176C

SENSOR,GYRO

21176-1126

$753.32

21176D

SENSOR,OXYGEN

21176-1205

$233.24

21176E

SENSOR,OXYGEN

21176-1228

$233.24

26031

HARNESS,SUB

26031-2470

$61.70

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92075

DAMPER,10X24X12

92075-1690

$3.81

92075A

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-1625

$7.41

92152A

COLLAR,6.3X9.5X14.1

92152-1847

$5.66

92154

BOLT,FLANGED,6X30

92154-1857

$1.81

92161

DAMPER,ECU

92161-2140

$25.56

92173

CLAMP

92173-2194

$1.56

92173A

CLAMP

92173-2419

$10.51

120

BOLT-SOCKET,5X25

120CA0525

$3.86
