2025 Kawasaki Versys 1100 Se LT ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

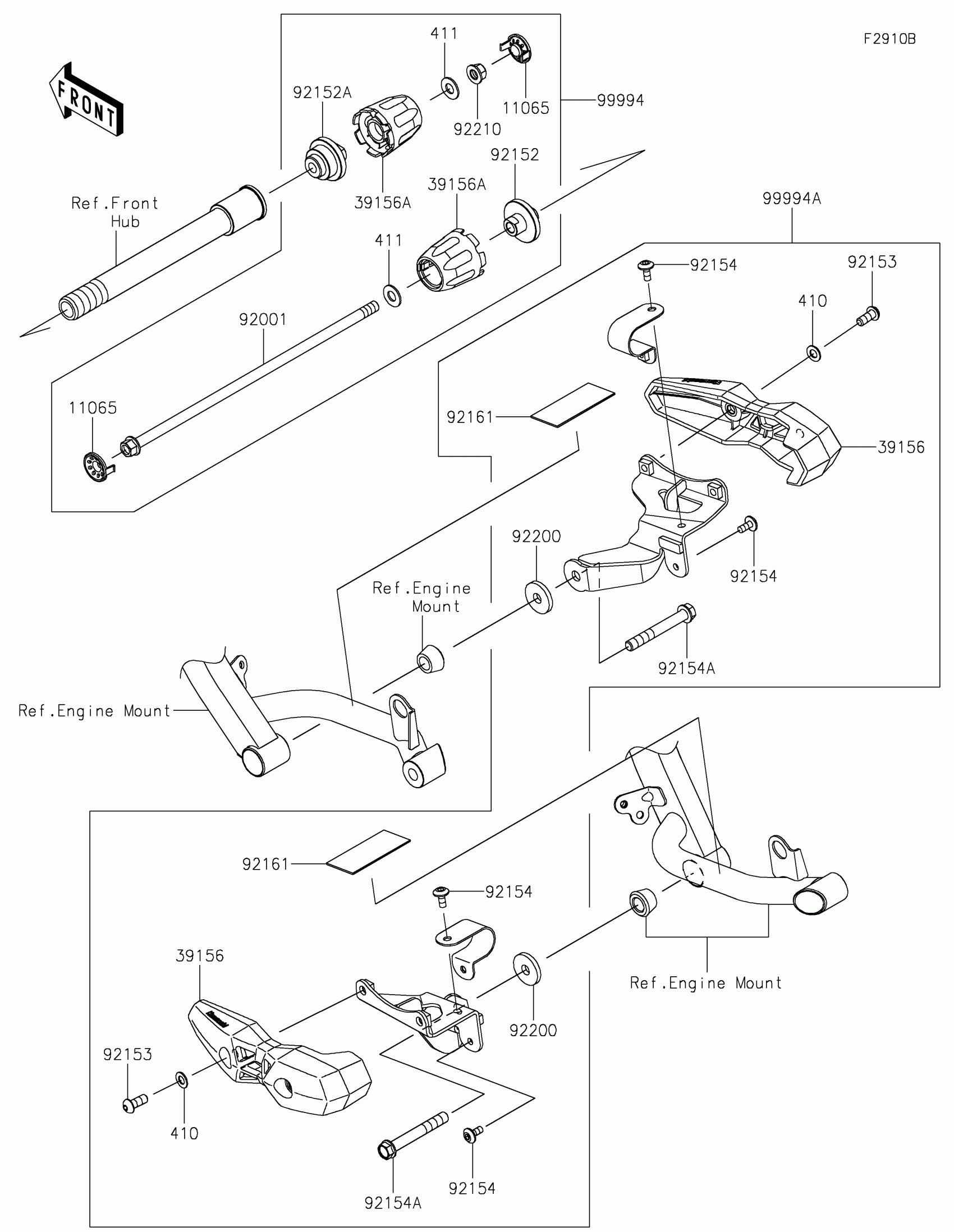

2025 Kawasaki Versys 1100 Se LT ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,B.SILVER

11065-1313-54N

1
Out of stock

39156

PAD,SLIDER

39156-1818

1
Out of stock

39156A

PAD,AXLE SLIDER

39156-2212

1
Out of stock

92001

BOLT,FLANGED,10X325

92001-1654

1
Out of stock

92152

COLLAR,LH

92152-2502

1
Out of stock

92152A

COLLAR,RH

92152-2511

1
Out of stock

92153

BOLT,SOCKET,8X20

92153-0912

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,FLANGED,10X75

92154-1923

1
Out of stock

92161

DAMPER,36X77X1.5

92161-1721

1
Out of stock

92200

WASHER,10.2X32X4.5

92200-1785

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

99994

FRONT AXLE SLIDER

99994-1134

1
Out of stock

99994A

FRAME SLIDER

99994-1139

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM,BLACK

410AB0800

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock
