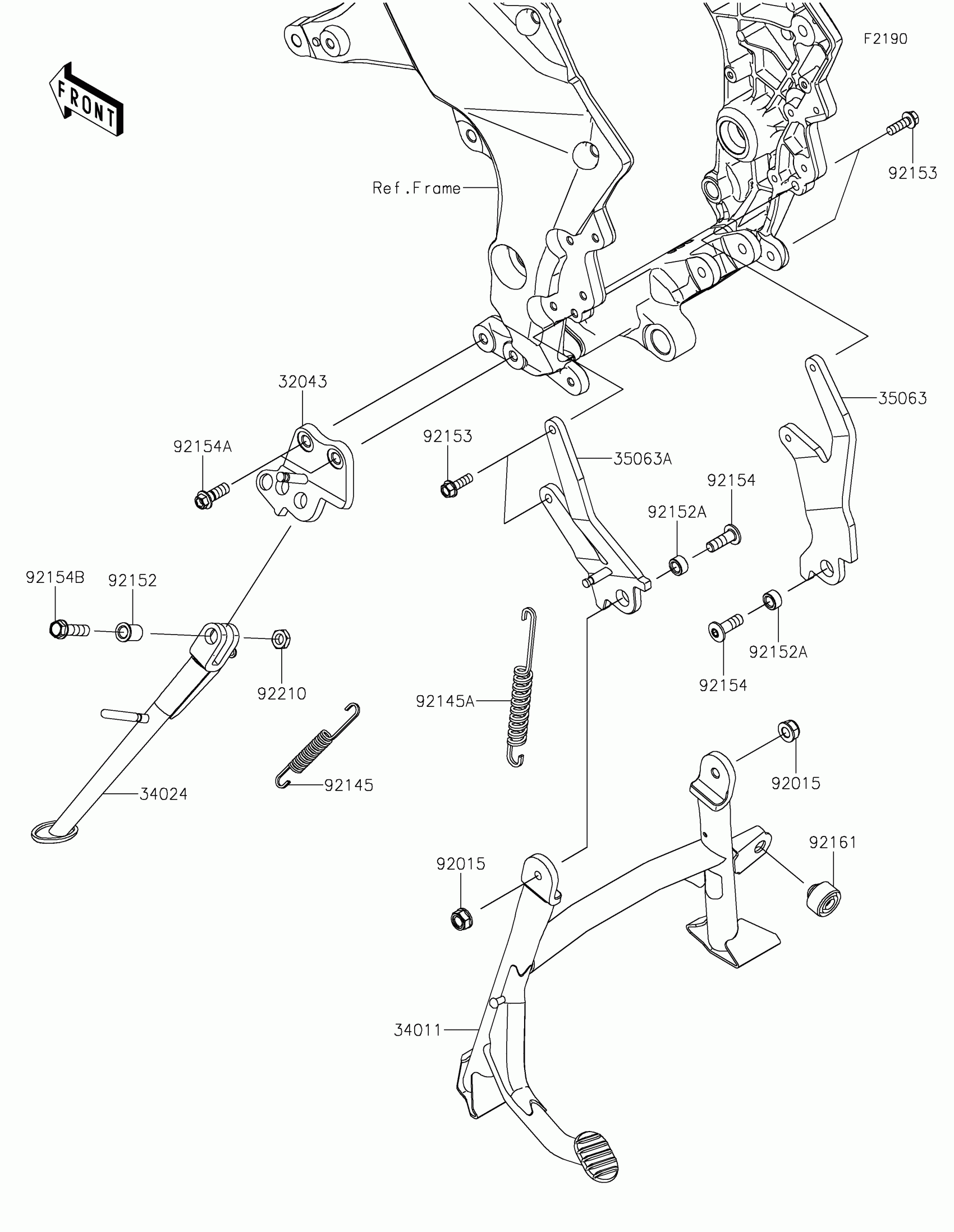

Kawasaki VERSYS® 1000 SE LT+ Stand(s) Diagram

Description

Price

32043

BRACKET-STAND

32043-0642

$109.22

34011

STAND-CENTER

34011-0037

$261.10

34024

STAND-SIDE

34024-0152

$106.14

35063

STAY,CENTER STAND,RH

35063-0981

$85.14

35063A

STAY,CENTER STAND,LH

35063-1485

$97.72

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92145

SPRING,SIDE STAND

92145-0562

$10.74

92145A

SPRING,CENTER STAND

92145-1550

$23.98

92152

COLLAR,10.2X15X20.1

92152-1828

$12.95

92152A

COLLAR,10X17X9

92152-1906

$5.05

92153

BOLT,FLANGED,8X25

92153-1768

$3.51

92154

BOLT,SOCKET,10X30

92154-1665

$4.53

92154A

BOLT,FLANGED,10X28

92154-1963

$4.39

92154B

BOLT,FLANGED,10X37

92154-2330

$7.92

92161

DAMPER

92161-2154

$7.56

92210

NUT,LOCK,10MM

92210-0784

$4.52
