2024 Kawasaki Versys 1000 SE LT+ Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Versys 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

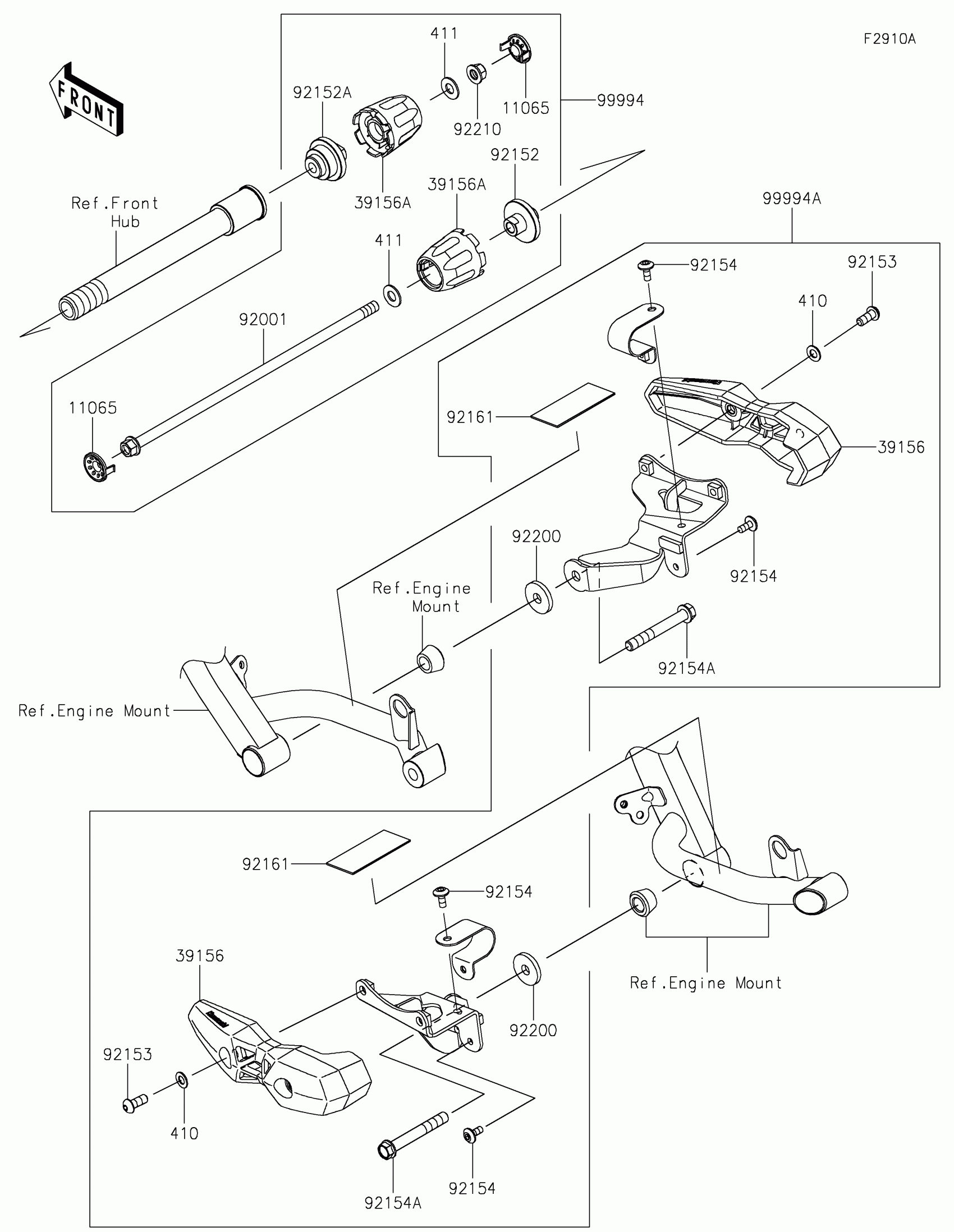

2024 Kawasaki Versys 1000 SE LT+ Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,B.SILVER

11065-1313-54N

1
Out of stock

39156

PAD,SLIDER

39156-1818

1

$46.03

In stock

39156A

PAD,AXLE SLIDER

39156-2212

1

$60.42

In stock

92001

BOLT,FLANGED,10X325

92001-1654

1
Out of stock

92152

COLLAR,LH

92152-2502

1
Out of stock

92152A

COLLAR,RH

92152-2511

1
Out of stock

92153

BOLT,SOCKET,8X20

92153-0912

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,FLANGED,10X75

92154-1923

1
Out of stock

92161

DAMPER,36X77X1.5

92161-1721

1

$7.17

In stock

92200

WASHER,10.2X32X4.5

92200-1785

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

99994

FRONT AXLE SLIDER

99994-1134

1
Out of stock

99994A

FRAME SLIDER

99994-1139

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM,BLACK

410AB0800

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock
