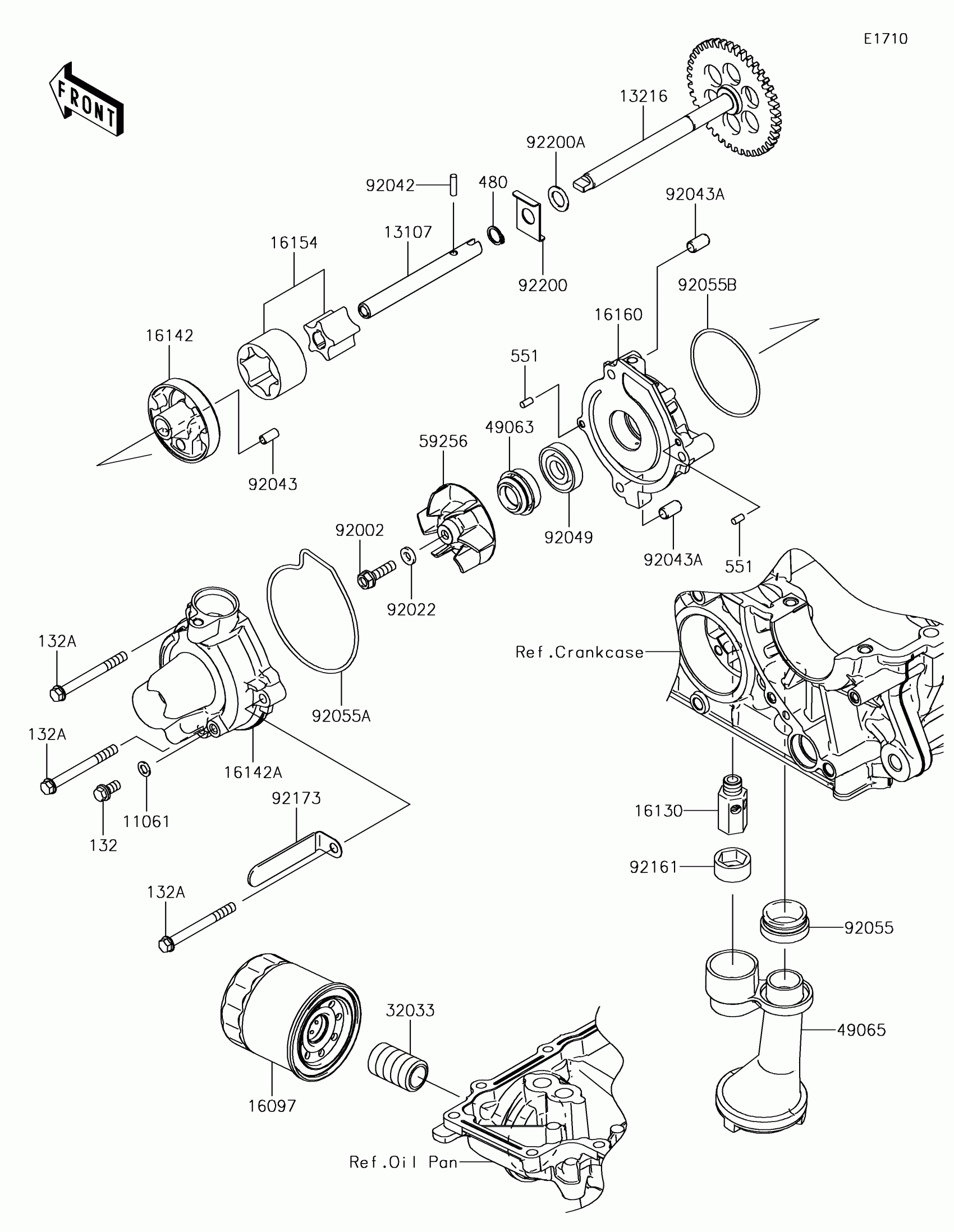

Kawasaki VERSYS® 1000 LT Oil Pump Diagram

#

Description
Price

11061

GASKET

11061-0107

$1.82

13107

SHAFT

13107-0214

$30.20

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

13216

GEAR-COMP,OIL PUMP,41T

13216-0020

$122.40

132A

BOLT-FLANGED-SMALL,6X60

132BC0660

$2.42

16097

FILTER-ASSY-OIL

16097-0008

$11.00

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP

16142-0064

$50.58

16142A

COVER-PUMP

16142-0747

$124.90

16154

ROTOR-PUMP

16154-0057

$67.13

16160

BODY

16160-0796

$124.90

32033

PIPE,OIL FILTER

32033-1535

$9.85

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

49063

SEAL-MECHANICAL

49063-1055

$16.33

49065

FILTER-OIL

49065-0026

$32.36

551

PIN-DOWEL,4X8

551A0408

$0.68

59256

IMPELLER

59256-0555

$37.62

92002

BOLT,6X22

92002-1154

$3.57

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92042

PIN,DOWEL,4X13.8

92042-030

$2.99

92043

PIN,4.2X6X12

92043-1262

$3.29

92043A

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL

92049-0798

$25.64

92055

RING-O,OIL FILTER

92055-1503

$7.25

92055A

RING-O,WATER PUMP COVER

92055-1571

$10.76

92055B

RING-O,59.6X2.4

92055-3018

$4.67

92161

DAMPER

92161-0070

$3.42

92173

CLAMP

92173-1201

$3.29

92200

WASHER

92200-0410

$2.42

92200A

WASHER

92200-1009

$4.47
