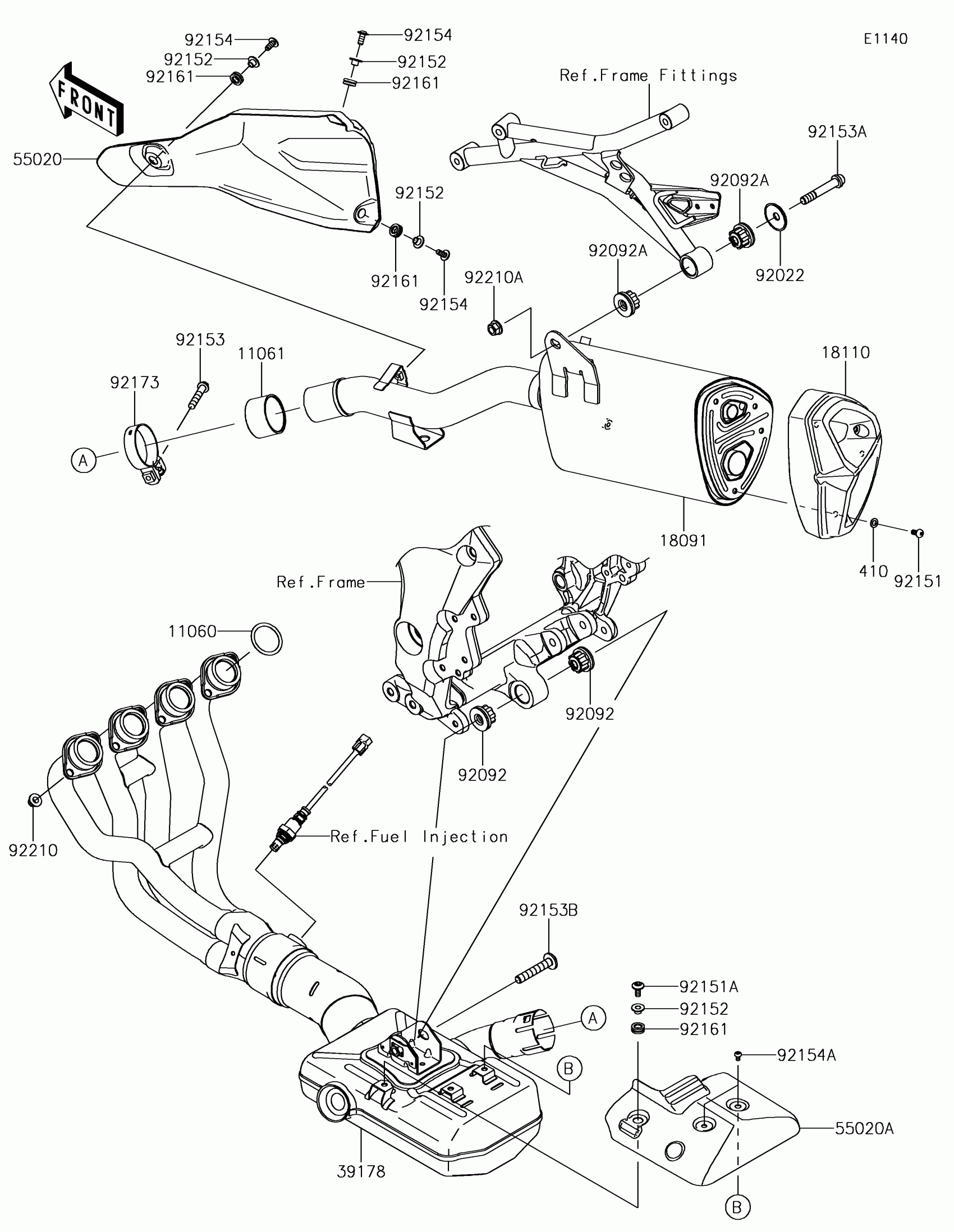

Kawasaki VERSYS® 1000 LT Muffler(s) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$6.01

11061

GASKET,MUFFLER CONNECTING

11061-0726

$35.46

18091

BODY-COMP-MUFFLER

18091-0939

$1,047.01

18110

BODY END-MUFFLER

18110-0174

$176.89

39178

MANIFOLD-COMP-EXHAUST

39178-0221

$1,700.83

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

55020

GUARD,HEAT

55020-0598

$236.83

55020A

GUARD,CHAMBER

55020-0904

$150.98

92022

WASHER

92022-289

$12.40

92092

BUSHING-RUBBER

92092-1081

$20.13

92092A

BUSHING-RUBBER,MUFFLER

92092-1087

$16.04

92151

BOLT,SOCKET,6X12

92151-1219

$4.58

92151A

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,6.3X8.3X16

92152-0286

$4.27

92153

BOLT,8X45

92153-0702

$2.76

92153A

BOLT,SOCKET,10X60

92153-1837

$10.34

92153B

BOLT,SOCKET,10X58

92153-1930

$8.46

92154

BOLT,SOCKET,6X14

92154-0856

$1.43

92154A

BOLT,SOCKET,6X8

92154-0963

$3.97

92161

DAMPER

92161-0306

$4.27

92173

CLAMP

92173-1320

$25.68

92210

NUT,8MM

92210-0076

$4.15

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
