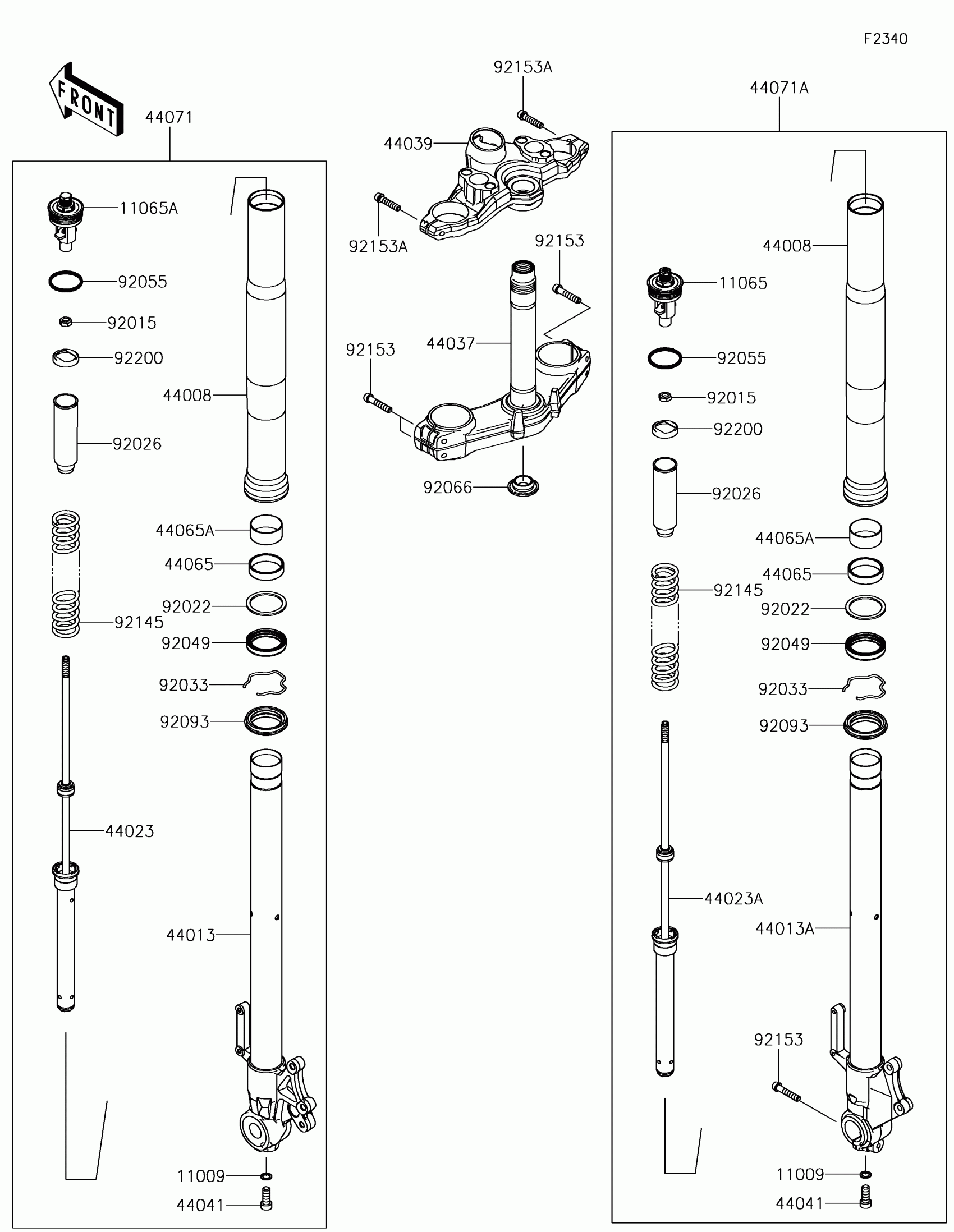

Kawasaki VERSYS® 1000 LT Front Fork Diagram

#

Description
Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

11065

CAP,BLACK

11065-0745-50B

$188.02

11065A

CAP,BLACK

11065-0759-50B

$188.02

44008

PIPE-FORK OUTER,A.BLACK

44008-0075-499

$554.75

44013

PIPE-FORK INNER,LH,F.S.BLACK

44013-0242-18R

$523.08

44013A

PIPE-FORK INNER,RH,F.S.BLACK

44013-0243-18R

$523.08

44023

CYLINDER-SET-FORK,LH

44023-0129

$350.79

44023A

CYLINDER-SET-FORK,RH

44023-0130

$565.02

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0132-18R

$584.21

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0147-18R

$309.55

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

44065

BUSHING-FRONT FORK,SLIDE

44065-0056

$16.99

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1142

$17.61

44071

DAMPER-ASSY,FORK,LH,BLACK

44071-0995-50B

$982.64

44071A

DAMPER-ASSY,FORK,RH,BLACK

44071-0996-50B

$1,044.63

92015

NUT

92015-1795

$4.85

92022

WASHER

92022-1299

$6.55

92026

SPACER,FORK

92026-0045

$10.65

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

$18.69

92055

RING-O

92055-0145

$2.10

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER TUBE

92093-1480

$14.02

92145

SPRING

92145-1674

$129.77

92153

BOLT,SOCKET,8X40

92153-0506

$7.46

92153A

BOLT,SOCKET,8X35

92153-0907

$4.34

92200

WASHER

92200-0085

$7.51
