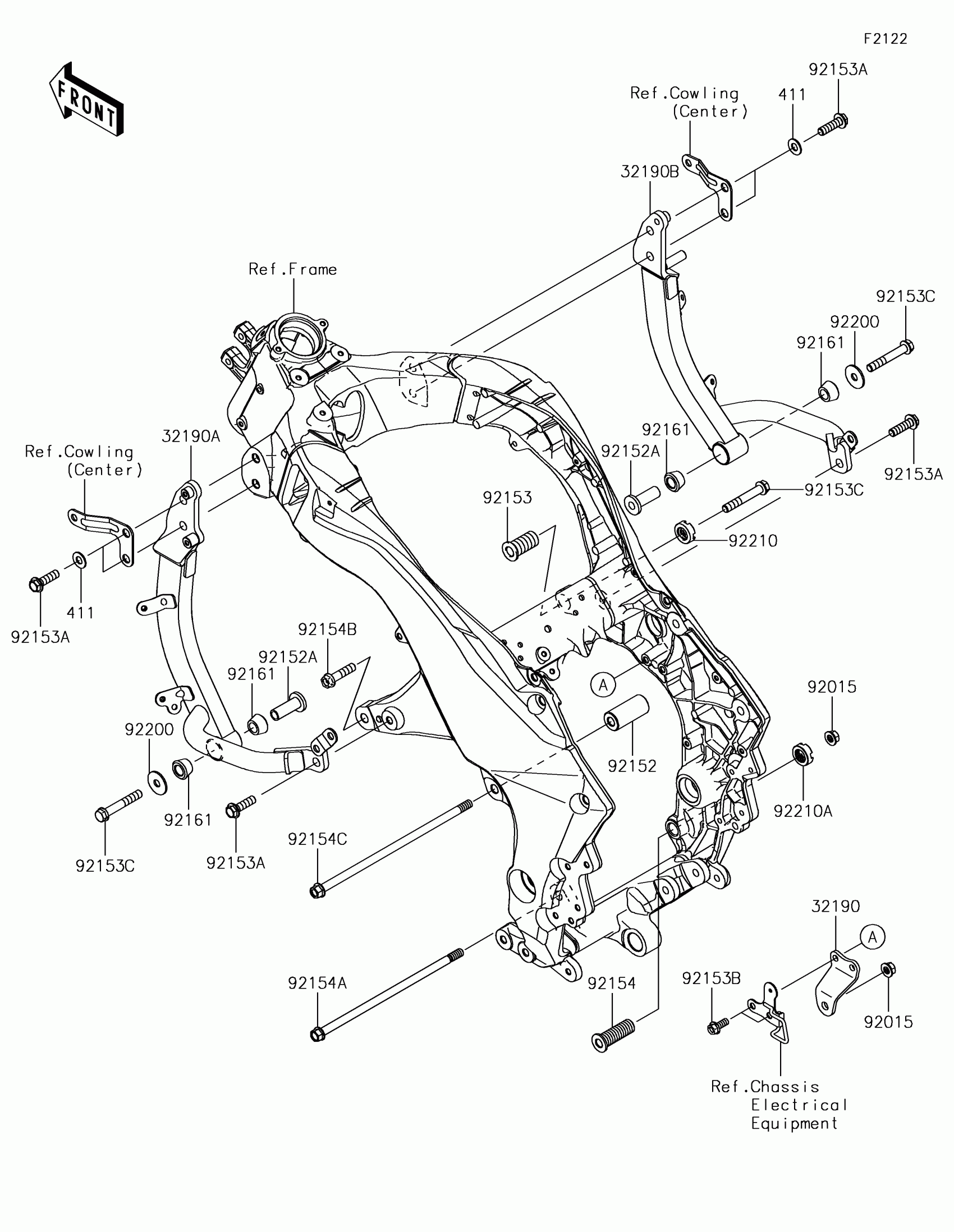

Kawasaki VERSYS® 1000 LT Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,CR CASE UPP,BLK

32190-0458-18R

$10.69

32190A

BRACKET-ENGINE,LH,F.S.BLACK

32190-0675-18R

$260.44

32190B

BRACKET-ENGINE,RH,F.S.BLACK

32190-0676-18R

$265.11

411

WASHER-PLAIN,10MM

411AA1000

$0.81

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92152

COLLAR,11X26X56.5

92152-0853

$14.78

92152A

COLLAR,10.5X14.5X44

92152-1908

$12.95

92153

BOLT,SOCKET,20X43

92153-0488

$17.08

92153A

BOLT,FLANGED,10X35

92153-0802

$4.23

92153B

BOLT,FLANGED,8X20

92153-1554

$2.24

92153C

BOLT,FLANGED,10X65

92153-1931

$5.91

92154

BOLT,ENGINE MOUNT,18X53.5

92154-0267

$29.09

92154A

BOLT,FLANGED,10X255

92154-0827

$23.92

92154B

BOLT,FLANGED,10X54

92154-0903

$7.32

92154C

BOLT,FLANGED,10X270

92154-0906

$20.05

92161

DAMPER,13.7X26X15

92161-1687

$3.27

92200

WASHER,10.2X32X2.3

92200-0978

$2.63

92210

NUT,20MM

92210-0591

$14.78

92210A

NUT,18MM

92210-1203

$13.40
