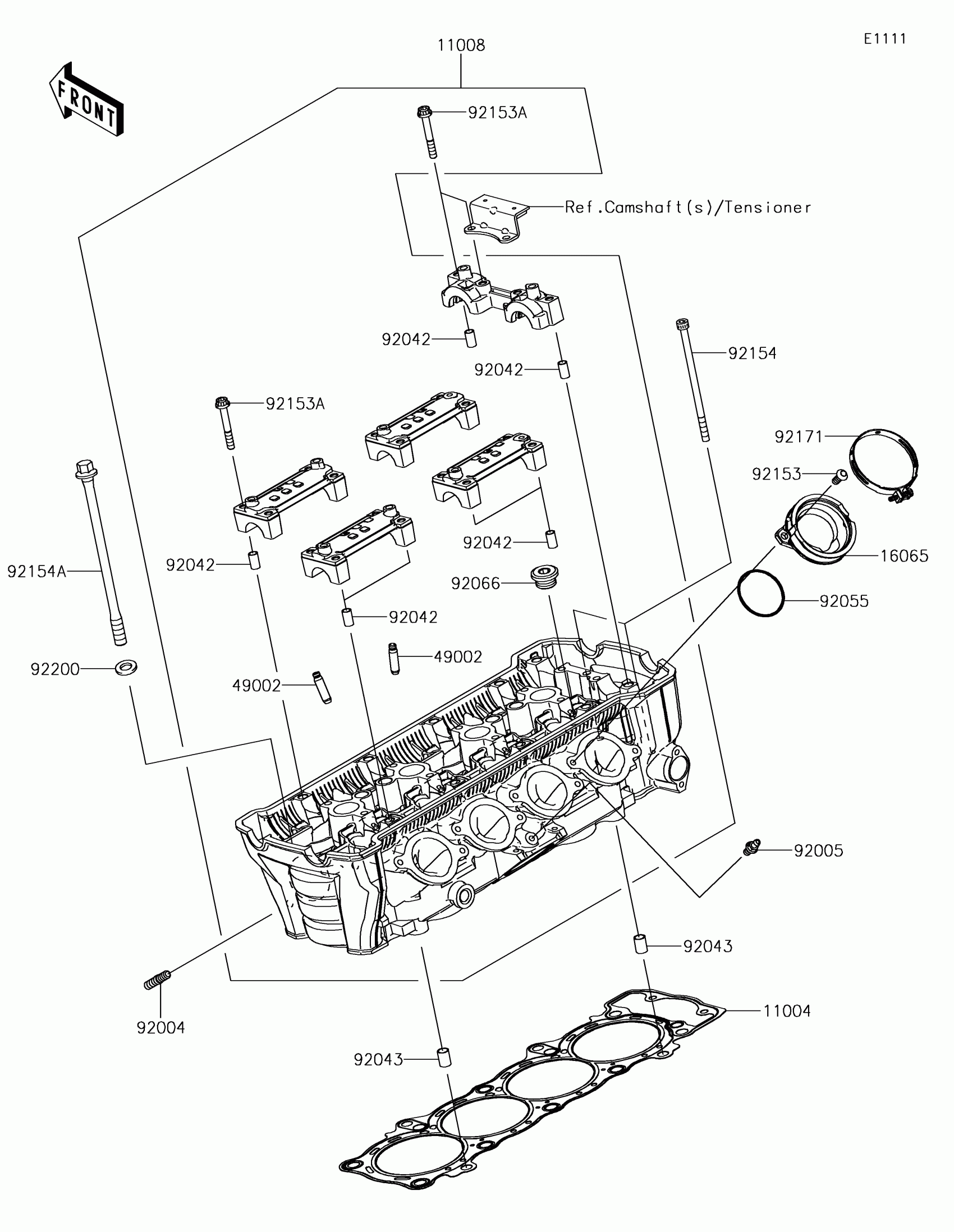

Kawasaki VERSYS® 1000 LT Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0084

$106.21

11008

HEAD-COMP-CYLINDER

11008-0838

$2,756.84

16065

HOLDER-CARBURETOR

16065-0067

$41.16

49002

GUIDE-VALVE

49002-0009

$30.60

92004

STUD

92004-0050

$3.19

92005

FITTING

92005-1273

$21.68

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,42X1.9

92055-1536

$1.96

92066

PLUG,18X10

92066-0016

$12.31

92153

BOLT,TORX,6X14

92153-0406

$1.98

92153A

BOLT,SOCKET,6X45

92153-0656

$1.81

92154

BOLT,SOCKET,6X115

92154-0205

$7.92

92154A

BOLT,FLANGED,10X165

92154-2638

$17.66

92171

CLAMP,60MM

92171-0729

$17.39

92200

WASHER,10.2X18.4X1.8

92200-1691

$3.21
