2014 Kawasaki Versys® 1000 (European) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2014 Kawasaki Versys® 1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

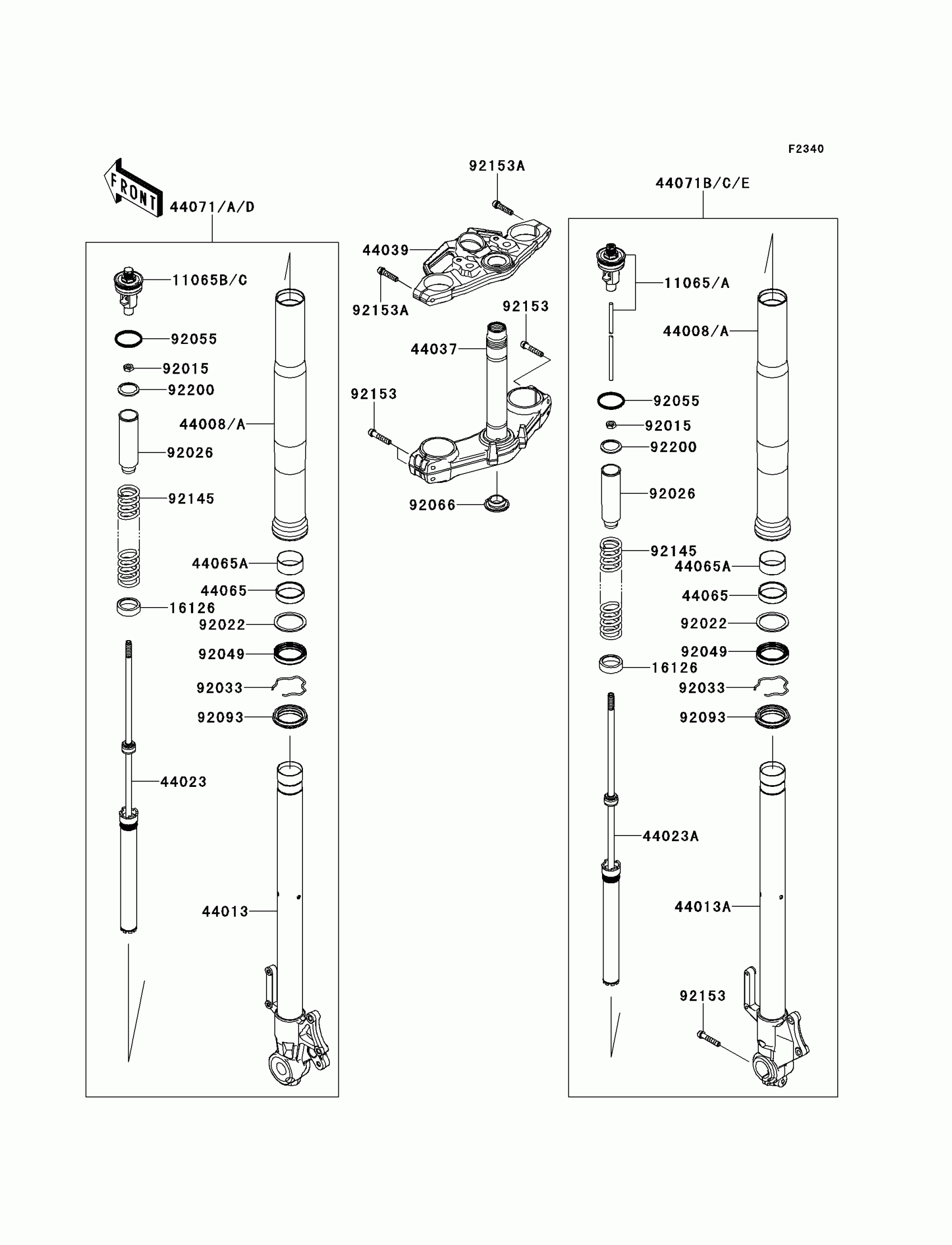

2014 Kawasaki Versys® 1000 (European) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065A

CAP,K.GOLD

11065-0745-828

1
Out of stock

11065C

CAP,K.GOLD

11065-0759-828

1
Out of stock

16126

VALVE

16126-0708

1
Out of stock

44008A

PIPE-FORK OUTER,K.GOLD

44008-0057-828

1
Out of stock

44013

PIPE-FORK INNER,LH,F.M.GRAY

44013-0191-26M

1
Out of stock

44013A

PIPE-FORK INNER,RH,F.M.GRAY

44013-0192-26M

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0103

1
Out of stock

44023A

CYLINDER-SET-FORK

44023-0104

1
Out of stock

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0132-18R

1
Out of stock

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0117-18R

1
Out of stock

44065

BUSHING-FRONT FORK,SLIDE

44065-0056

1
Out of stock

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1142

1
Out of stock

44071D

DAMPER-ASSY,FORK,LH,A.BLACK

44071-0869-39Y

1
Out of stock

44071E

DAMPER-ASSY,FORK,RH,A.BLACK

44071-0870-39Y

1
Out of stock

92015

NUT

92015-1795

1
Out of stock

92022

WASHER

92022-1299

1
Out of stock

92026

SPACER,FORK

92026-0045

1
Out of stock

92033

RING-SNAP

92033-1077

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

1
Out of stock

92055

RING-O

92055-0145

1
Out of stock

92066

PLUG

92066-0032

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1480

1
Out of stock

92145

SPRING

92145-0891

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-0506

1
Out of stock

92153A

BOLT,SOCKET,8X35

92153-0907

1
Out of stock

92200

WASHER

92200-0085

1
Out of stock
