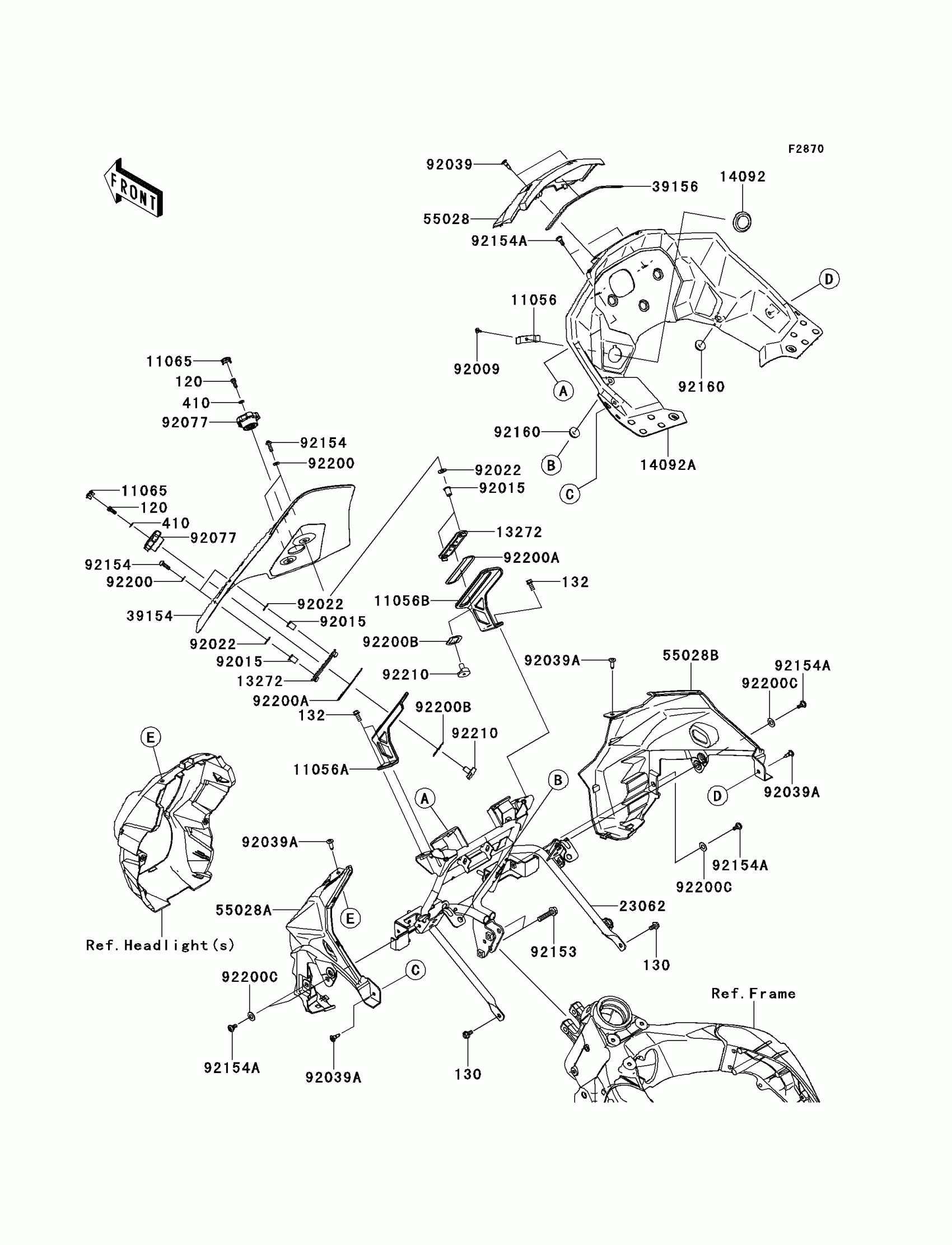

Kawasaki VERSYS® 1000 (European) Cowling(Upper) Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120CA0512

$1.19

130

BOLT-FLANGED,6X12

130BA0612

$1.25

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

410

WASHER-PLAIN-SMALL

410AA0500

$0.47

11056

BRACKET

11056-0373

$3.29

11056A

BRACKET,WINDSHIELD,LH

11056-1661

$38.29

11056B

BRACKET,WINDSHIELD,RH

11056-1662

$38.29

11065

CAP,KNOB

11065-0734

$4.02

13272

PLATE,ADJUSTABLE SCREEN

13272-1180

$10.36

14092

COVER,DC SOCKET

14092-0214

$5.71

14092A

COVER,METER,F.BLACK

14092-0982-6Z

Unavailable

23062

BRACKET-COMP

23062-0758

Unavailable

39154

WINDSHIELD

39154-0319

$200.11

39156

PAD,UPP COWLING,CNT

39156-0858

$3.81

55028

COWLING,UPP,CNT,F.BLACK

55028-0390-6Z

$30.15

55028A

COWLING,UPP,LH,F.BLACK

55028-0424-6Z

Unavailable

55028B

COWLING,UPP,RH,F.BLACK

55028-0425-6Z

Unavailable

92009

SCREW,TAPPING,4X8

92009-1155

$2.42

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6X16X1

92022-1818

$2.25

92039

RIVET

92039-0051

$3.54

92039A

RIVET

92039-0068

$2.09

92077

KNOB,ADJUSTERS

92077-0703

$12.22

92153

BOLT,SOCKET,8X35

92153-0419

$2.63

92154

BOLT,SOCKET,5X20

92154-0210

$1.54

92154A

BOLT,SOCKET,5X14

92154-0427

$2.68

92160

DAMPER

92160-1613

$2.84

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER

92200-0801

$3.52

92200B

WASHER,23.5X32X1

92200-0802

$2.19

92200C

WASHER,8.5X17X0.8

92200-2045

$1.20

92210

NUT,5MM

92210-0757

$33.91
