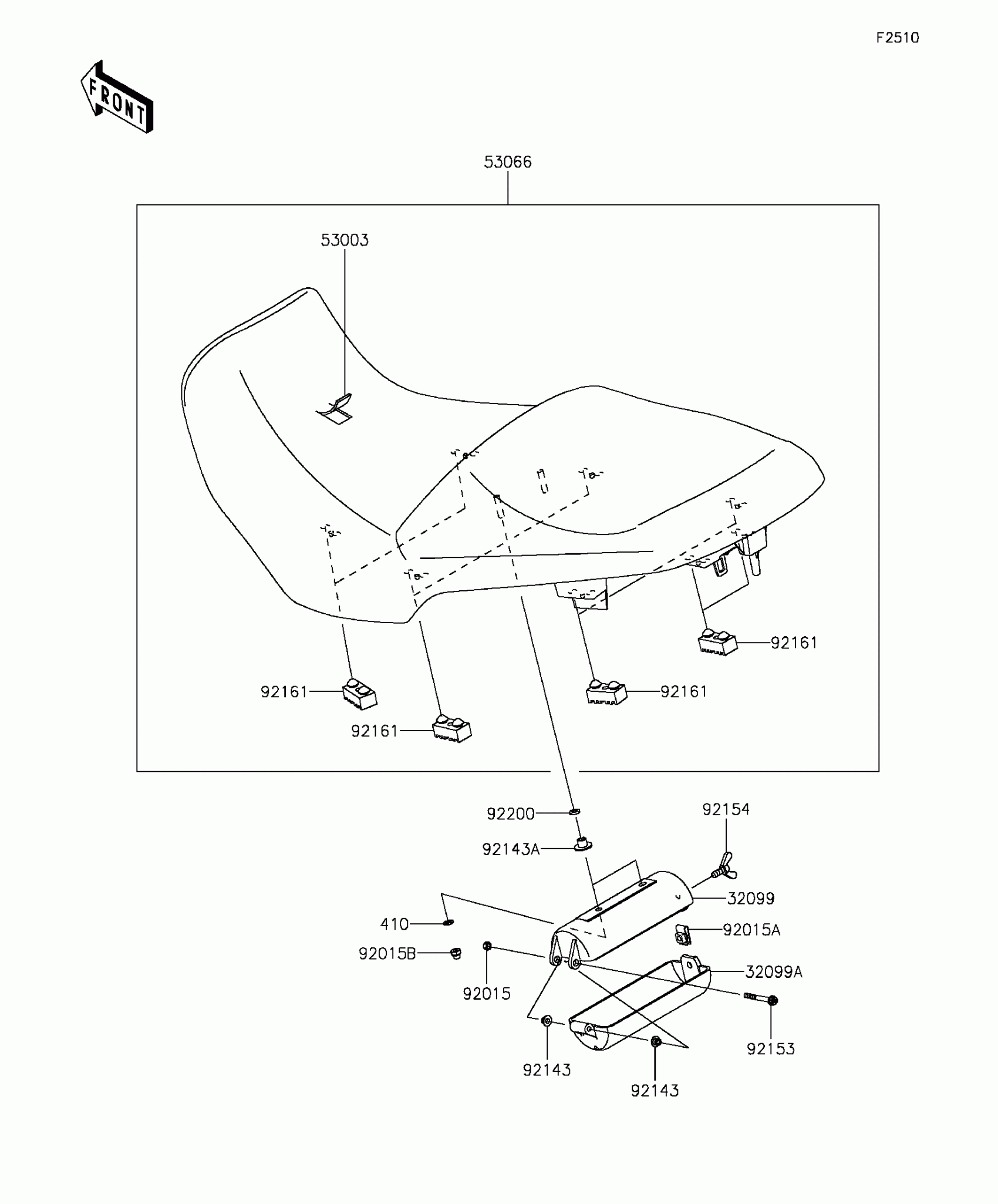

Kawasaki Versys® 1000 ABS Seat Diagram

Description

Price

32099

CASE,TOOL,BODY

32099-1184

$37.06

32099A

CASE,TOOL,CAP

32099-1185

$37.06

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68

53003

LEATHER,SEAT,BLACK

53003-0330-MA

$158.87

53066

SEAT-ASSY,DUAL,BLACK

53066-0492-MA

$419.58

92015

NUT,LOCK,5MM

92015-1221

$4.67

92015A

NUT,6MM

92015-1602

$5.61

92015B

NUT,6MM

92015-2272

$1.92

92143

COLLAR

92143-1234

$3.43

92143A

COLLAR

92143-1962

$4.24

92153

BOLT,ADJUST,5X45

92153-1216

$7.85

92154

BOLT,WING,6X15

92154-1051

$5.29

92161

DAMPER,SEAT

92161-0050

$5.86

92200

WASHER,6.2X12X1.6

92200-0806

$5.46
