2016 Kawasaki Versys® 1000 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

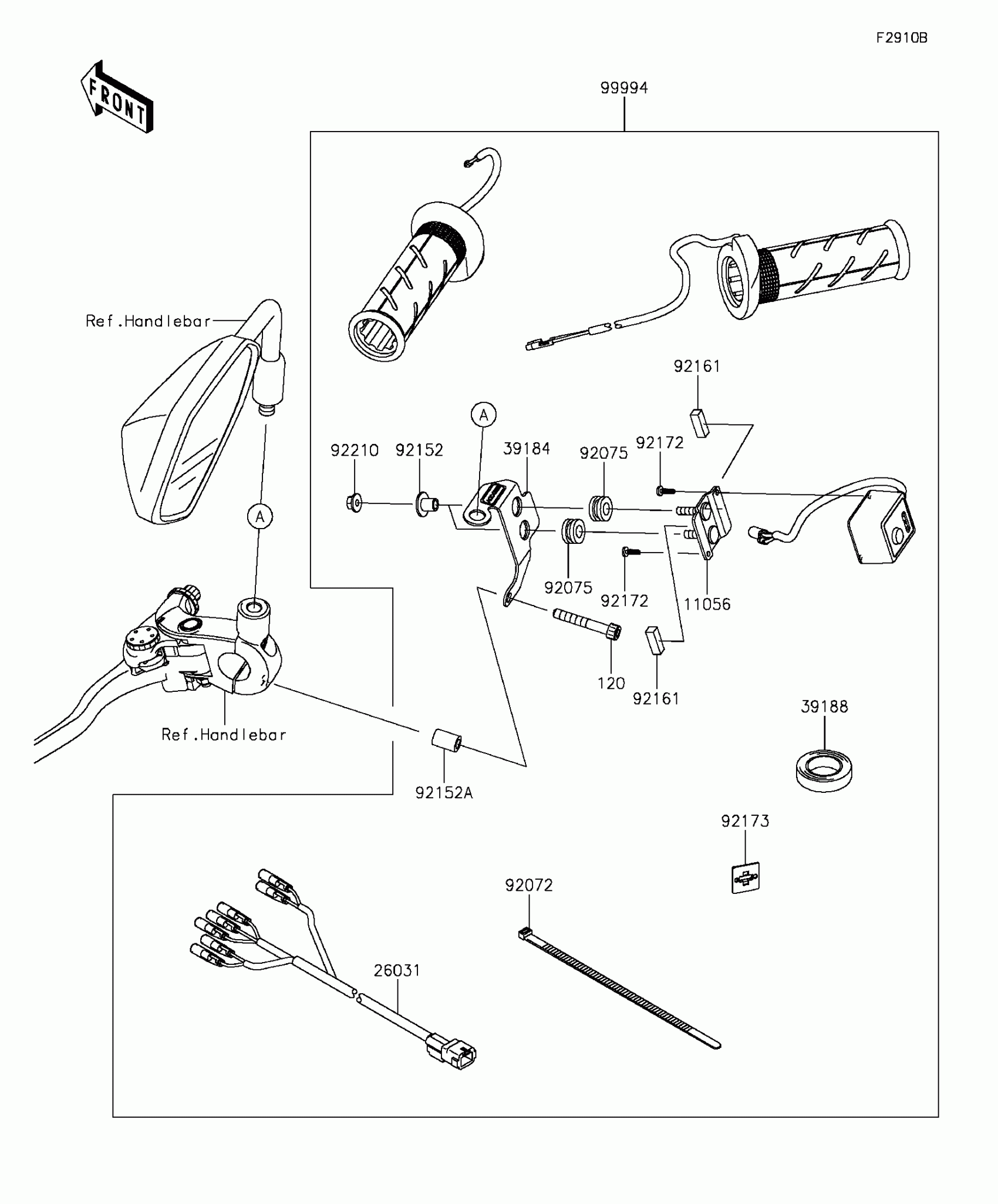

2016 Kawasaki Versys® 1000 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-7296

1
Out of stock

120

BOLT-SOCKET,6X40

120CB0640

1
Out of stock

26031

HARNESS

26031-1851

1
Out of stock

39184

BRACKET-ASSY

39184-0039

1
Out of stock

39188

TAPE,HARNESS

39188-0006

1
Out of stock

92072

BAND,L=100

92072-3875

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92152

COLLAR

92152-0134

1
Out of stock

92152A

COLLAR

92152-1994

1
Out of stock

92161

DAMPER

92161-1756

1
Out of stock

92172

SCREW,TAPPING,3X10

92172-0351

1
Out of stock

92173

CLAMP

92173-0812

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

99994

KIT-ACCESSORY,GRIP-HEATER

99994-0572

1
Out of stock
