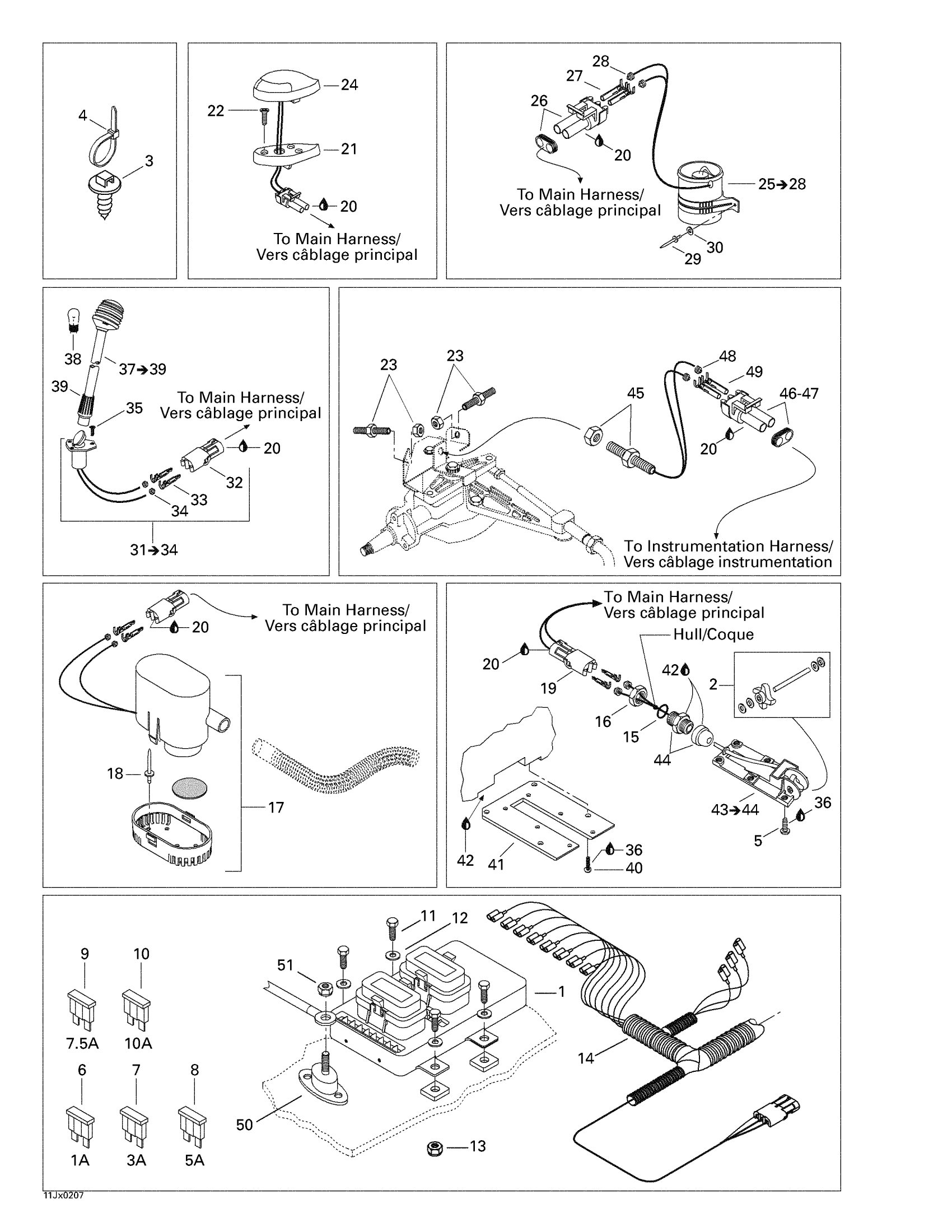

Sea-doo Utopia 185/205, 2002 Electrical Accessories 2 Diagram

#

Description
Price

1

Fuse Block

204470597

Unavailable

2

Paddle Wheel Kit

295500108

Unavailable

3

Mount Dart

293730040

Unavailable

4

Tie-Rap 180 mm

414115200

Unavailable

Tie Wrap 368 mm

293750008

Unavailable

5

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

6

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

7

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

8

Fuse, 5 Amperes | CE

278000344

Unavailable

9

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

10

Fuse, 10 Amperes | North America

278001197

Unavailable

11

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

Phillips Screw M6 x 12

207662560

Unavailable

12

Flat Washer M6, Stainless

234062600

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

Unavailable

14

Harness | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204470624

Unavailable

Harness

204470707

Unavailable

Harness

204470727

Unavailable

15

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

16

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

17

Bilge Pump

204471431

Unavailable

18

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

19

Female Housing, 2 Circuits

278000217

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

23

Low Speed Control Actuator

204470632

Unavailable

24

Front Lamp

204470372

Unavailable

25

Fan Ass'y | Includes 44 to 47

204470108

Unavailable

26

Male Connector, 2 Circuits

278000220

Unavailable

27

Female Terminal

278000223

Unavailable

28

Wire Seal

278000218

Unavailable

29

Pop Rivet 3/16"

293150008

Unavailable

30

Flat Washer 5 mm, Stainless

234052600

Unavailable

31

REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.

204470642

Unavailable

32

Female Housing, 2 Circuits

278000217

Unavailable

33

Male Terminal | XT Models

278000222

Unavailable

34

Wire Seal

278000218

Unavailable

35

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

36

Loctite 243, 10 ml

293800060

Unavailable

37

REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28

204470625

Unavailable

38

Bulb

204470053

Unavailable

39

COLLAR - Call your local BRP dealership

204470350

Unavailable

40

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.94

41

Sensor Support

204470538

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

Unavailable

43

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

44

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

45

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

46

Female Terminal Housing

204470634

Unavailable

47

Terminal Support

204470635

Unavailable

48

Wire Seal

204470641

Unavailable

49

Female Terminal

278001481

Unavailable

50

Ground Post

204470715

Unavailable

51

Elastic Stop Nut

204410032

Unavailable
