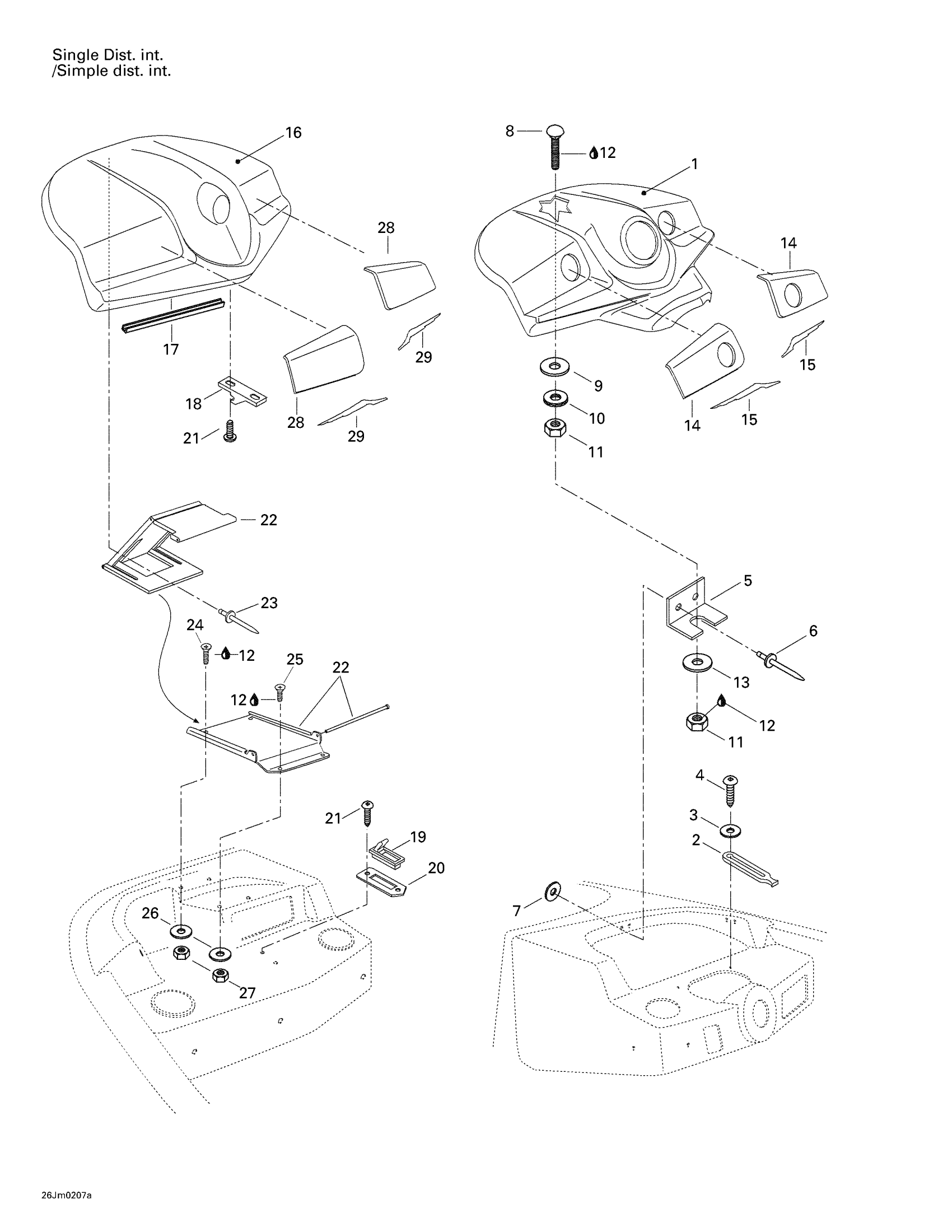

Sea-doo Utopia 185/205, 2002 Front Console Glove Box 1 Diagram

#

Description
Price

1

Dashboard | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204470608

Unavailable

2

Windshield Latch

570023800

$3.58

3

Flat Washer 4 mm, Stainless

234042600

Unavailable

4

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

5

Dash Bracket | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204470644

Unavailable

6

Pop Rivet 3/16"

293150043

Unavailable

7

Flat Washer 3/16" | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

711200039

Unavailable

8

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

9

Flat Washer M8, Stainless

234080600

Unavailable

10

External Serrated Lock Washer 6 mm

234461608

Unavailable

11

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

12

Loctite 243, 10 ml

293800060

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

Unavailable

14

Woodgrain Panel L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071212

Unavailable

Woodgrain Panel R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071213

Unavailable

15

Dash Decal L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204900924

Unavailable

Dash Decal R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204900925

Unavailable

16

Glove Box | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071059

Unavailable

17

Rubber Seal (Meter) | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204130011

Unavailable

18

Latch Keeper | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071359

Unavailable

19

Glove Box Latch | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071360

Unavailable

20

Latch Plate | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071309

Unavailable

21

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

22

Slide Hinge | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071332

Unavailable

23

Pop Rivet 3/16"

293150005

Unavailable

24

SCREW M4 X 30 - Call your local BRP dealership

208443070

$1.08

25

Phillips Screw M4 X 16

208641660

Unavailable

26

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

27

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

28

Woodgrain Panel L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071210

Unavailable

Woodgrain Panel R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071211

Unavailable

29

Glove Box Decal L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204900922

Unavailable

Glove Box Decal R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204900923

Unavailable
