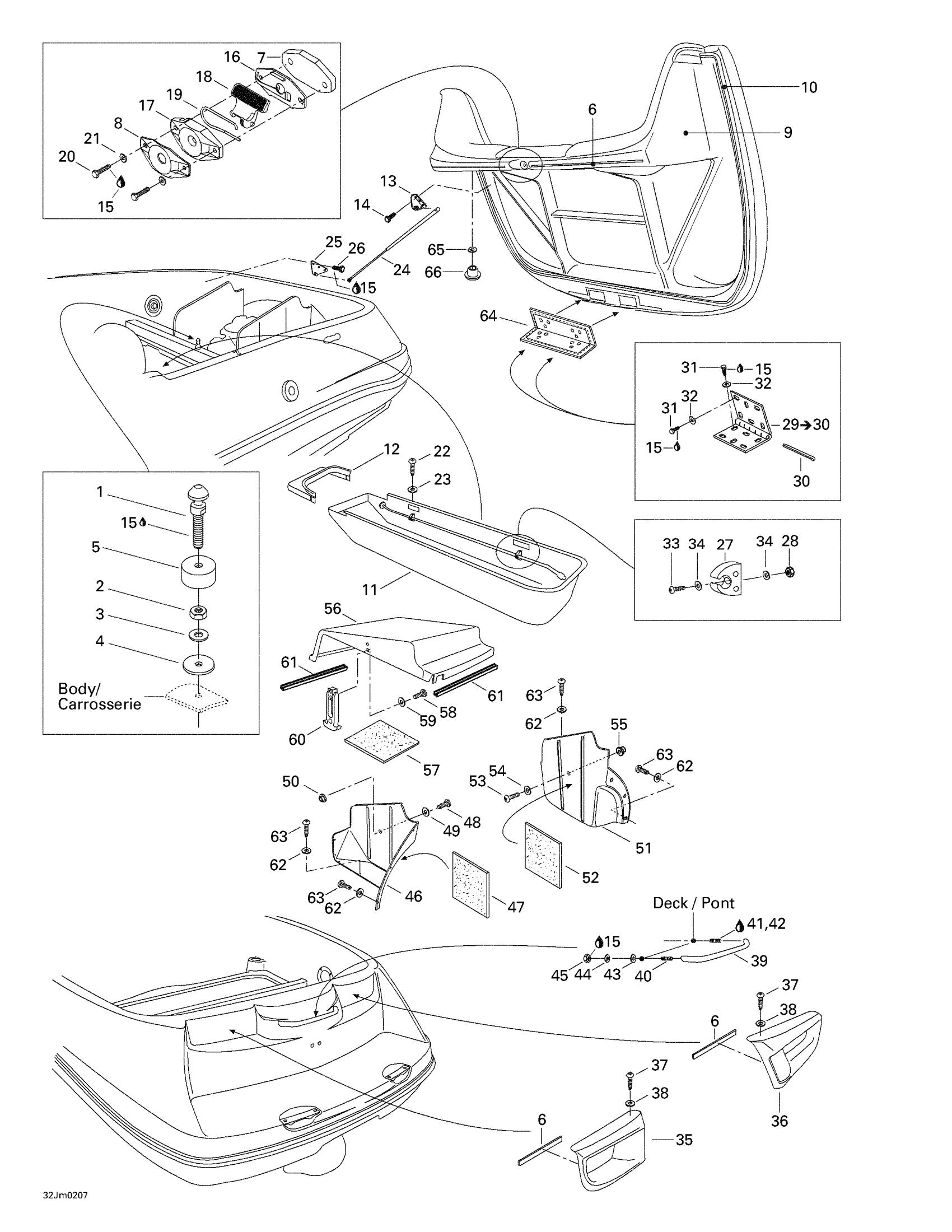

Sea-doo Utopia 185/205, 2002 Engine Compartment Diagram

#

Description
Price

1

Latch Stud

204100065

Unavailable

2

Hex. Jam Nut M10

232100600

$1.85

3

Flat Washer 10 mm, Stainless

234002600

$1.85

4

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

5

Rubber Pad

293830025

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$118.27

7

SHIM - Call your local BRP dealership

269700015

$12.91

8

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

9

Engine Cover

204071478

Unavailable

10

Seal Tray 1000Mm Long

219704368

$12.91

11

Rear Seat Storage

204071177

Unavailable

12

Cap End

204071329

Unavailable

13

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

14

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

$1.20

15

Loctite 243, 10 ml

293800060

$20.77

16

Latch Ass'y

269700109

$20.12

17

Latch Ass'y

269700109

$20.12

18

Latch Ass'y

269700109

$20.12

19

Latch Spring

269700017

$7.27

20

Hex. Screw M6 X 50

207065060

$1.85

21

Stainless Flat Washer M6

234061600

$0.25

22

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

$0.86

23

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

24

Air Shock, 90 Lb

204071087

Unavailable

25

Shock Support

291000615

Unavailable

26

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

$1.72

27

Pole Support

291000642

Unavailable

28

Elastic Stop Nut M4

232541600

$0.92

29

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

30

Cotter Pin M2.5 X 12

204070205

Unavailable

31

Hex. Screw M6 X 25

207162560

$1.22

32

Stainless Flat Washer M6

234061600

$0.25

33

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

$1.38

34

Flat Washer 4 mm

234040600

$0.46

35

Vent Cover Ass'y (Port Side) (Single dis | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071365

Unavailable

Vent Cover Ass’y, Port Side

204071500

Unavailable

36

Vent Cover Ass'y (Starboard) (Single dis | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071366

Unavailable

Vent Cover Ass’y, Starboard

204071502

Unavailable

37

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

$0.86

38

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

39

GRAB HANDLE - Call your local BRP dealership

204071122

Unavailable

40

Threaded Stud

204100031

Unavailable

41

Was 293800041 Loctite Primer 7649

219704458

$41.99

42

Loctite 271, 10 ml

293800005

$20.77

43

Flat Washer 10 mm, Stainless

234002600

$1.85

44

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

45

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

46

Bulkhead Panel (Port Side)

204071079

Unavailable

47

Sound Barrier (Port Side)

204071399

Unavailable

48

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

49

Flat Washer 5 mm, Stainless

234052600

$0.64

50

Strap Retainer

204071384

Unavailable

51

Bulkhead Panel (Starboard)

204071230

Unavailable

52

Sound Barrier (Starboard)

204071401

Unavailable

53

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

54

Flat Washer 5 mm, Stainless

234052600

$0.64

55

Strap Retainer

204071384

Unavailable

56

Bulkhead Cap | 185

204071229

Unavailable

57

Sound Barrier For Cap

204071402

Unavailable

56

Bulkhead Cap

204071732

Unavailable

58

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

59

Flat Washer 5 mm, Stainless

234052600

$0.64

60

Rubber Latch

204071330

Unavailable

61

Seal Tray 1000Mm Long

219704368

$12.91

62

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

63

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

64

Hinge Cover

204611845

Unavailable

Hinge Cover (Utopia 185)

204611608

Unavailable

65

Flat Washer M6, Stainless

234062600

$0.64

66

Black Plug

291000279

$5.99
