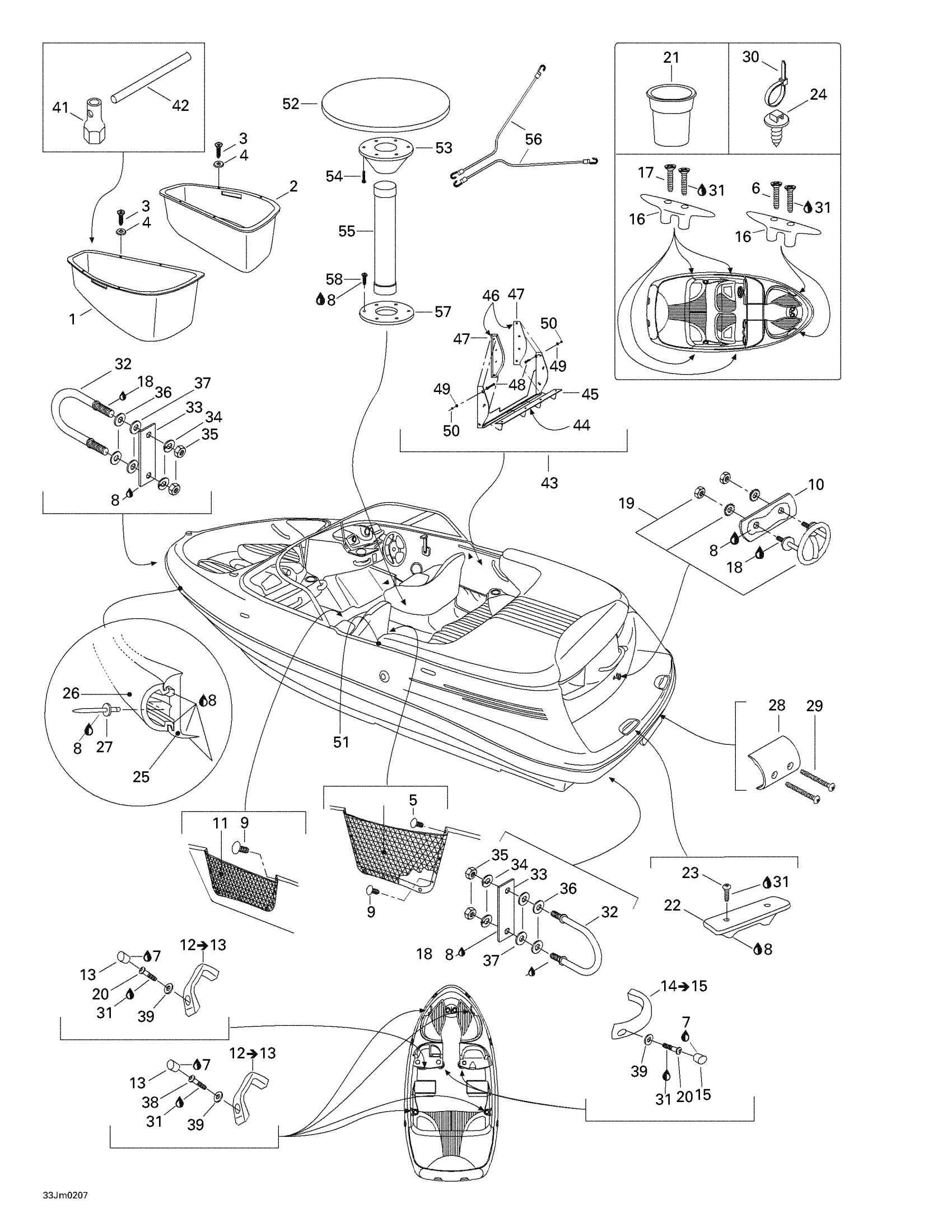

Sea-doo Utopia 185/205, 2002 Body And Accessories 1 Diagram

#

Description
Price

1

Storage Tray (Port Side)

204071075

$138.43

2

Storage Tray (Starboard)

204071076

Unavailable

3

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

$0.86

4

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

5

Black, Dart

414644300

$0.78

6

Socket Head Screw M6 X 70

205367060

Unavailable

7

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

Black, Dart

293730006

$0.81

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Front Storage Net, Port Side

204611529

Unavailable

Front Storage Net, Starboard

204611326

Unavailable

12

GRIP HANDLE, WHITE - Call your local BRP dealership | Includes 20a to 20b

204071182

Unavailable

13

Snap Cap

204071195

Unavailable

14

Grip Handle (White) (Single/dist. int.) | Includes 14 - 15. UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204071318

Unavailable

15

Snap Cap

204071195

Unavailable

16

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

17

Socket Head Screw M6 x 55

205365560

Unavailable

18

Loctite 271, 10 ml

293800005

$20.77

19

Ski Tow Hook

204070206

Unavailable

20

Socket Screw M6 X 40

205464060

$1.85

21

CUP HOLDER - Call your local BRP dealership | STD

291000619

$12.68

22

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

23

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

$1.63

24

Mount Dart

293730040

$0.86

25

Black, Bumper

204050136

Unavailable

26

Black, Trim - Call your local BRP dealership

204050137

Unavailable

Bumper Trim, Black

204050463

Unavailable

27

Pop Rivet 3/16"

293150013

$1.11

28

BUMPER COVER, BLACK - Call your local BRP dealership

204050031

Unavailable

29

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

30

Tie-Rap 180 mm

414115200

$0.09

31

Loctite 243, 10 ml

293800060

$20.77

32

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

33

RETAINING PLATE - Call your local BRP dealership

291000307

$11.06

34

Lock Washer 8 mm, Stainless

234181601

$0.46

35

Hex. Nut M8

232081600

$1.22

36

Flat Washer M8.5 x 18

293050001

$1.29

37

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

38

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership

205963060

Unavailable

39

Stainless Flat Washer M6

234061600

$0.25

40

Rear Storage Net, Starboard

204611327

Unavailable

41

Socket Wrench

204630050

Unavailable

40

Rear Storage Net, Port Side

204611530

Unavailable

42

Steel Bar

204630051

Unavailable

43

Starboard Side Storage (Utopia 205)

204071516

Unavailable

Portside Side Storage (Utopia 205)

204071523

Unavailable

44

Storage Floor Liner (Utopia 205)

204071518

Unavailable

45

Storage Carpet (Utopia 205)

204071520

Unavailable

46

Side Storage Liner (Utopia 205)

204071517

Unavailable

47

Side Storage Carpet (Utopia 205)

204071519

Unavailable

48

Hex. Screw M6 X 70

207067060

$4.62

49

Flat Washer M6, Stainless

234062600

$0.64

50

Hex. Elastic Stop Nut M6

232561600

$0.92

51

Deck/Storage Carpet

204071534

Unavailable

52

Cockpit Table

204070632

$260.74

53

TABLE MOUNT - Call your local BRP dealership | Challenger S

204071315

Unavailable

54

TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S

209951960

Unavailable

55

TABLE POST, LARGE - Call your local BRP dealership | Challenger S

204070634

Unavailable

56

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable

57

TABLE BASE - Call your local BRP dealership

204071209

Unavailable

58

Phillips Tapping Screw M4.2 X 32

209943260

$1.45
