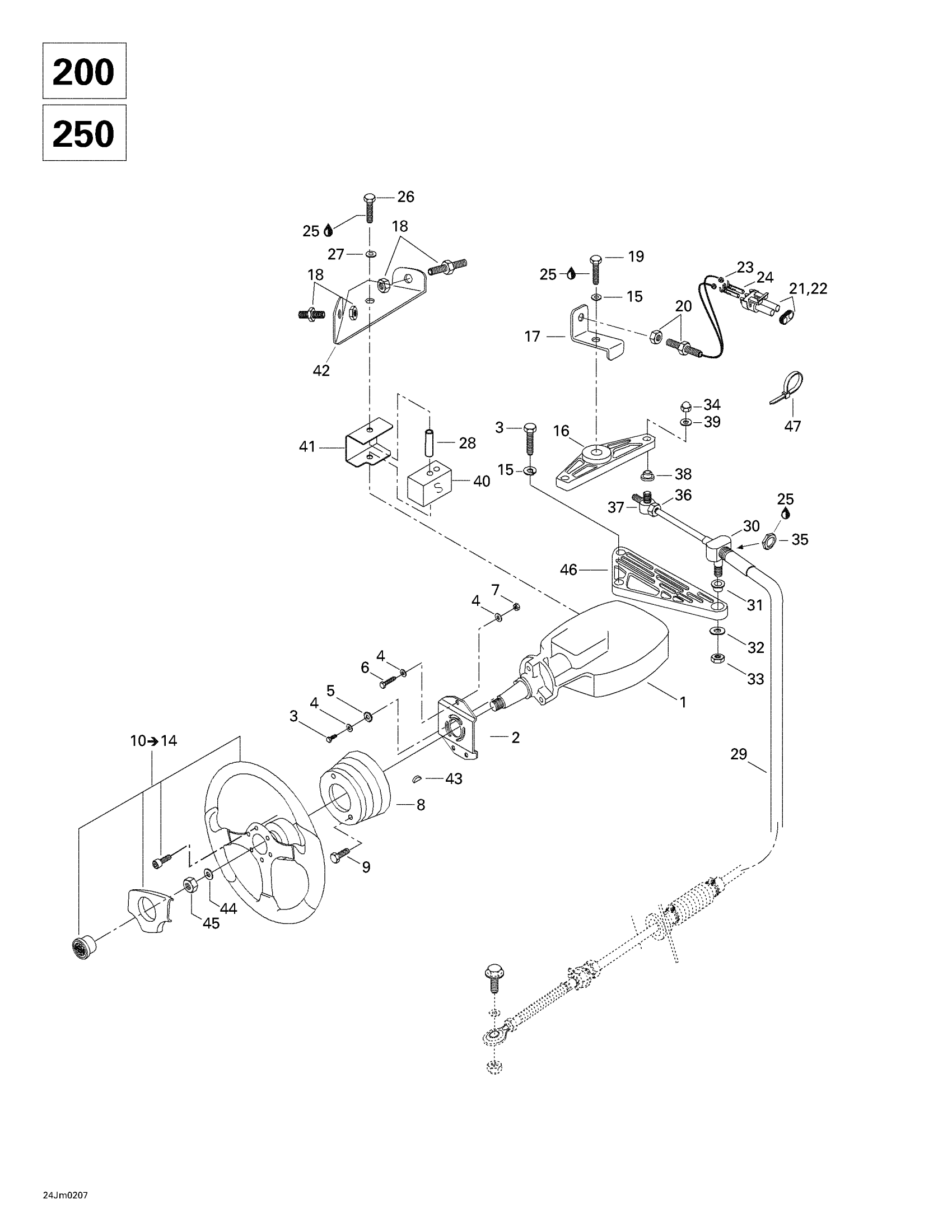

Sea-doo Utopia 185/205, 2002 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Steering (185 Single dist. int.) | Includes 10 - 14. UTOPIA 200 OPTIMAX.

204390282

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Cap

204390327

Unavailable

4

Center Ring

204390328

Unavailable

5

SCREW PACK - Call your local BRP dealership

204390329

Unavailable

6

Nylon Hub

204390330

Unavailable

7

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.64

9

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

$6.23

10

Cable Support | CHALLENGER 1800 (5774).

204390232

Unavailable

11

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

$10.78

12

Bumper

204390246

Unavailable

13

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

14

Low Speed Control Cable | UTOPIA 210. UTOPIA 240 EFI.

204390188

Unavailable

15

Lower Clip | CHALLENGER 1800 (5774).

204390283

Unavailable

Lower Clip

204390271

Unavailable

16

Pop RIvet 1/8 X ,375

293150285

$0.23

17

Bumper Support

204390245

Unavailable

18

FLAT WASHER - Call your local BRP dealership

211200019

$1.14

19

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14

20

Hex. Elastic Nut M5 | X

232551600

$0.91

21

Flat Washer 10 mm, Stainless

234001600

$0.91

22

Cable Support

204390125

Unavailable

23

Cable Cover | UTOPIA 240 EFI.

204390269

$59.77

24

Loctite 243, 10 ml

293800060

$20.77

25

Hex. Elastic Stop Nut M6

232561600

$0.92

26

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

27

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

28

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

29

Stainless Flat Washer M6

234061600

$0.25

30

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

31

Support

277000383

Unavailable

32

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

33

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

$1.78

34

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

35

PIVOT - Call your local BRP dealership

277000456

Unavailable

36

Lock Washer 1/4”

211200025

$1.26

37

Flat Washer M5, Stainless

234051600

$0.64

38

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

39

Hex. Screw M6 X 25

207162560

$1.22

40

Flanged Bushing

293350014

$12.08

41

HELM ARM - Call your local BRP dealership

204390250

Unavailable

42

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

43

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

$0.74

44

Helical Lock Washer M5

234151601

$0.91

45

External Serrated Lock Washer 6 mm

234461608

$0.92

46

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

$1.60

47

BUSHING - Call your local BRP dealership

293350012

$1.94

48

Helical Lock Washer M5

234151601

$0.91

49

Cable Attachment | CHALLENGER 1800 (5774).

204390234

Unavailable

50

CABLE RETAINER (LOW SPEED) - Call your local BRP dealership | UTOPIA 240 EFI.

204390268

Unavailable

51

Spacer

204390057

Unavailable

52

Adjustment Block

204390056

Unavailable

53

Hex. Screw M5 X 35

207153560

Unavailable

54

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

$1.72

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Cable Support | CHALLENGER 1800 (5774).

204390233

Unavailable

57

Ring Retainer | UTOPIA 240 EFI.

204390180

Unavailable

58

Support Cable (Low Speed) | UTOPIA 240 EFI.

204390181

Unavailable

59

Loctite 243, 10 ml

293800060

$20.77

60

Tie-Rap 180 mm

414115200

$0.09

61

Stopper - Rubber | UTOPIA 240 EFI.

204390255

Unavailable

62

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

63

Hex. Screw M6 X 30

207163060

$1.25

64

STEERING CABLE - Call your local BRP dealership

204390212

Unavailable

STEERING CABLE ASS'Y - Call your local BRP dealership

204390172

Unavailable

65

Bushing

204130004

Unavailable

66

Cam Switch | CHALLENGER 1800 (5701).

204390272

Unavailable
