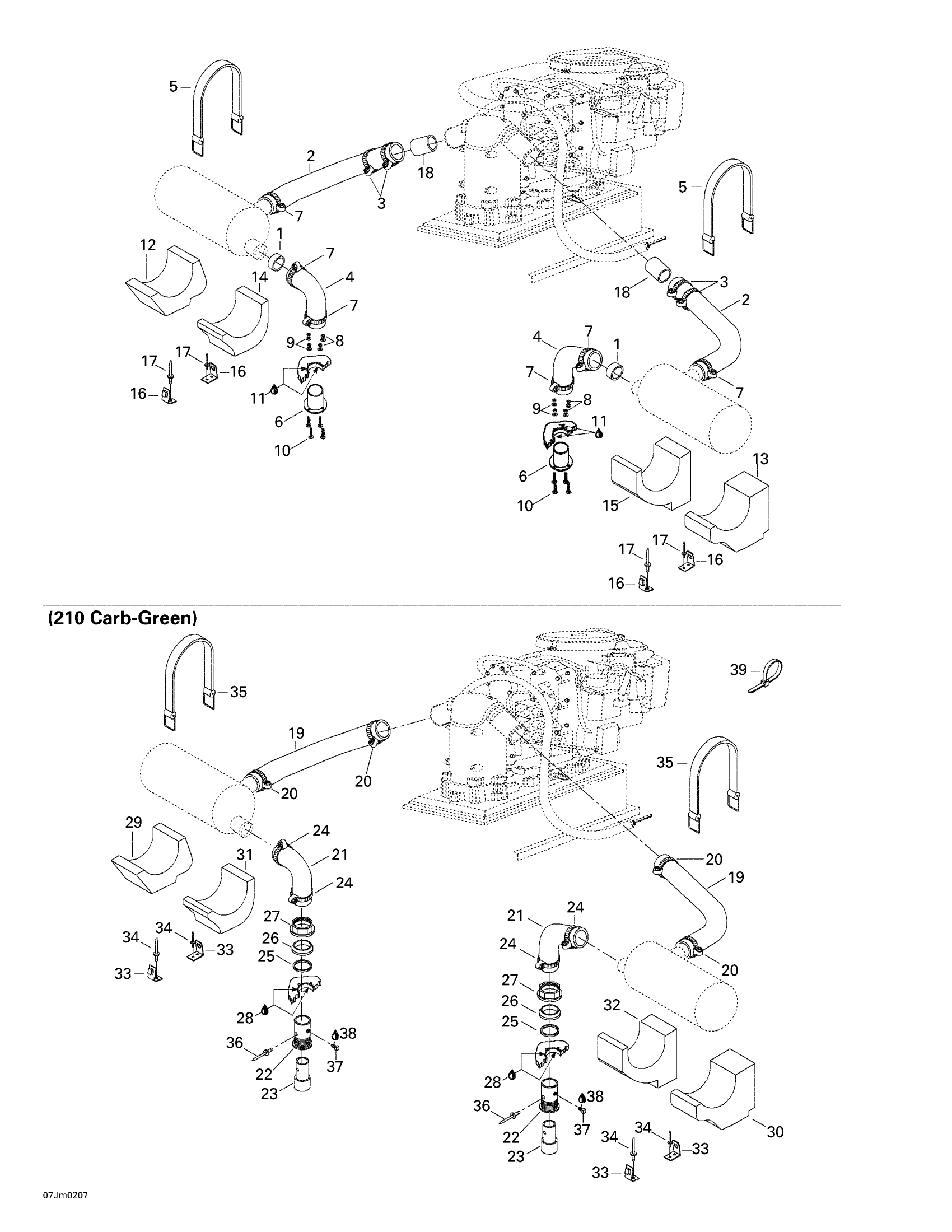

Sea-doo Utopia 185/205, 2002 Exhaust System Diagram

#

Description
Price

1

Exhaust Spacer

204340251

Unavailable

2

Exhaust Hose

204340306

Unavailable

Exhaust Hose | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204340305

Unavailable

3

Tridon Clamp

293650064

$7.80

4

Exhaust Hose | UTOPIA 240 EFI.

204340315

Unavailable

Exhaust Hose

204340368

Unavailable

Exhaust Hose | UTOPIA 250 OPTIMAX.

204340374

Unavailable

5

STRAP - Call your local BRP dealership

293850022

Unavailable

6

Exhaust Outlet Ass’Y | Includes 7 to 10

204340322

Unavailable

7

Tridon Clamp

293650112

$11.98

8

Hex. Elastic Stop Nut M6

232561600

$0.92

9

Stainless Flat Washer M6

234061600

$0.25

10

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

$1.28

11

Silicone Sealant 51388, 300 ml

296000309

$35.72

12

Outer Muffler Support, Port Side

204340307

Unavailable

Muffler Inner Support, Port Side

204340370

Unavailable

13

Muffler Outer Support (Starboard) | UTOPIA 200 OPTIMAX. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX.

204340308

Unavailable

Outer Muffler Support, Starboard

204340371

Unavailable

14

Inner Muffler Support, Port Side

204340372

Unavailable

Muffler Inner Support (Port Side) | UTOPIA 210. UTOPIA 240 EFI.

204340309

Unavailable

Muffler Inner Support (Port Side) | UTOPIA 200 OPTIMAX. UTOPIA 240 EFI.

204340379

Unavailable

Outer Muffler Support, Port Side

204340369

Unavailable

15

Inner Muffler Support, Starboard

204340373

Unavailable

Muffler Inner Support (Starboard) | UTOPIA 200 OPTIMAX. UTOPIA 240 EFI.

204340381

Unavailable

Inner Muffler Support

204340383

Unavailable

Muffler Inner Support (Starboard) | UTOPIA 210. UTOPIA 240 EFI.

204340310

Unavailable

16

Strap Clip 90°

204060017

Unavailable

17

Pop Rivet 3/16"

293150008

$0.40

18

Exhaust Hose Insert

204340326

Unavailable

19

Exhaust Hose | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204340305

Unavailable

20

Tridon Clamp

293650064

$7.80

21

Exhaust Hose | UTOPIA 210.

204340281

Unavailable

22

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

23

Extension Exhaust Outlet | CHALLENGER 1800 (5774).

204340130

Unavailable

24

Tridon Clamp

293650112

$11.98

25

GASKET - Call your local BRP dealership

293250041

$7.85

26

STABILIZING WASHER - Call your local BRP dealership

274000225

$6.42

27

Nut 72 mm

274000224

$12.17

28

Silicone Sealant 51388, 300 ml

296000309

$35.72

29

Outer Muffler Support, Port Side

204340307

Unavailable

30

Muffler Outer Support (Starboard) | UTOPIA 200 OPTIMAX. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX.

204340308

Unavailable

31

Muffler Inner Support (Port Side) | UTOPIA 210. UTOPIA 240 EFI.

204340309

Unavailable

32

Muffler Inner Support (Starboard) | UTOPIA 210. UTOPIA 240 EFI.

204340310

Unavailable

33

Strap Clip 90°

204060017

Unavailable

34

Pop Rivet 3/16"

293150008

$0.40

35

STRAP - Call your local BRP dealership

293850022

Unavailable

36

Pop Rivet 3/16" | UTOPIA 210.

293150060

Unavailable

37

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

38

Was 293800013 Loctite 56765

219704454

$65.35

39

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

$4.00
