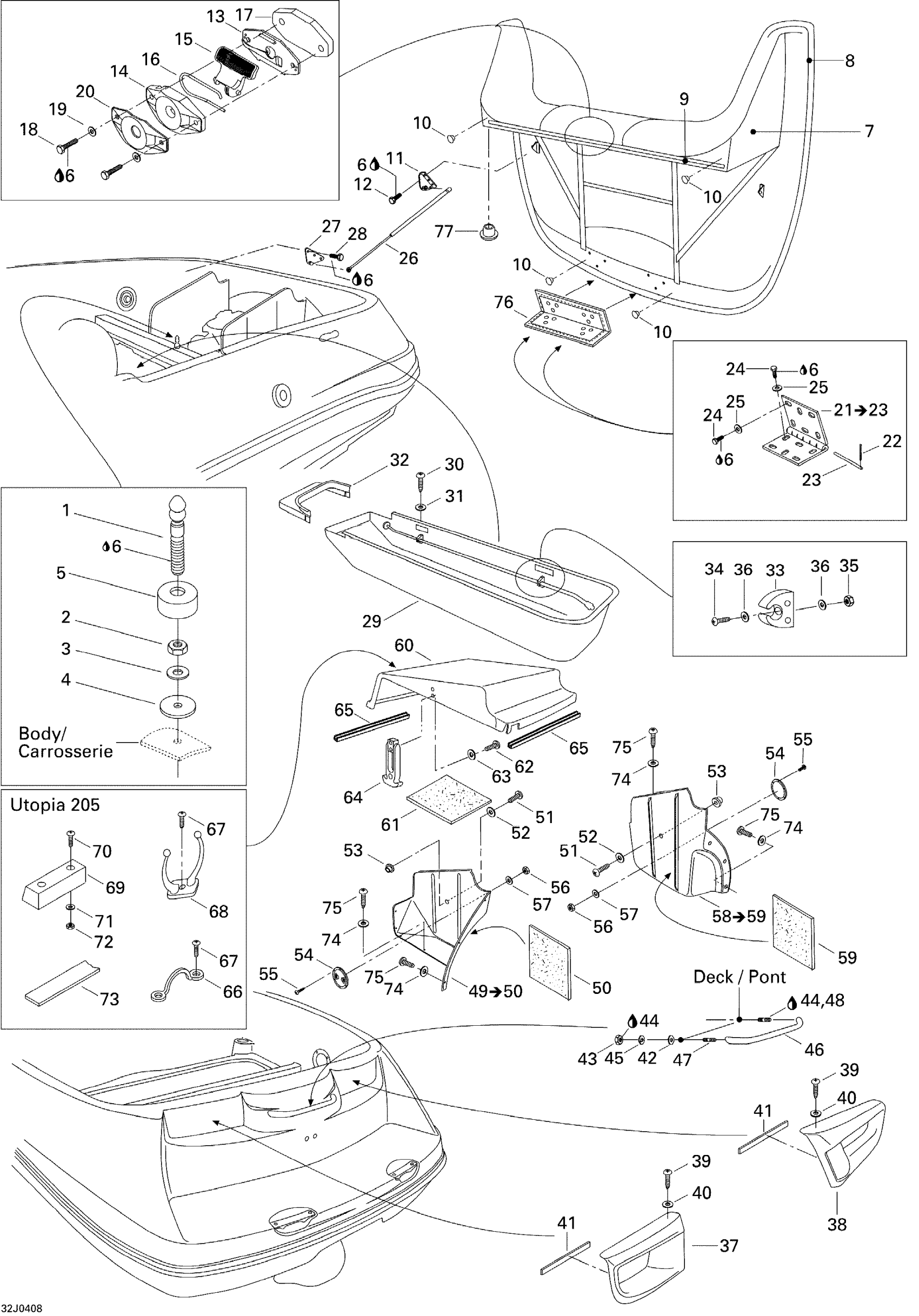

Sea-doo Utopia 185, 2004 Engine Compartment Diagram
#
1
DOUBLE LATCH STUD - Call your local BRP dealership
204130052
Unavailable
2
Hex. Jam Nut M10
232100600
Unavailable
3
Flat Washer 10 mm, Stainless
234002600
Unavailable
4
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
5
Rubber Pad
293830025
Unavailable
6
Loctite 243, 10 ml
293800060
Unavailable
7
Engine Cover
204071980
Unavailable
8
Seal Tray 1000Mm Long
219704368
Unavailable
9
Was 293200017 Neoprene Seal
219704365
Unavailable
10
GROMMET - Call your local BRP dealership
293720017
Unavailable
11
Shock Bracket
204073074
Unavailable
12
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
13
Latch Ass'y
269700109
Unavailable
14
Latch Ass'y
269700109
Unavailable
15
Latch Ass'y
269700109
Unavailable
16
Latch Spring
269700017
Unavailable
17
SHIM - Call your local BRP dealership
269700015
Unavailable
18
Hex. Screw M6 X 50
207065060
Unavailable
19
Stainless Flat Washer M6
234061600
Unavailable
20
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
21
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
22
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
23
Cotter Pin M2.5 X 12
204070205
Unavailable
24
Hex. Screw M6 X 25
207162560
Unavailable
25
Stainless Flat Washer M6
234061600
Unavailable
26
Gas Shock
204071925
Unavailable
27
Shock Bracket
204071673
Unavailable
28
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
29
Rear Seat Storage
204071177
Unavailable
30
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
31
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
32
Cap End
204071329
Unavailable
33
Pole Support
291000642
Unavailable
34
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
35
Elastic Stop Nut M4
232541600
Unavailable
36
Flat Washer 4 mm
234040600
Unavailable
37
Vent Cover Ass’y, Port Side
204071500
Unavailable
38
Vent Cover Ass’y, Starboard
204071502
Unavailable
39
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
40
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
41
Was 293200017 Neoprene Seal
219704365
Unavailable
42
Flat Washer 10 mm, Stainless
234002600
Unavailable
43
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
44
Loctite 271, 10 ml
293800005
Unavailable
45
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
46
GRAB HANDLE - Call your local BRP dealership
204071122
Unavailable
47
Threaded Stud
204100031
Unavailable
48
Was 293800041 Loctite Primer 7649
219704458
Unavailable
49
Bulkhead Panel (Port Side) | Includes 49 to 50
204071826
Unavailable
50
Sound Barrier, Port Side
204071400
Unavailable
51
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
52
Flat Washer 5 mm, Stainless
234052600
Unavailable
53
Strap Retainer
204071384
Unavailable
54
BOTTOM PLATE - Call your local BRP dealership
204070622
Unavailable
55
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
56
Elastic Stop Nut M4
232541600
Unavailable
57
Flat Washer 4 mm, Stainless
234042600
Unavailable
58
Bulkhead Panel, Starboard
204071828
Unavailable
59
Sound Barrier, Port Side
204071400
Unavailable
60
Bulkhead Cap
204071731
Unavailable
60
Bulkhead Cap
204071732
Unavailable
61
Sound Barrier, Port Side
204071400
Unavailable
62
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
63
Flat Washer 5 mm, Stainless
234052600
Unavailable
64
Rubber Latch
204071330
Unavailable
65
Seal Tray 1000Mm Long
219704368
Unavailable
66
Strap Tie
204070234
Unavailable
67
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
68
POLE CLIP - Call your local BRP dealership | Challenger S
204070342
Unavailable
69
LATCH - Call your local BRP dealership
204611805
Unavailable
70
Phillips Screw M5 X 35
208653560
Unavailable
71
Flat Washer 5 mm
234051500
Unavailable
72
Hex. Elastic Nut M5 | X
232551600
Unavailable
73
Seal Tray 1000Mm Long
219704368
Unavailable
74
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
75
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
76
Hinge Cover
204612605
Unavailable
77
Black Plug
291000279
Unavailable
