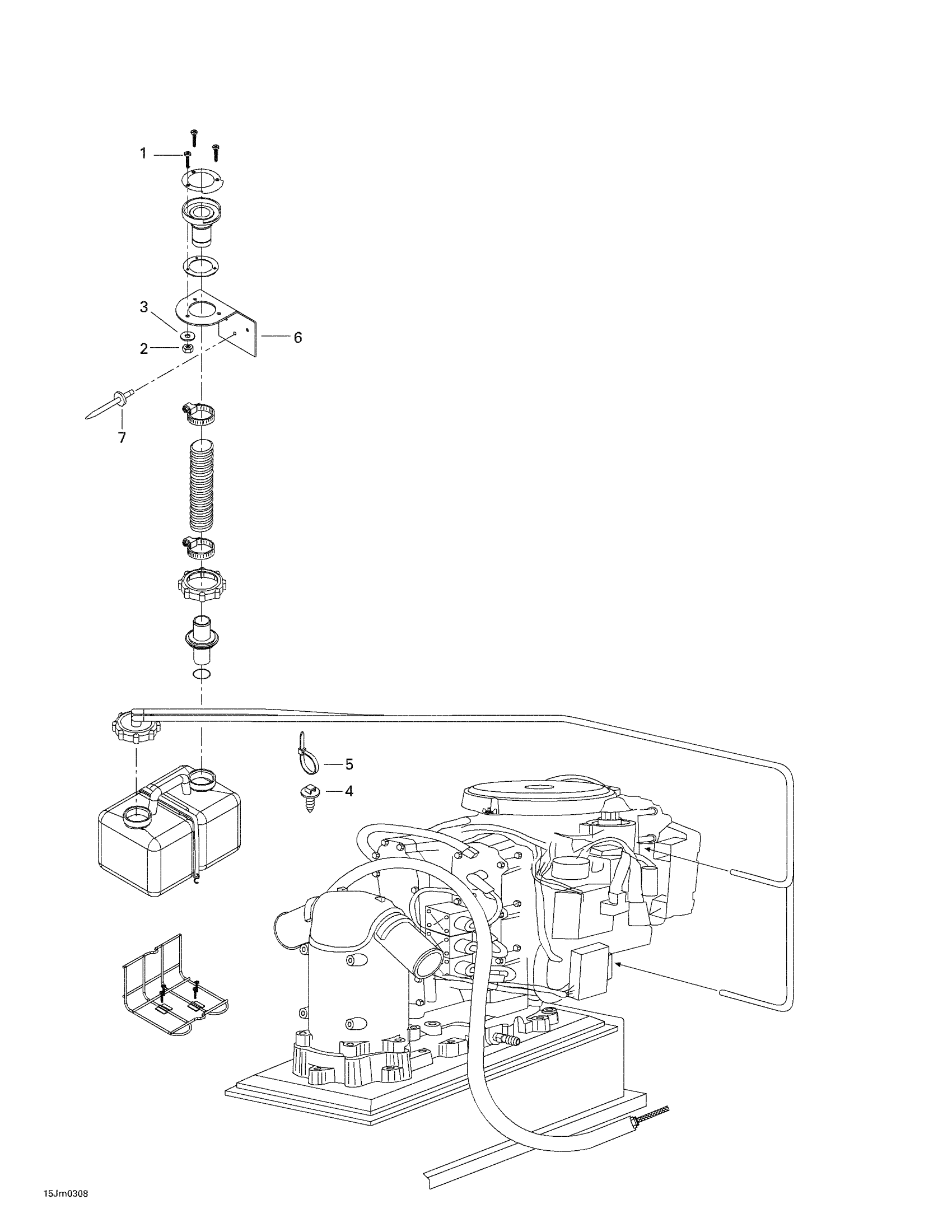

Sea-doo Utopia 185, 2003 Oil Injection System Diagram

#

Description

Price

1

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

SCREW M4 X 30 - Call your local BRP dealership

208443070

Unavailable

2

Elastic Stop Nut M4

232541600

$0.92

3

Flat Washer 4 mm, Stainless

234041600

$0.91

4

Mount Dart

293730040

$0.86

5

Tie-Rap 180 mm

414115200

$0.09

Tie-Rap 180 mm

414115200

$0.09

6

Oil Filler Bracket

204071235

Unavailable

7

RIVET - Call your local BRP dealership

293150065

Unavailable
