2025 Kawasaki Ultra 160LX-S Angler Hull Diagram

← All diagrams

Find the part on the Hull diagram for your 2025 Kawasaki Ultra 160LX-S Angler, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

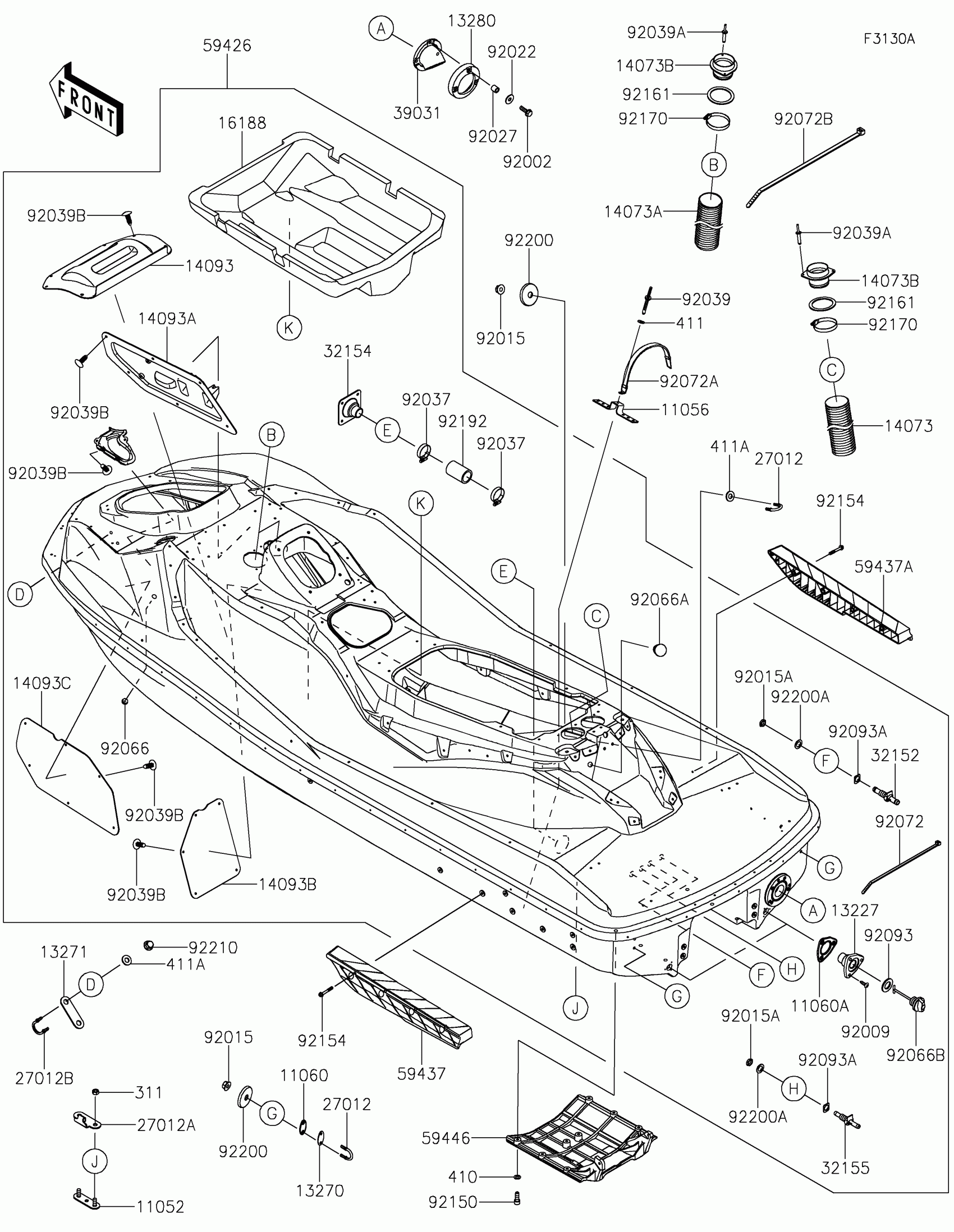

2025 Kawasaki Ultra 160LX-S Angler Hull Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,RR DUCT

11052-3712

1
Out of stock

11056

BRACKET,WATER MUFFLER

11056-3722

1
Out of stock

11060

GASKET,U HOOK,RR

11060-3800

1
Out of stock

11060A

GASKET,DRAIN PLUG

11060-3801

1
Out of stock

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

1
Out of stock

13270

PLATE

13270-3860

1

$8.20

In stock

13271

PLATE

13271-3724

1

$3.85

In stock

13280

1

$25.92

In stock

14073

DUCT

14073-0868

1

$15.81

In stock

14073A

DUCT,L=800

14073-0878

1

$21.41

In stock

14073B

DUCT

14073-3805

1

$5.76

In stock

14093

COVER,BATTERY

14093-1162

1
Out of stock

14093A

COVER,STORAGE CASE,RH

14093-1163

1
Out of stock

14093B

COVER,STORAGE CASE,RR

14093-1211

1
Out of stock

14093C

COVER,STORAGE CASE,LH

14093-1212

1
Out of stock

16188

FLOAT

16188-0063

1
Out of stock

27012

HOOK

27012-3797

1
Out of stock

27012A

HOOK

27012-3816

1
Out of stock

27012B

HOOK

27012-3821

1
Out of stock

32152

PIPE

32152-3749

1
Out of stock

32154

PIPE,DRIVE SHAFT

32154-3714

1
Out of stock

32155

PIPE,COOLING

32155-1511

1
Out of stock

39031

CAP-END

39031-3704

1

$41.65

In stock

59426

HULL-COMP,C.WHITE

59426-0066-57Y

1
Out of stock

59437

STABILIZER,LH,F.BLACK

59437-3749-6Z

1
Out of stock

59437A

STABILIZER,RH,F.BLACK

59437-3750-6Z

1
Out of stock

59446

COVER-JET PUMP

59446-0004

1
Out of stock

92002

BOLT,6X20

92002-3755

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1933

1
Out of stock

92015A

NUT,20MM

92015-3738

1
Out of stock

92022

WASHER

92022-567

1
Out of stock

92027

COLLAR,6.2X10X10

92027-3705

1
Out of stock

92037

CLAMP

92037-3009

1
Out of stock

92039

RIVET

92039-0808

1
Out of stock

92039A

RIVET

92039-3775

1
Out of stock

92039B

RIVET

92039-3788

1
Out of stock

92066

PLUG

92066-1306

1
Out of stock

92066A

PLUG

92066-1550

1
Out of stock

92066B

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92072A

BAND,314X18

92072-3814

1
Out of stock

92072B

BAND,L=608.22

92072-3884

1
Out of stock

92093

SEAL

92093-3720

1
Out of stock

92093A

SEAL

92093-3784

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-3775

1
Out of stock

92154

BOLT,FLANGED,8X55

92154-1123

1
Out of stock

92161

DAMPER

92161-3769

1

$3.37

In stock

92170

CLAMP

92170-1679

1

$5.95

In stock

92192

TUBE,39X51X78

92192-3756

1
Out of stock

92200

WASHER

92200-3779

1
Out of stock

92200A

WASHER,21X34X2

92200-3802

1
Out of stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock

311

NUT-HEX,6MM

311R0600

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

411

WASHER-PLAIN,5MM

411S0500

1
Out of stock

411A

WASHER-PLAIN,8MM

411S0800

1
Out of stock
