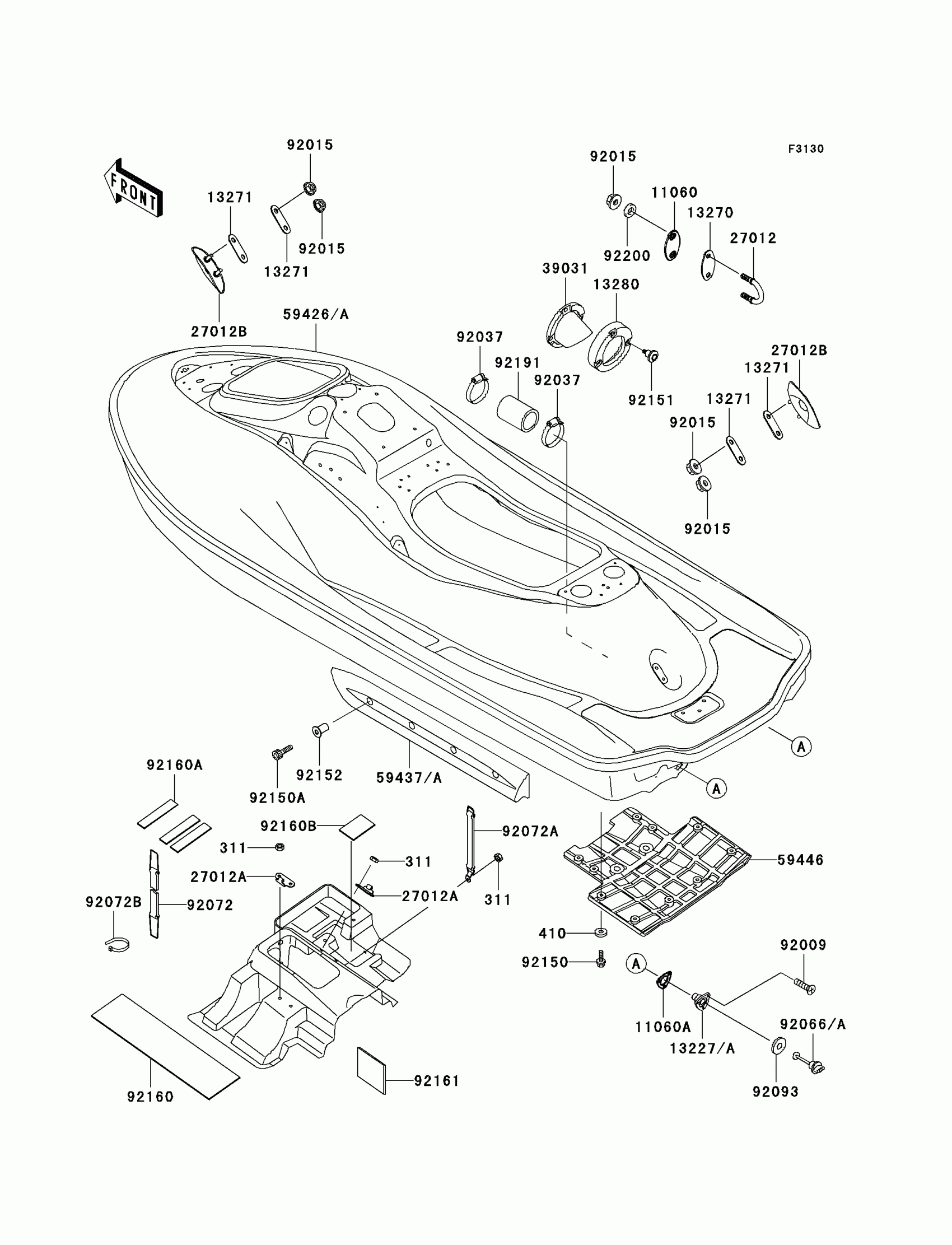

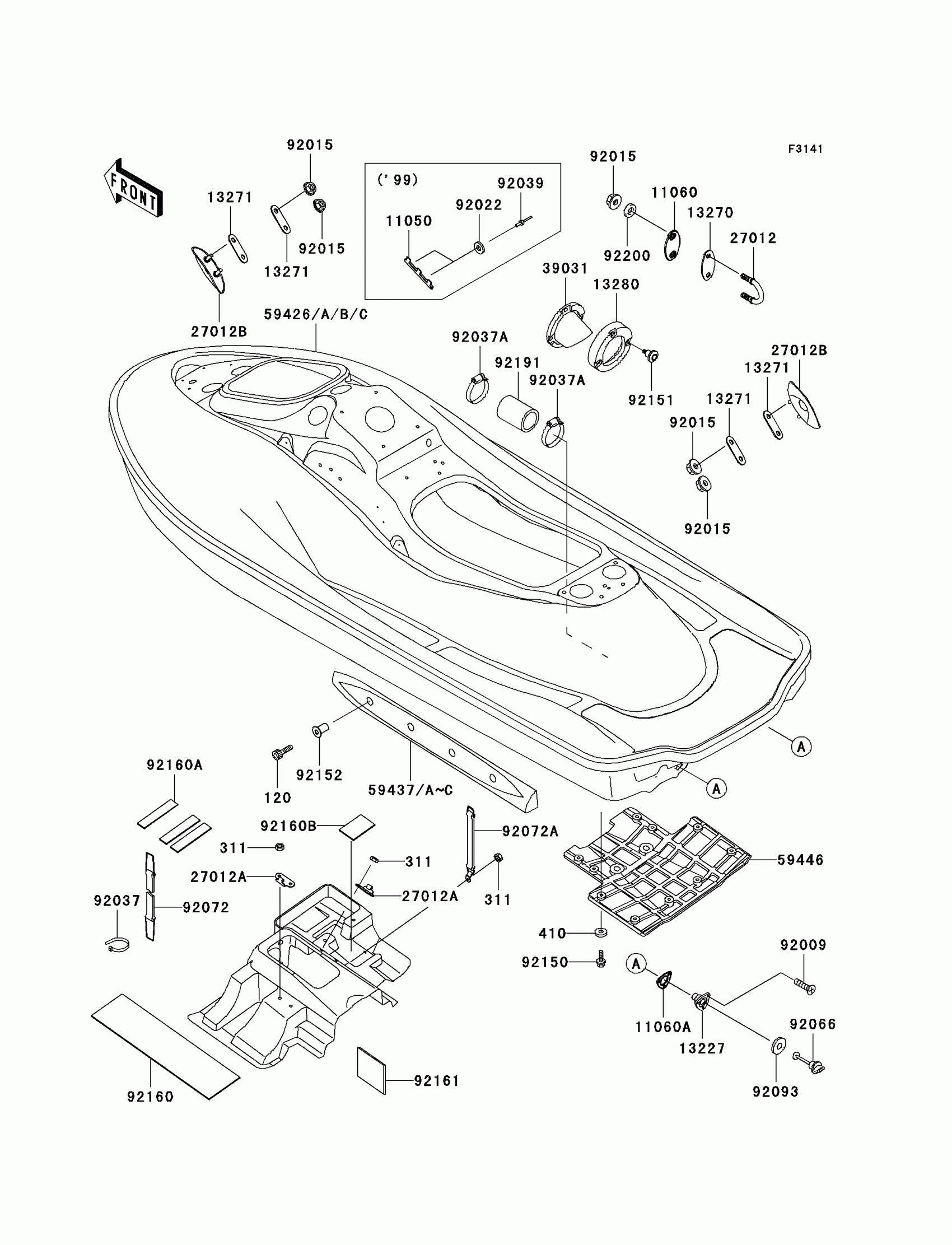

Kawasaki Ultra 150 Hull Diagram

#

Description
Price

11060

GASKET,U HOOK,RR

11060-3800

$5.41

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13227

HOUSING,DRAIN PLUG

13227-3711

Unavailable

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3816

$8.93

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$39.37

39031

CAP-END

39031-3704

$41.65

59437A

STABILIZER,LH,F.BLACK

59437-3721-6Z

Unavailable

59437C

STABILIZER,RH,F.BLACK

59437-3722-6Z

$123.29

59446

COVER-JET PUMP

59446-3749

$166.17

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-509

$4.88

92066

PLUG,RR,DRAIN

92066-3744

$16.76

92072

BAND,340X22

92072-3805

$11.31

92072A

BAND,248X18

92072-3829

$14.02

92093

SEAL

92093-3720

$2.75

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

$12.00

92152

COLLAR

92152-3715

$6.39

92160

DAMPER

92160-3839

$20.73

92160A

DAMPER

92160-3840

$5.36

92160B

DAMPER

92160-3913

$5.02

120

BOLT-SOCKET,6X30

120R0630

$3.35

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

92161

DAMPER

92161-3704

$13.85

92191

TUBE,39X51X70

92191-3856

$8.95

92200

WASHER

92200-3779

$4.66

59426B

HULL-COMP,C.S.RED

59426-3911-QV

$3,786.23

59426C

HULL-COMP,J.WHITE

59426-3911-8C

$3,235.89
