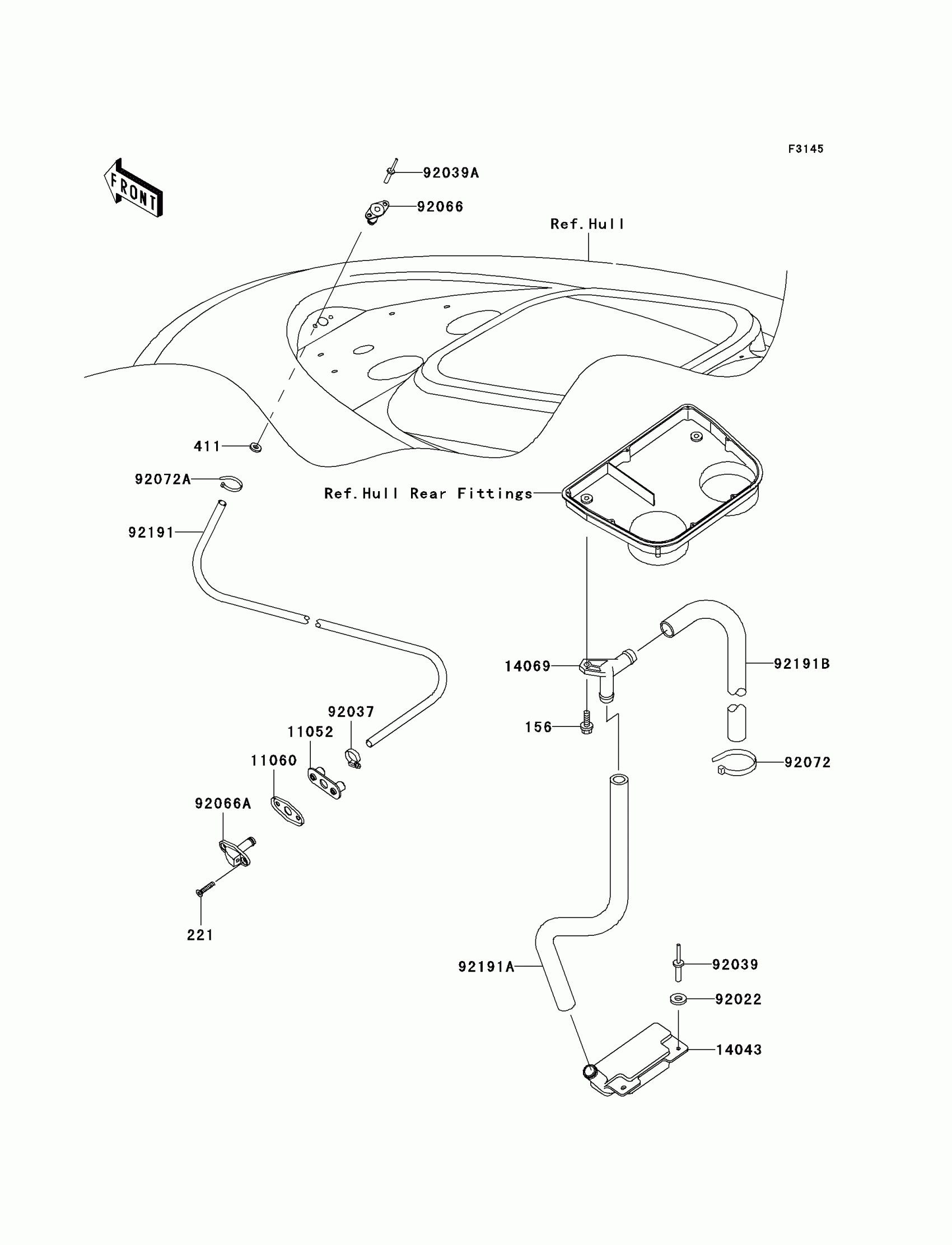

Kawasaki Ultra 150 Bilge System Diagram

Description

Price

156

BOLT-WP,6X18

156R0618

$2.97

221

SCREW-CSK-CROSS,5X25

221R0525

$1.73

411

WASHER-PLAIN,5MM

411S0500

$0.90

11052

BRACKET

11052-3735

$17.44

11060

GASKET

11060-3798

$5.97

14043

FILTER

14043-3710

Unavailable

14069

BREATHER

14069-3708

$7.53

92022

WASHER,5X16X1.5

92022-3041

$3.33

92037

CLAMP

92037-1173

$2.92

92037A

CLAMP

92037-3726

$3.63

92039

RIVET

92039-3714

$0.92

92039A

RIVET

92039-3747

$1.16

92066

PLUG

92066-3766

$5.97

92066A

PLUG

92066-3767

$9.97

92072

BAND,L=201

92072-3778

$1.61

92191A

TUBE,10X13X600

92191-3862

$4.19

92191B

TUBE

92191-3883

$10.80

92191C

TUBE,15.88X22.24X570

92191-3896

$5.58
