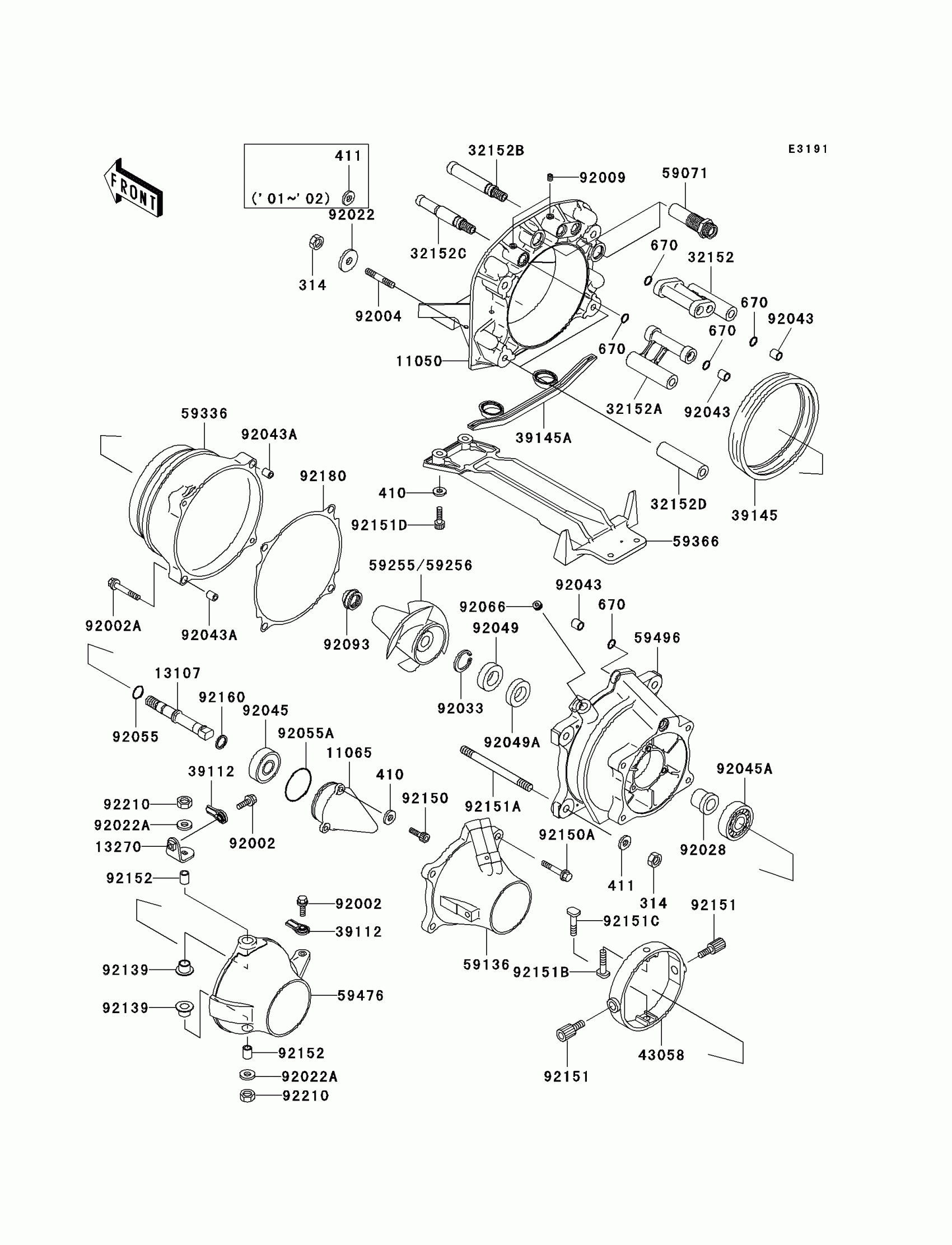

Kawasaki Ultra 130 Jet Pump Diagram

#

Description
Price

11050

BRACKET

11050-3758

$595.40

11065

CAP

11065-3705

Unavailable

13107

SHAFT

13107-3773

$122.34

13270

PLATE

13270-3905

$11.25

32152

PIPE

32152-3742

$70.34

32152A

PIPE

32152-3743

$50.32

32152B

PIPE

32152-3744

$28.99

32152C

PIPE

32152-3745

$24.69

32152D

PIPE

32152-3751

$15.51

39112

RODEND-TIE

39112-3703

$20.69

39145

TRIM-SEAL

39145-3758

Unavailable

39145A

TRIM-SEAL

39145-3766

Unavailable

43058

RING,TILT

43058-3731

$214.08

59071

JOINT,CABLE

59071-3760

$42.79

59136

NOZZLE-PUMP

59136-3750

$153.76

59255

IMPELLER-COMP

59255-3725

$556.52

59336

CASE-PUMP

59336-3713

Unavailable

59366

GRATE

59366-3718

$203.54

59476

NOZZLE-STRG

59476-3738

$155.40

59496

VANE-GUIDE

59496-3735

$1,116.03

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X40

92002-3716

$3.79

92004

STUD,10X35

92004-3732

$5.19

92009

SCREW

92009-3780

$2.19

92022

WASHER,32X10.5X4

92022-3023

$6.74

92022A

WASHER,PLAIN

92022-3026

$2.74

92028

BUSHING

92028-3773

Unavailable

92033

RING-SNAP

92033-3730

$6.94

92043

PIN,12X12

92043-3745

$6.08

92043A

PIN,10X12

92043-3747

$7.49

92045

BEARING-BALL,62022RD

92045-3721

$18.00

92045A

BEARING-BALL

92045-3730

Unavailable

92049

SEAL-OIL,HVAJ25X45X7

92049-3726

Unavailable

92049A

SEAL-OIL,SCJ25X45X7

92049-3727

$12.39

92055

RING-O,13.0X1.9

92055-1011

$5.81

92055A

RING-O,52.6X2.4

92055-1520

$3.57

92066

PLUG,PT1/4X8.9

92066-3765

$11.17

92093

SEAL

92093-3749

$3.78

92139

BUSHING

92139-3701

Unavailable

314

NUT-HEX-FINE,10MM

314R1000

$1.68

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

411

WASHER-PLAIN,10MM

411S1000

$1.89

670

O RING,12MM

670B2012

$2.22

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,8X35

92150-3792

$5.61

92151

BOLT

92151-3705

$14.25

92151A

BOLT,10X110

92151-3733

Unavailable

92151B

BOLT,8MM

92151-3735

$15.98

92151C

BOLT,8X32

92151-3752

$8.39

92151D

BOLT,SOCKET,6X20

92151-3774

$1.35

92152

COLLAR,8.2X11.8X15

92152-3703

$5.86

92160

DAMPER

92160-3932

$5.37

92180

SHIM,T=0.5

92180-3705

Unavailable

92210

NUT,LOCK,8MM

92210-3742

$5.71
