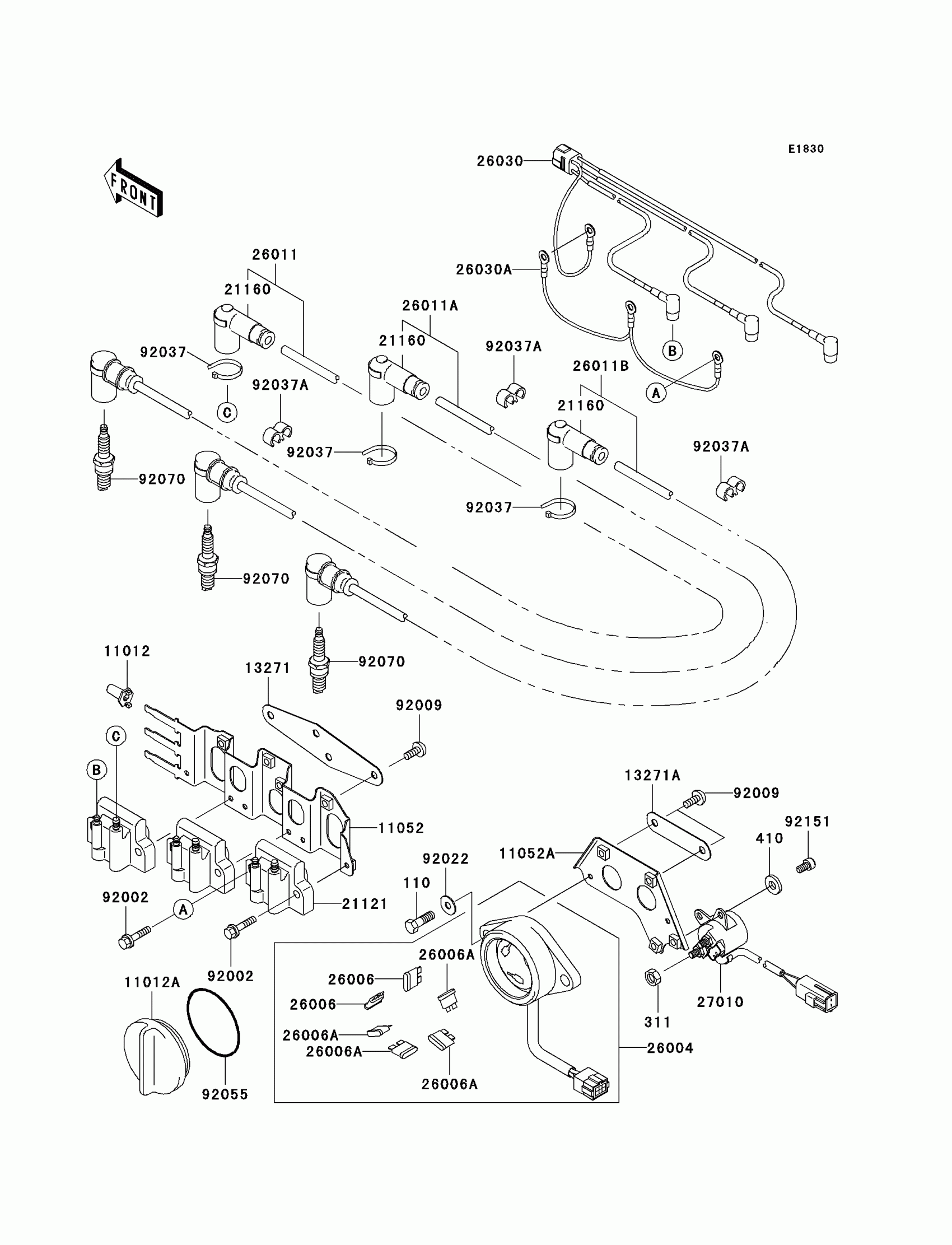

Kawasaki Ultra 130 Ignition System(JH1100-B1) Diagram

Description

Price

110

BOLT,6X20

110R0620

Unavailable

311

NUT-HEX,6MM

311R0600

$0.75

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

11012

CAP,HOLDER

11012-3768

$7.41

11012A

CAP

11012-3791

Unavailable

11052

BRACKET,COIL

11052-3743

$33.07

11052A

BRACKET,FUSE

11052-3744

Unavailable

13271

PLATE

13271-3820

$10.59

13271A

PLATE

13271-3821

$4.92

21121

COIL-IGNITION

21121-3718

Unavailable

21160

CAP-ASSY-PLUG

21160-3702

$48.56

26004

FUSE-ASSY

26004-3725

$158.39

26006

FUSE,BLADE,10A,RED

26006-1007

$3.94

26006A

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

26011

WIRE-LEAD,#1

26011-3887

Unavailable

26011A

WIRE-LEAD,#2

26011-3888

Unavailable

26011B

WIRE-LEAD,#3

26011-3889

$136.00

26030

HARNESS

26030-3730

Unavailable

26030A

HARNESS

26030-3737

$9.31

27010

SWITCH

27010-3774

$125.91

92002

BOLT,6X25

92002-3714

$3.97

92009

SCREW,6X15

92009-3830

$2.66

92022

WASHER

92022-567

$2.19

92037

CLAMP

92037-1173

$2.92

92037A

CLAMP,HOSE

92037-1603

$4.42

92055

RING-O

92055-1292

$8.24

92070

PLUG-SPARK,PZFR7G-G(NGK),SOLID

92070-3705

$20.29

92151

BOLT,6X12

92151-3724

$11.68
