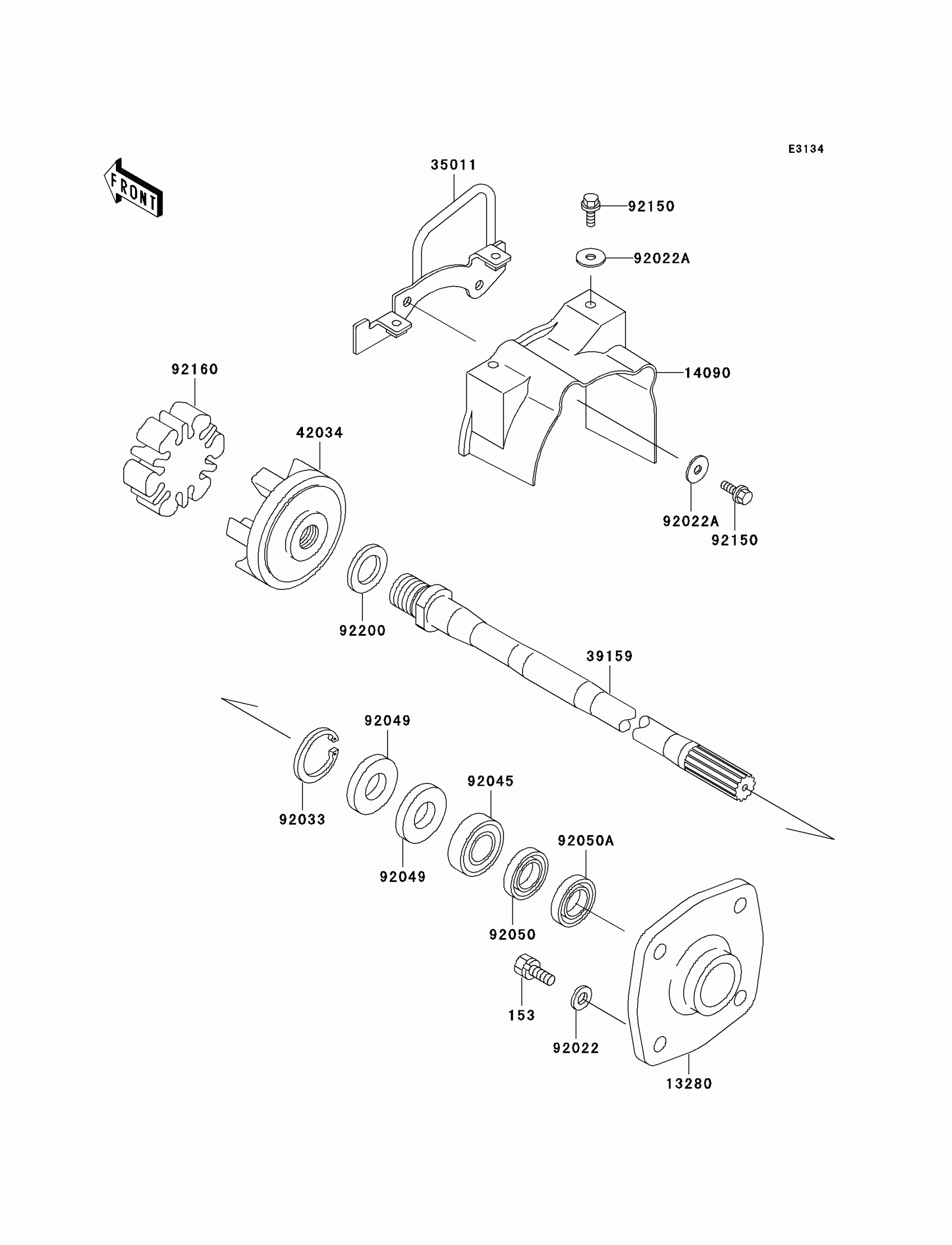

Kawasaki Ultra 130 Drive Shaft Diagram

Description

Price

153

BOLT-WS-SMALL,8X30

153R0830

$5.19

13280

HOLDER

13280-3730

Unavailable

14090

COVER,COUPLING

14090-3789

$55.46

35011

STAY

35011-3715

$56.11

39159

SHAFT-DRIVE

39159-3736

$610.47

42034

COUPLING

42034-3709

$57.45

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92033

RING-SNAP,42MM

92033-3713

$13.39

92045

BEARING-BALL,60042RD

92045-3705

$28.70

92049

SEAL-OIL,S620426

92049-3707

$6.04

92050

SEAL-OIL,SCY20368

92050-502

$22.44

92050A

SEAL-OIL,SC20367

92050-503

$20.19

92150

BOLT,6X18

92150-3729

$3.57

92160

DAMPER,COUPLING

92160-3883

$97.22

92200

WASHER,24X32X2.0

92200-3739

$3.53
