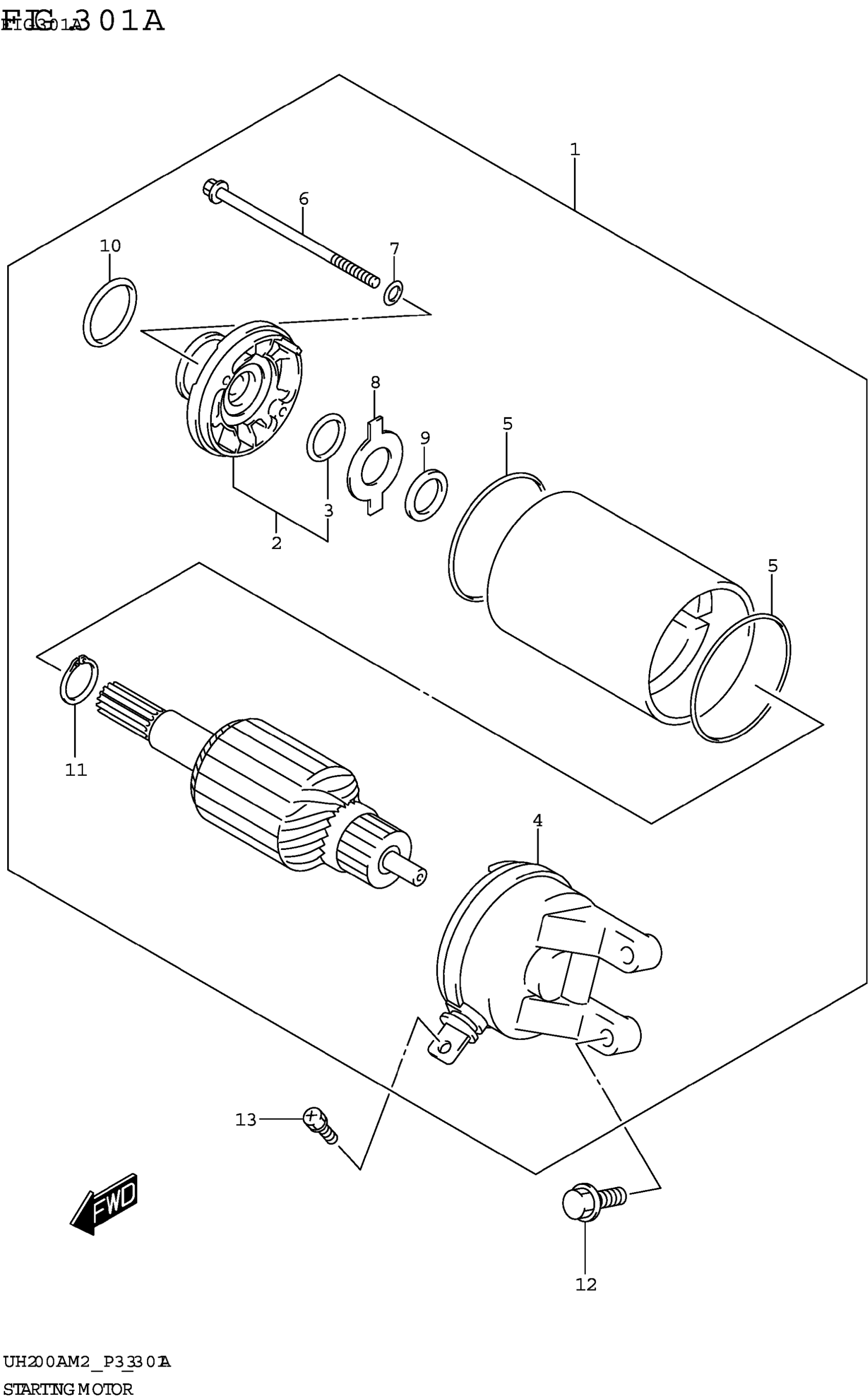

Suzuki UH200AM2 (2022) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-03H00

Unavailable

2

.BRACKET

31150-08F00

Unavailable

3

..SEAL,OIL

31153-49210

$27.32

4

.FRAME ASSY,COMMUTATOR,END

31175-14F00

Unavailable

5

.O-RING

31264-32C10

$16.03

6

.BOLT

31281-08F00

Unavailable

7

.O RING

31156-08F00

$5.10

8

.PLATE,LOCK

31361-32C10

Unavailable

9

.SHIM

31361-38300

$2.25

10

.O-RING (D:3.1,ID:24.5)

31156-40F01

$13.82

11

.RING,SNAP

31361-10200

$2.47

12

BOLT

01547-0620A

$2.10

13

SCREW (5X8)

09137-05004

$2.50
