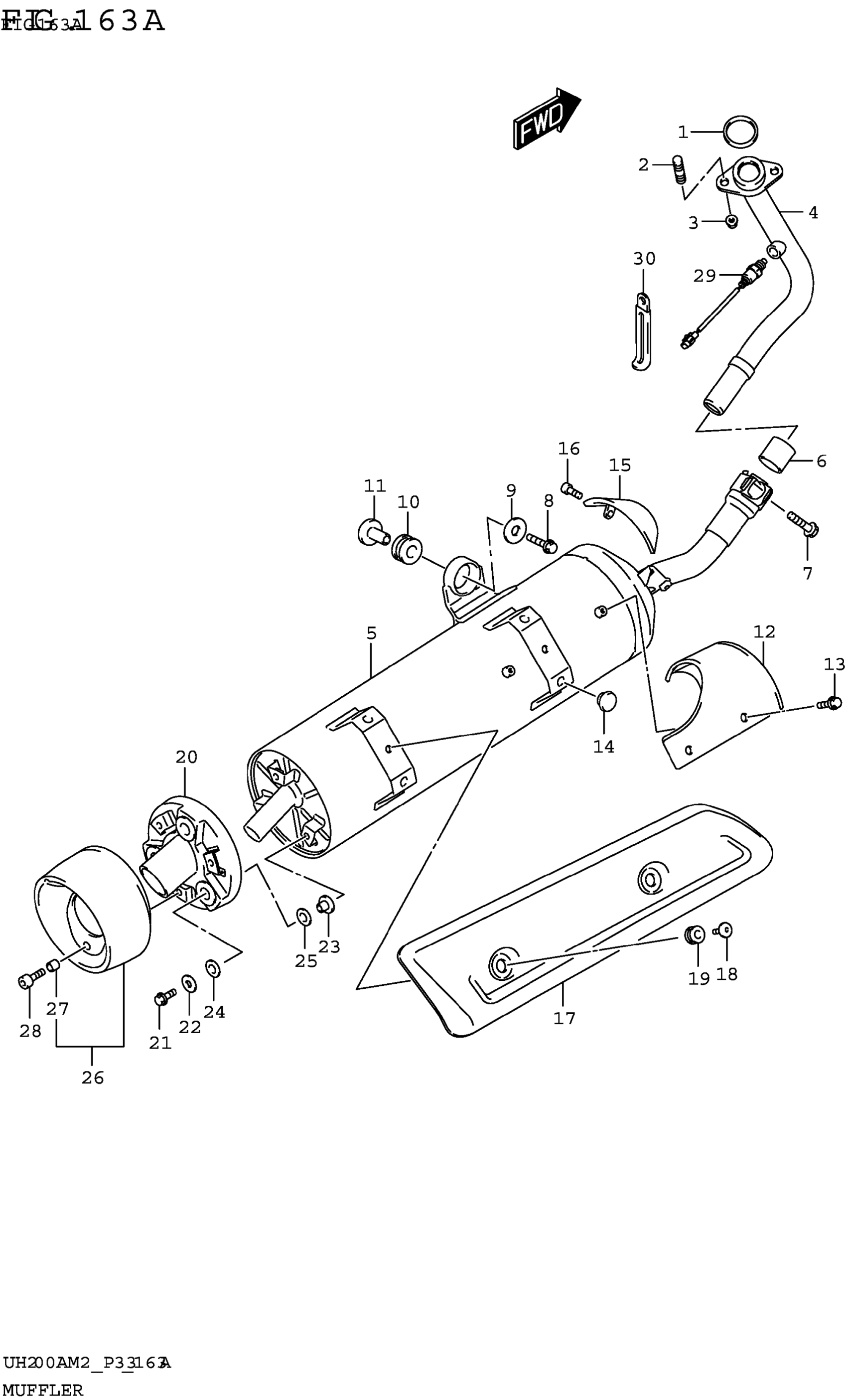

Suzuki UH200AM2 (2022) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-46E10

$6.61

2

BOLT,STUD

01421-0820A

$1.92

3

NUT

08316-1008A

$2.47

4

PIPE,EXHAUST

14150-29K10

$107.52

5

BODY, MUFFLER

14310-29K10-H01

Unavailable

6

CONNECTOR,MUFFLER

14771-03H50

$29.78

7

BOLT

01550-0840B

$4.45

8

BOLT

01550-0840A

$2.80

9

WASHER (8.5X38X1.6)

09160-08143

$2.85

10

CUSHION

09320-14026

$12.82

11

SPACER

09180-10161

$10.27

12

GUARD,MUF HEAT

14730-03H00

$20.98

13

BOLT

01550-0610A

$1.97

14

CUSHION

09321-10045

Unavailable

15

COVER,MUF FR

14750-03H40

$29.58

16

BOLT

07130-0612A

$2.50

17

COVER,MUF

14781-03H50

$73.48

18

SCREW

09139-06199

$4.28

19

CUSHION

09320-08088

$9.53

20

STAY,MUF RR COV

14760-29K00

Unavailable

21

BOLT (6X20)

01550-0620A

$1.97

22

WASHER (6.5X18X1.0)

09160-06028

$1.43

23

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

24

.CUSHION

09320-08080

$10.27

25

.CUSHION

09320-08081

$9.30

26

COVER,MUF RR

14790-03H50

$46.33

27

SPACER (6.5X9X8)

09180-06261

$1.89

28

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

29

SENSOR,OXYGEN

18213-29K01

Unavailable

30

CLAMP (L:45)

09404-06429

$1.82
