2022 Suzuki UH200AM2 Fuel Tank Diagram

← All diagrams

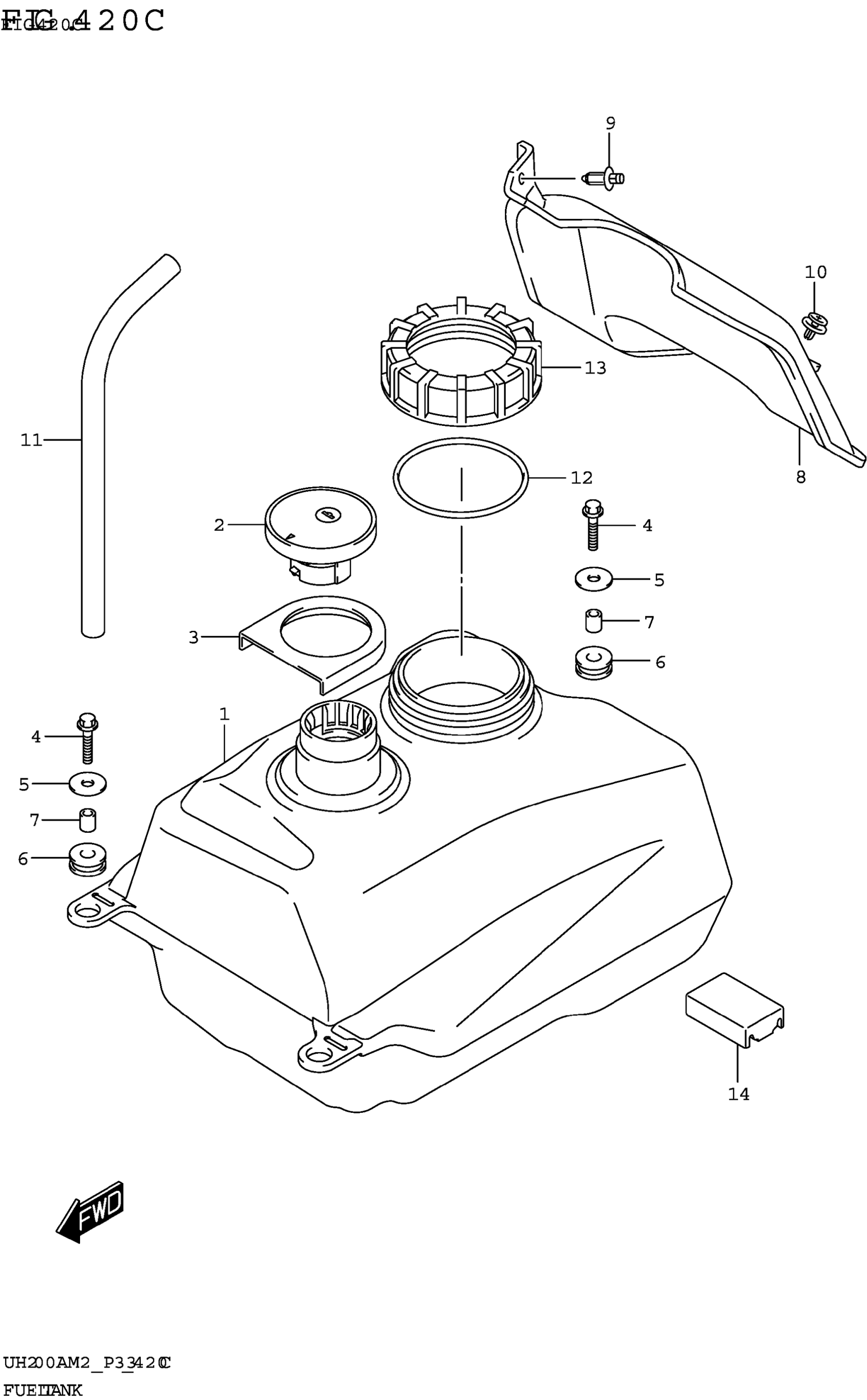

Find the part on the Fuel Tank diagram for your 2022 Suzuki UH200AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki UH200AM2 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK,FUEL

44110-12JD0

1
Out of stock

2

CAP SET,FUEL TANK

44200-13850

1

$130.53

In stock

3

RUBBER,FUEL TANK INLET

44261-12J00

1
Out of stock

4

BOLT (6X25)

01550-0625A

3
Out of stock

5

WASHER, FUEL TANK (6.5X24X1.6

44512-12J00

—
Out of stock

6

CUSHION

09320-10080

3

$6.55

In stock

7

SPACER (6.5X10X11)

09180-06288

3
Out of stock

8

SHIELD,FUEL TANK HEAT

44191-12J10

—
Out of stock

9

1

$2.92

In stock

10

CLIP,FAN SHROUD

17795-65D00

—
Out of stock

11

HOSE (7X11X350)

09352-70001-350

—
Out of stock

12

PACKING,FUEL PUMP

44596-03H00

1

$63.87

In stock

13

RETAINER,FUEL PUMP

44597-03H00

1
Out of stock

14

CUSHION,FUEL TANK LWR

44541-03H00

1
Out of stock
