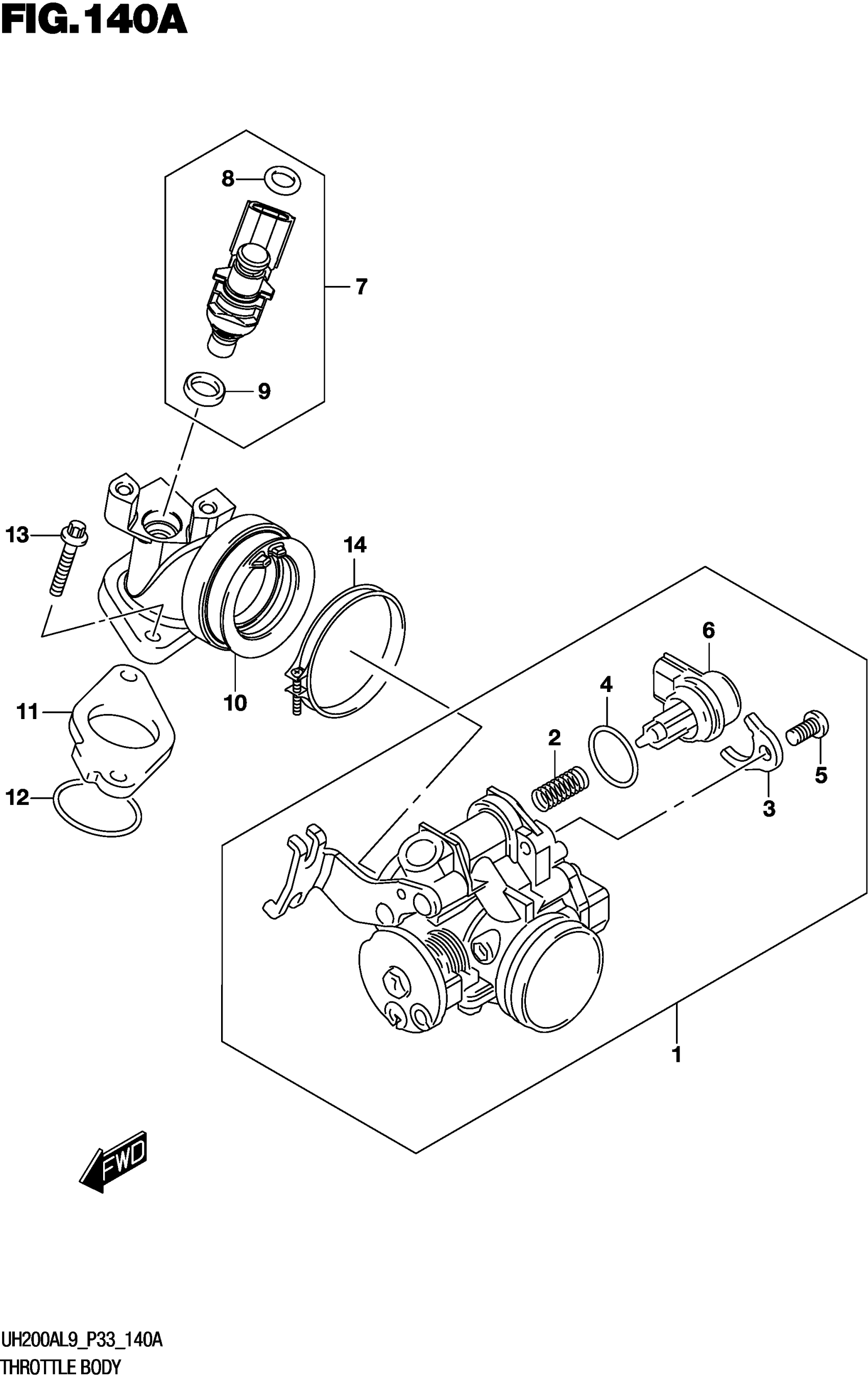

Find the part on the Throttle Body diagram for your 2019 Suzuki UH200AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki UH200AL9 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13400-29K10

1
Out of stock

2

.COMPRESSION SPRING

13417-09JA0

1
Out of stock

3

.PLATE

13421-42J00

1
Out of stock

4

.O-RING

13438-09JA0

1
Out of stock

5

SCREW

13602-06128

1
Out of stock

6

.STEPPING MOTOR

18117-29K00

1
Out of stock

7

INJECTOR ASSY, FUEL

15710-29K00

1
Out of stock

8

.O RING

15721-26J00

1
Out of stock

9

.RING,SEAL

15722-21H00

1
Out of stock

10

PIPE COMP,INTAKE

13101-29K10

1
Out of stock

11

INSULATOR,INTAKE PIPE

13128-03H10

1
Out of stock

12

O RING (D:2.4,ID:33.7)

09280-34004

1
Out of stock

13

BOLT

01547-0625A

2
Out of stock

14

.CLAMP

09402-48208

1
Out of stock
