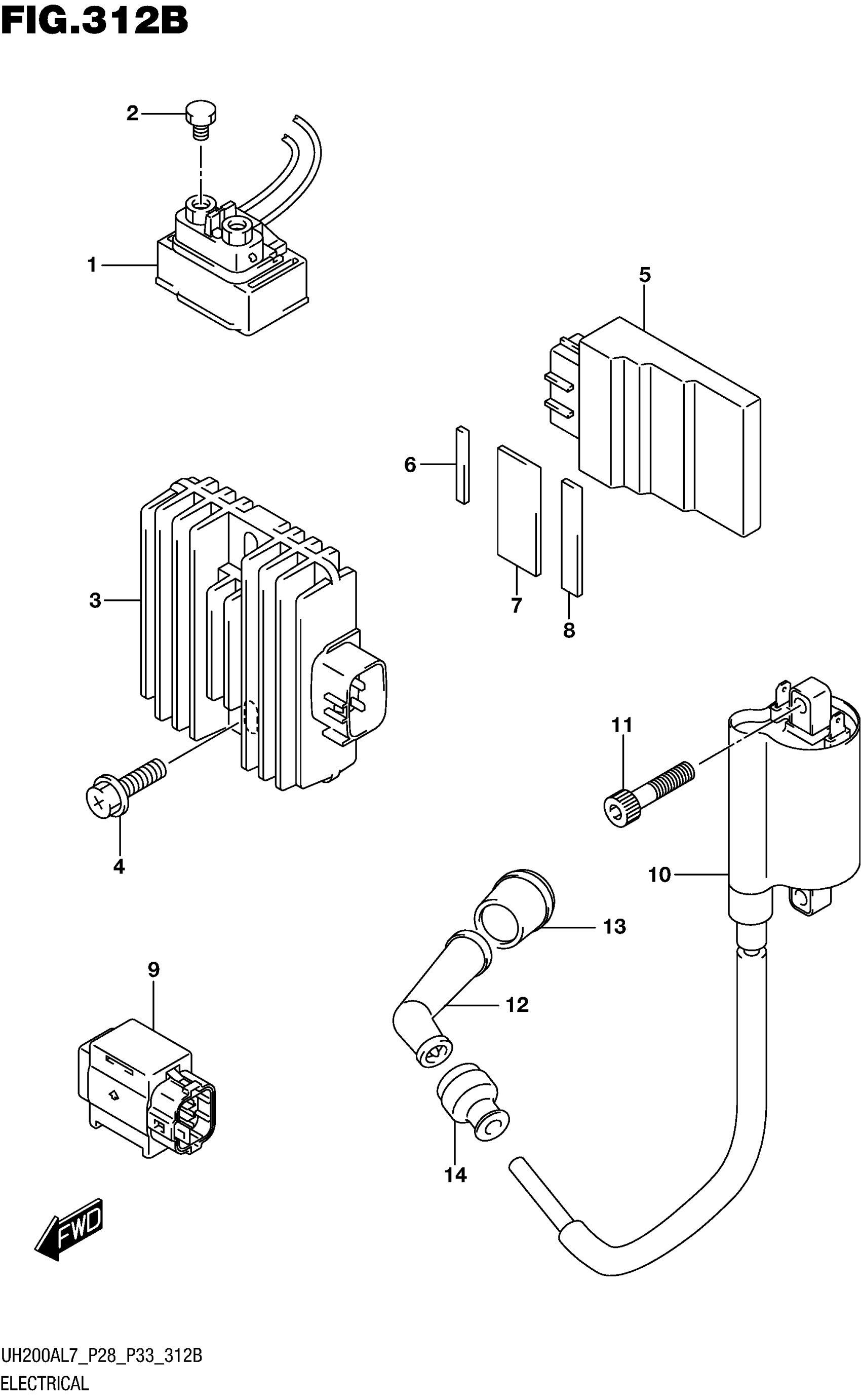

Suzuki UH200AL7 (2017) ELECTRICAL (UH200AL7 P33) Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$83.85

2

SCREW (6X8)

09128-06013

$1.24

3

RECTIFIER ASSY

32800-42F00

$217.09

4

SCREW

02162-0625A

$1.68

5

CONTROL UNIT, FI

32920-12J90

$464.20

6

CUSHION, FI CONTROL UNIT

33652-12J00

$1.42

7

CUSHION,FI CONTROL UNIT

33652-12J10

$2.13

8

CUSHION,FI CONTROL UNIT

33652-12J20

$1.85

9

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

10

COIL ASSY,IGNITION

33410-12J00

$139.78

11

BOLT

07130-0520A

$2.40

12

CAP ASSY,SPARK PLUG

33510-16H10

$37.07

13

SEAL, SPARK PLUG

33541-44D00

$4.85

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97
