2017 Suzuki UH200AL7 Cylinder Head Diagram

← All diagrams

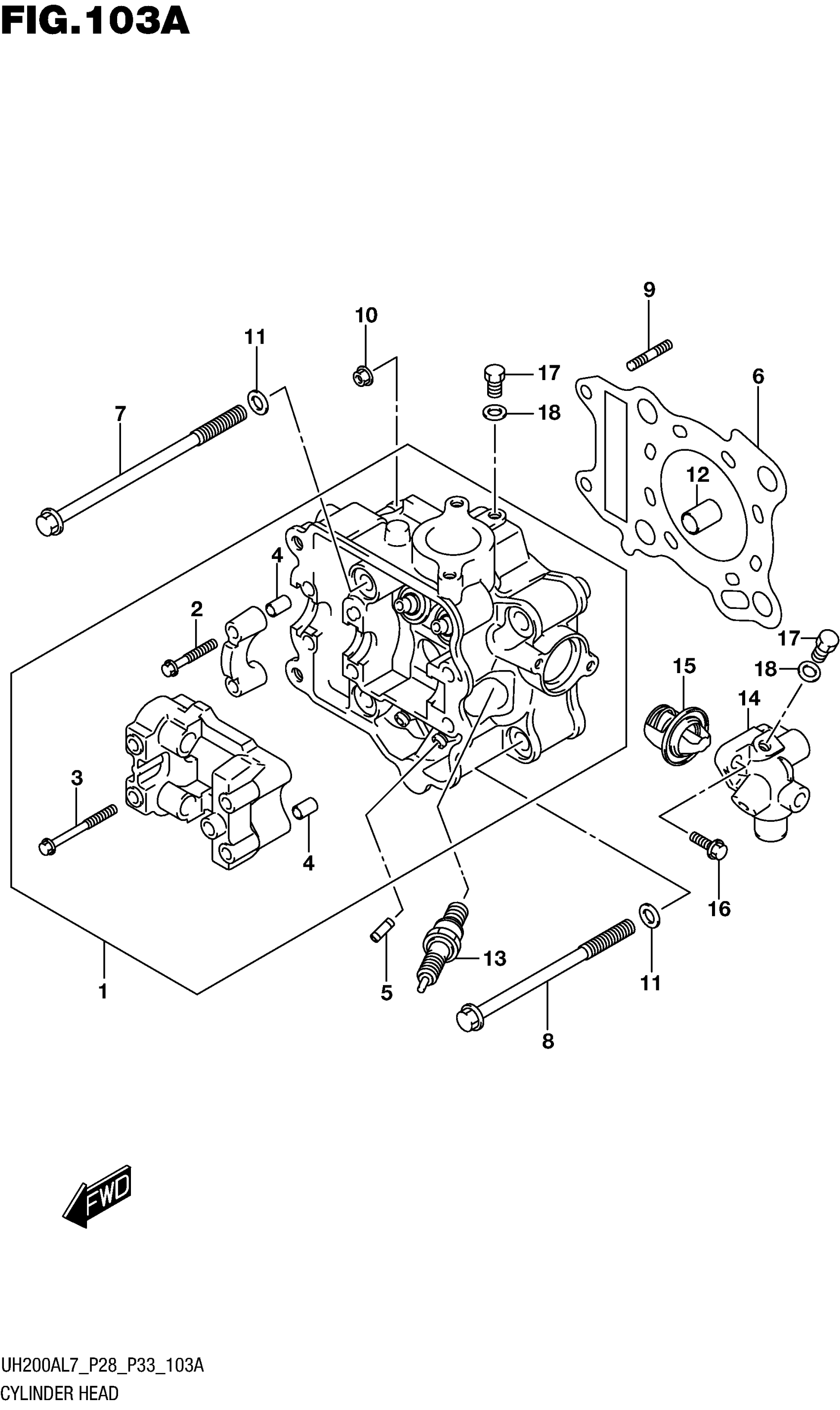

Find the part on the Cylinder Head diagram for your 2017 Suzuki UH200AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki UH200AL7 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER

11100-03HC0

1
Out of stock

2

BOLT (6X39)

09103-06026

2
Out of stock

3

.BOLT (6X60)

09103-06064

4
Out of stock

4

.PIN (8X11)

09206-08001

4
Out of stock

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

6

GASKET, CYLINDER HEAD

11141-03H00

1
Out of stock

7

BOLT (10X175)

09103-10276

2
Out of stock

8

BOLT (L:145)

09103-10451

2
Out of stock

9

STUD BOLT

01421-0625A

2
Out of stock

10

NUT

08316-1006A

2
Out of stock

11

WASHER (10.5X19X2)

09160-10082

4
Out of stock

12

PIN

04211-13189

2
Out of stock

13-1

1

$13.63

In stock

13-2

SPARK PLUG (DENSO, U22ETR)

09482-00415

1
Out of stock

13-3

1

$11.47

In stock

13-4

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

1
Out of stock

13-5

1

$10.51

In stock

13-6

1

$14.37

In stock

14

COVER,THERMOSTAT

17661-14G00

1
Out of stock

15

THERMOSTAT, WATER

17670-08D30

1
Out of stock

16

BOLT

01547-0620A

2
Out of stock

17

BOLT, THERMOSTAT COVER

17568-50F00

2
Out of stock

18

GASKET

09168-06026

2
Out of stock
