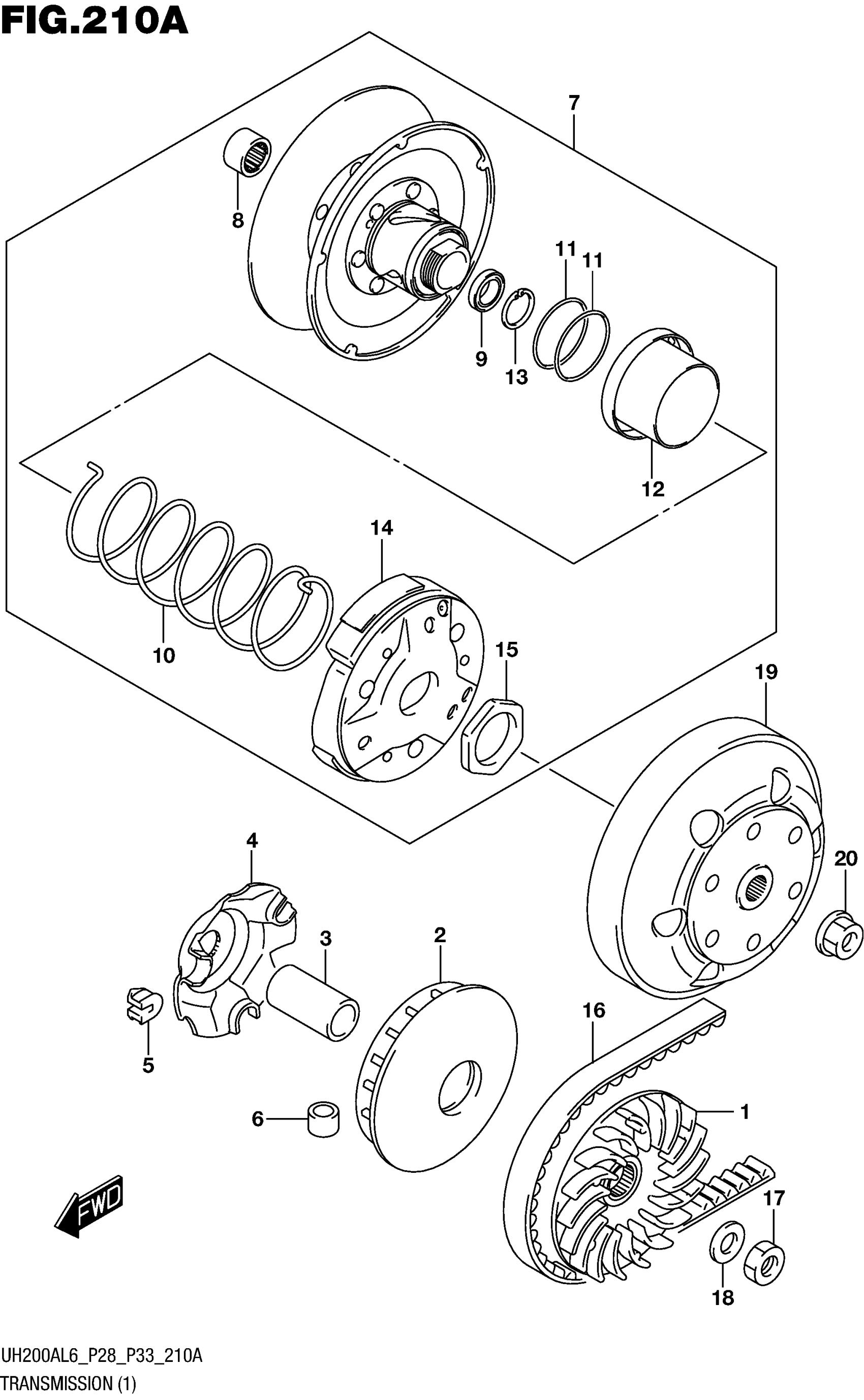

Find the part on the Transmission diagram for your 2016 Suzuki UH200AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki UH200AL6 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FACE, FIXED DRIVE

21110-03H00

1
Out of stock

2

FACE, MOVABLE DRIVE This part replaces 21120-03H00.

21120-03H20

1
Out of stock

3

SPACER, MOVABLE DRIVE

21125-03H00

1
Out of stock

4

PLATE, MOVABLE DRIVE

21431-03H00

1
Out of stock

5

DAMPER, MOVABLE DRIVE PLATE

21481-03H00

3
Out of stock

6

ROLLER, MOVABLE DRIVE

21650-03H60

6
Out of stock

7

FACE, FIXED DRIVEN

21200-03H50

1
Out of stock

8

.BEARING, FIXED DRIVEN RH

21214-03H50

—
Out of stock

9

.BEARING, FIXED DRIVEN LH

21215-03H50

—
Out of stock

10

.SPRING, MOVABLE DRIVEN

21243-03H50

—
Out of stock

11

.O RING, MOVABLE DRIVEN

21245-03H50

—
Out of stock

12

.SEET, MOVABLE DRIVEN

21471-03H50

1
Out of stock

13

.CIRCLIP

21216-03H50

—
Out of stock

14

.CLUTCH ASSY, SHOE

21501-03H50

1
Out of stock

15

.NUT, SHOE CLUTCH

21518-03H00

1
Out of stock

16

V BELT

27601-03H50

1
Out of stock

17

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

18

WASHER

09164-16005

1
Out of stock

19

HOUSING, CLUTCH

21220-03H50

—
Out of stock

20

NUT

09159-12068

1
Out of stock
