2016 Suzuki UH200AL6 Rear Leg Shield Diagram

← All diagrams

Find the part on the Rear Leg Shield diagram for your 2016 Suzuki UH200AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

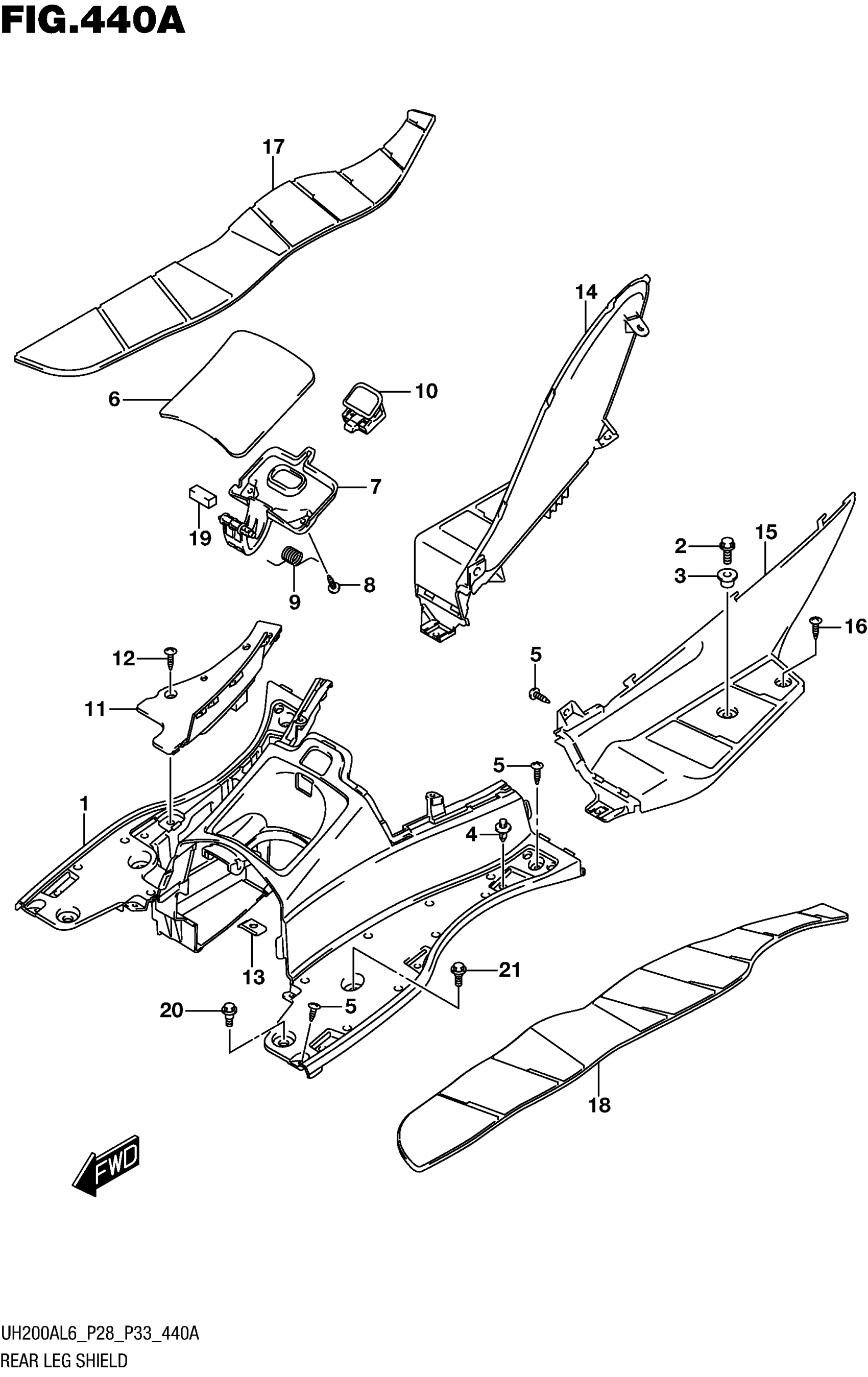

2016 Suzuki UH200AL6 Rear Leg Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

BOLT

48124-12JA0

—
Out of stock

3

SPACER (6.3X10X9.6)

48129-12JA0

2

$4.48

In stock

4

CLIP (BLACK)

09409-08308-5ES

6

$2.10

In stock

5

SCREW

03541-0516A

10
Out of stock

6

LID, FUEL (BLACK)

48125-12JA0-291

1
Out of stock

7

ARM, FUEL LID

48126-12JA0

1
Out of stock

8

SCREW

03541-0516A

2
Out of stock

9

SPRING,FUEL LID

92163-03H00

1

$3.77

In stock

10

LOCK ASSY (BLACK)

92180-12JA0-291

1
Out of stock

11

1

$31.82

In stock

12

SCREW

03541-0516A

1
Out of stock

13

NUT

09148-05038

3
Out of stock

14

FOOTBOARD RH (BLACK)

48122-12JA0-291

1

$35.28

In stock

15

FOOTBOARD LH (BLACK)

48123-12JA0-291

1

$34.57

In stock

16

SCREW

03541-0520B

2

$2.87

In stock

17

1

$61.18

In stock

18

MAT, FLOOR LH (BLACK)

48221-12JA0-291

1
Out of stock

19

CUSHION, FUEL LID

48128-12JA0

1
Out of stock

20

BOLT (6X17.8)

09111-06072

2

$2.19

In stock

21

BOLT (6X14.8)

09111-06102

2
Out of stock
