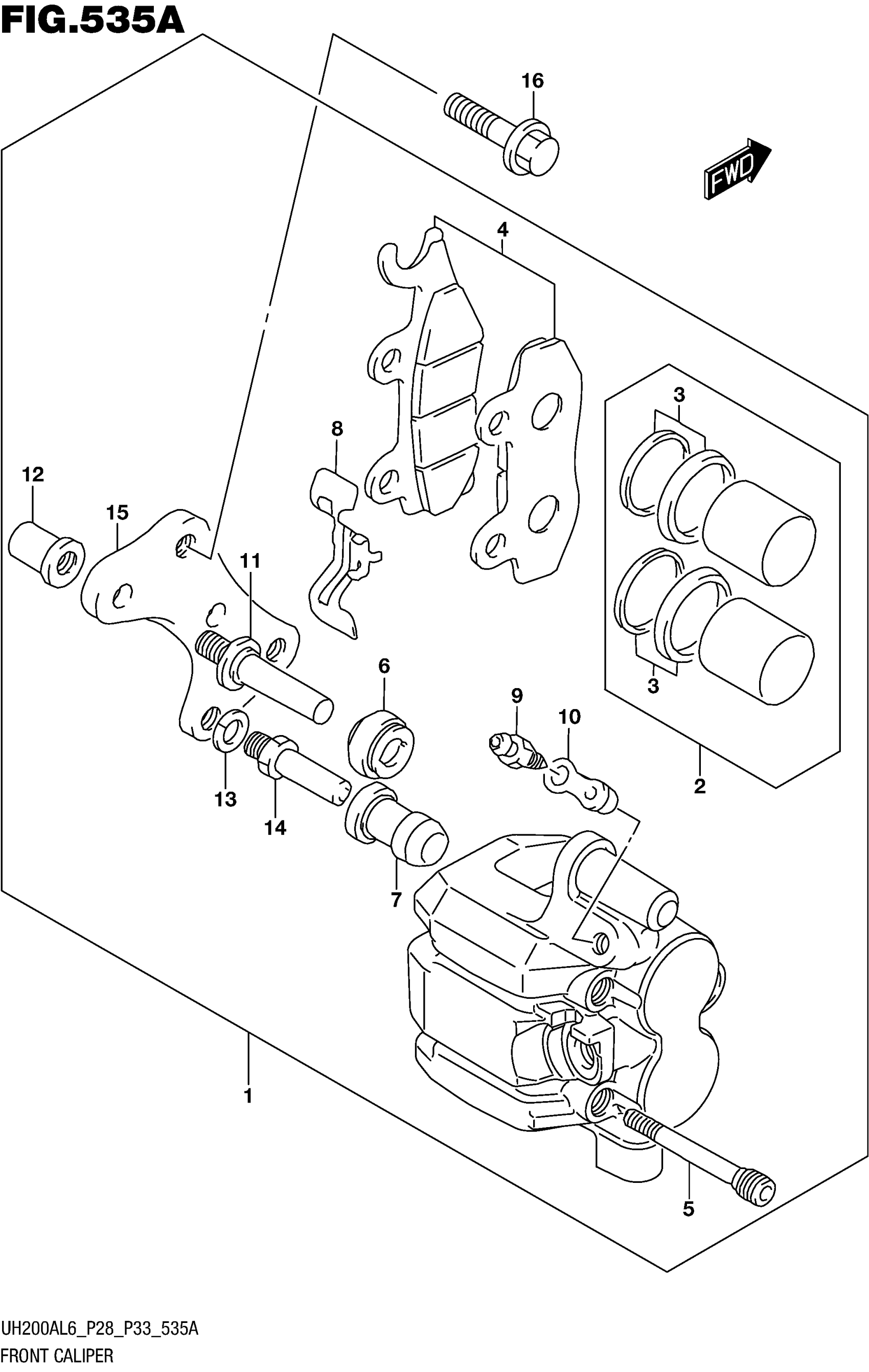

Suzuki UH200AL6 (2016) FRONT CALIPER Diagram

#

Description
Price

1

CALIPERS ASSY, FRONT

59100-21D51

$172.27

2

.PISTON SET

69100-21860

$49.55

3

..SEAL SET, PISTON

59300-21860

$26.75

4

.PAD SET

59100-21890

$53.50

5

.PIN

59345-14600

$18.33

6

.BOOT

59303-14500

$5.06

7

.BOOT

59386-13A00

$7.28

8

.SPRING

69115-31D10

$18.60

9

.BLEEDER

59121-01A00

$7.99

10

.CAP, BLEEDER

59122-46H00

$4.17

11

.PIN

59387-12J00

Unavailable

12

.NUT

59388-00B20

$20.13

13

.WASHER

59314-13A00

$2.28

14

.BOLT

59382-13A00

$7.24

15

.BRACKET

59351-21D00

Unavailable

16

BOLT,CALIPER

59199-12J00

$2.68
