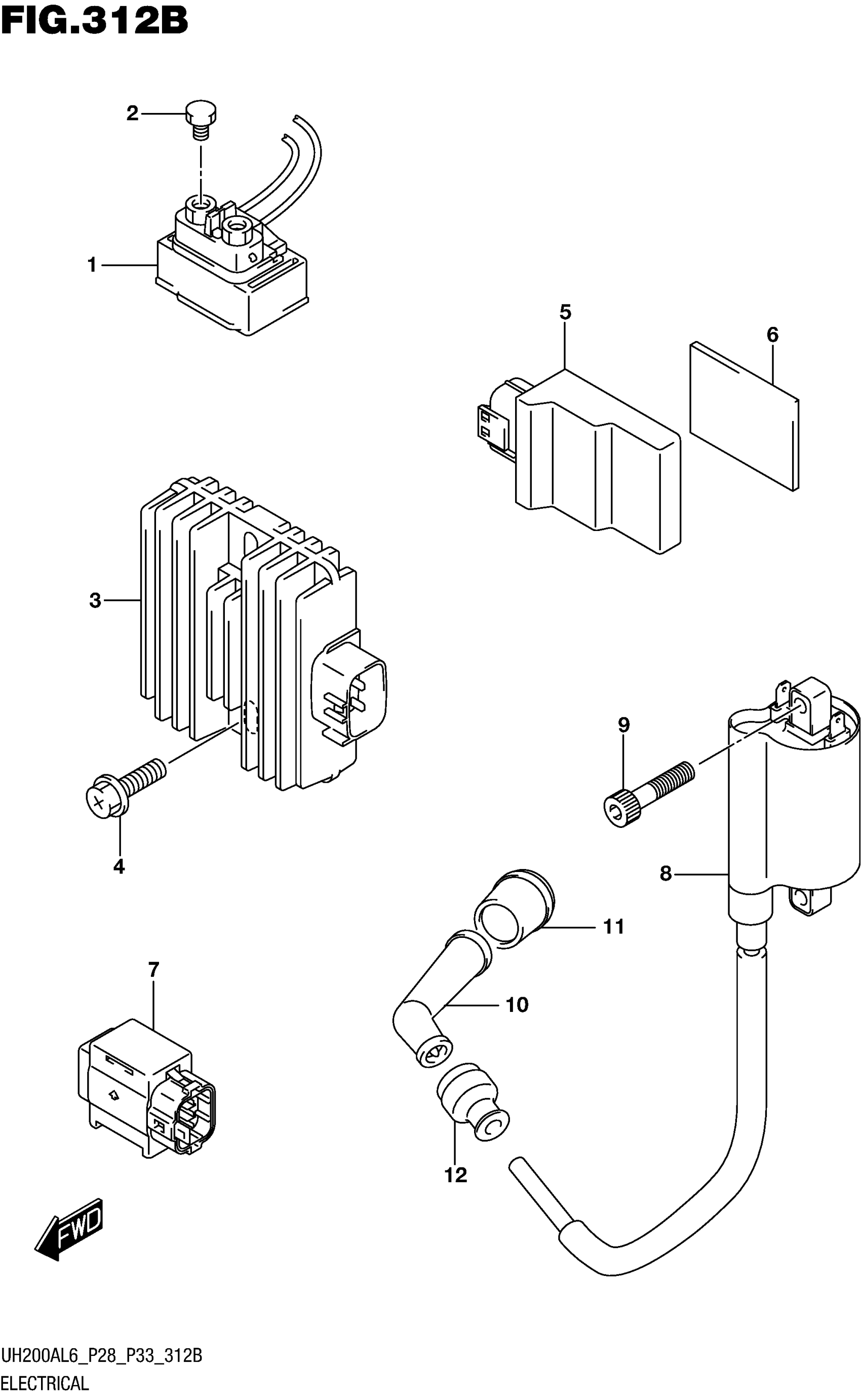

Suzuki UH200AL6 (2016) ELECTRICAL (UH200AL6 P33) Diagram

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$83.85

SCREW (6X8)

09128-06013

$1.24

RECTIFIER ASSY

32800-42F00

$217.09

SCREW

02162-0625A

$1.68

CONTROL UNIT, FI

32920-12J21

Unavailable

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

$4.09

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

COIL ASSY,IGNITION

33410-12J00

$139.78

BOLT

07130-0520A

$2.40

CAP ASSY,SPARK PLUG

33510-16H10

$37.07

SEAL, SPARK PLUG

33541-44D00

$4.85

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97
