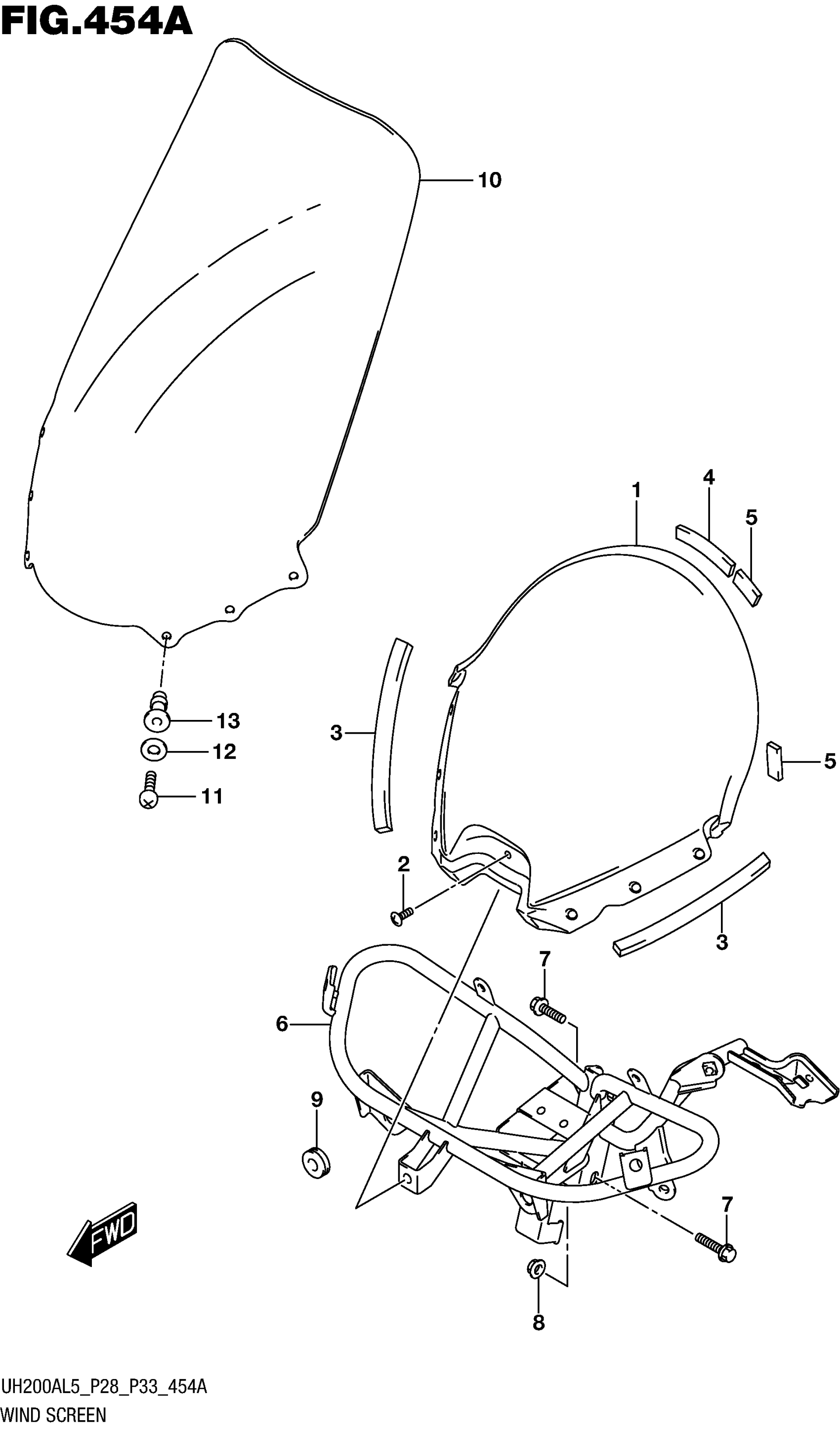

Suzuki UH200AL5 (2015) WIND SCREEN (UH200AL5 P28) Diagram

#

Description
Price

1

PANEL,METER LWR (BLACK)

94421-12JA0-291

$94.42

2

SCREW, UPPER This part replaces 09139-06165.

09139-06168

$2.64

3

CUSHION,METER PANEL LWR

94422-12JA0

Unavailable

4

CUSHION,METER PANEL NO.1

94423-12JA0

Unavailable

5

CUSHION,METER PANEL NO.2

94424-12JA0

Unavailable

6

BRACE, LEG SHIELD

48150-12JB0

$175.48

7

BOLT

07120-0835A

$3.25

8

NUT

08316-1008A

$2.47

9

CUSHION

09320-08018

$2.80

10

WINDSCREEN

94611-03H10

$987.25

10

WINDSCREEN

94611-12JB0

Unavailable

11

SCREW

02142-0520A

$1.41

12

WASHER

08322-0105A

$1.83

13

NUT This part replaces 94612-12JA0.

09159-05045

$6.65
