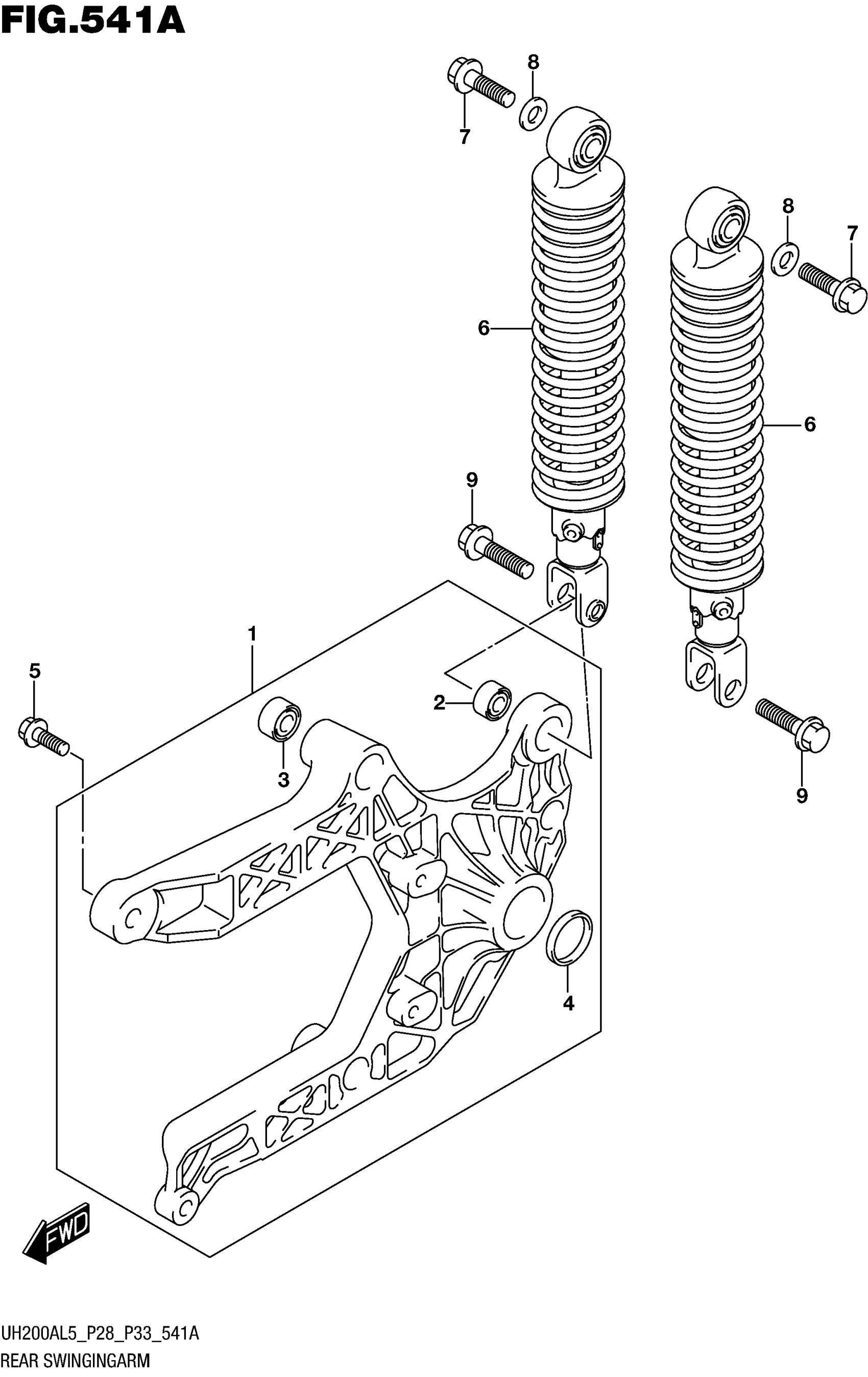

Suzuki UH200AL5 (2015) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR

61000-12J30-019

Unavailable

2

BUSH (10.2X22.3X20)

09319-10032

$10.08

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

OIL SEAL (28X35X5)

09285-28L01

$7.15

5

BOLT

01550-1030A

$3.25

6

ABSORBER ASSY,REAR SHOCK

62100-12J10

$185.57

7

BOLT (10X40) | UPPER

09103-10055

$5.17

8

WASHER (10.5X24X2.3) | UPPER

09160-10093

$2.19

9

BOLT | LOWER

01550-1035A

$3.25
