Find the part on the AIR Cleaner diagram for your 2015 Suzuki UH200AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

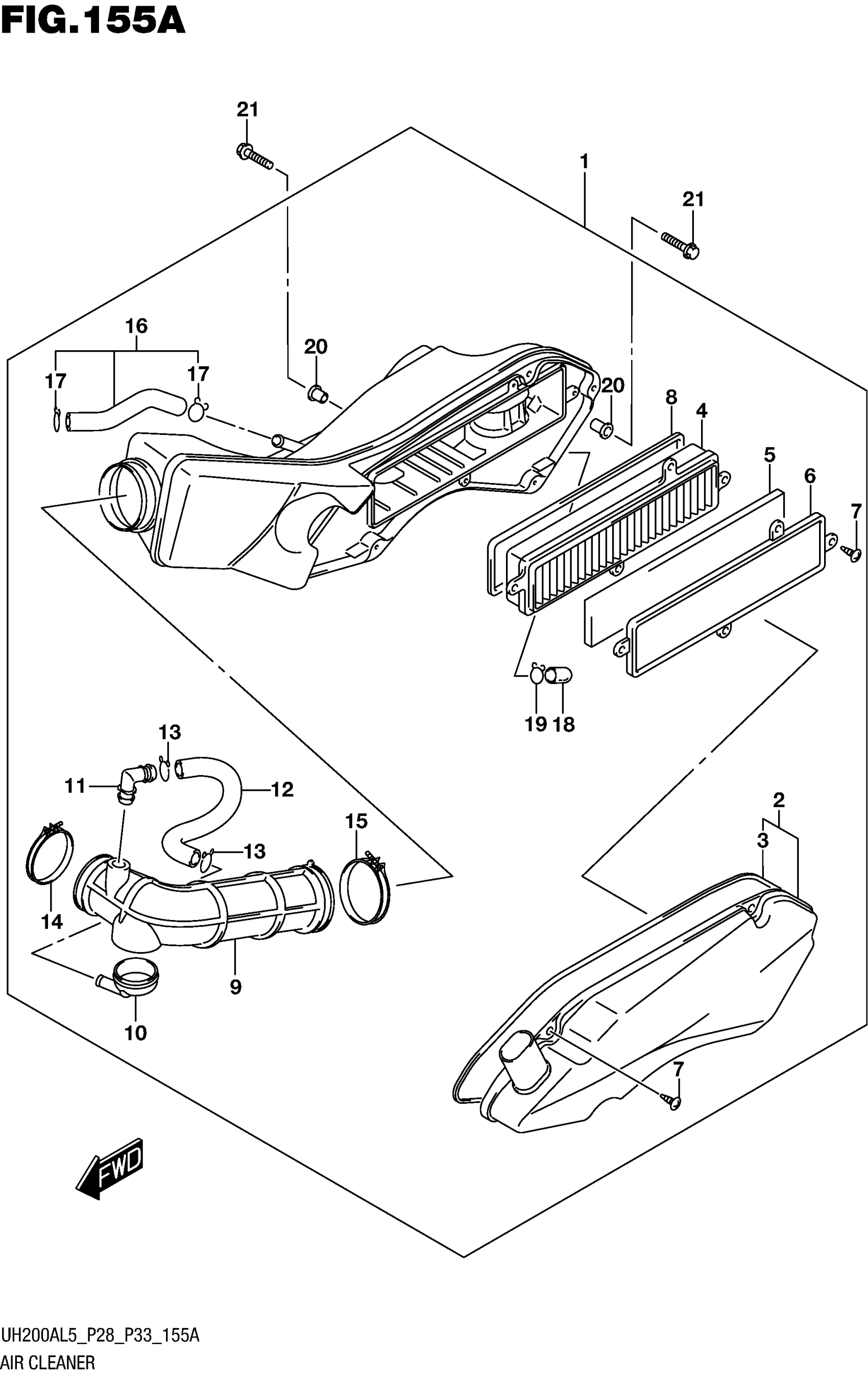

2015 Suzuki UH200AL5 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-03H30

—
Out of stock

2

CAP

13740-03H30

1
Out of stock

3

GASKET

13747-03H30

—
Out of stock

4

FILTER

13780-03H30

1
Out of stock

5

PREFILTER This part replaces 13782-03H30.

13782-03H50

1
Out of stock

6

HOLDER

13791-03H30

—
Out of stock

7

SCREW

03141-0516B

9

$1.34

In stock

8

GASKET This part replaces 13746-03H30.

13746-03H50

1
Out of stock

9

TUBE, OUTLET

13881-03H30

—
Out of stock

10

CAP, RESONATOR

13882-03H30

—
Out of stock

11

JOINT, BREATHER TUBE

13858-14D20

1

$7.41

In stock

12

HOSE, CHAMBER

13884-03H30

—
Out of stock

13

CLIP

09401-14301

2
Out of stock

14

CLAMP

09402-50208

1
Out of stock

15

CLAMP

09402-62208

1
Out of stock

16

TUBE, BREATHER

13850-03H30

—
Out of stock

17

CLIP

09401-14301

2
Out of stock

18

.PLUG This part replaces 13878-10G00.

13878-10G01

1
Out of stock

19

CLIP

09401-14301

1
Out of stock

20

COLLAR

13912-20E00

2
Out of stock

21

BOLT

01550-0625A

2
Out of stock
