2014 Suzuki UH200AL4 Transmission Diagram

← All diagrams

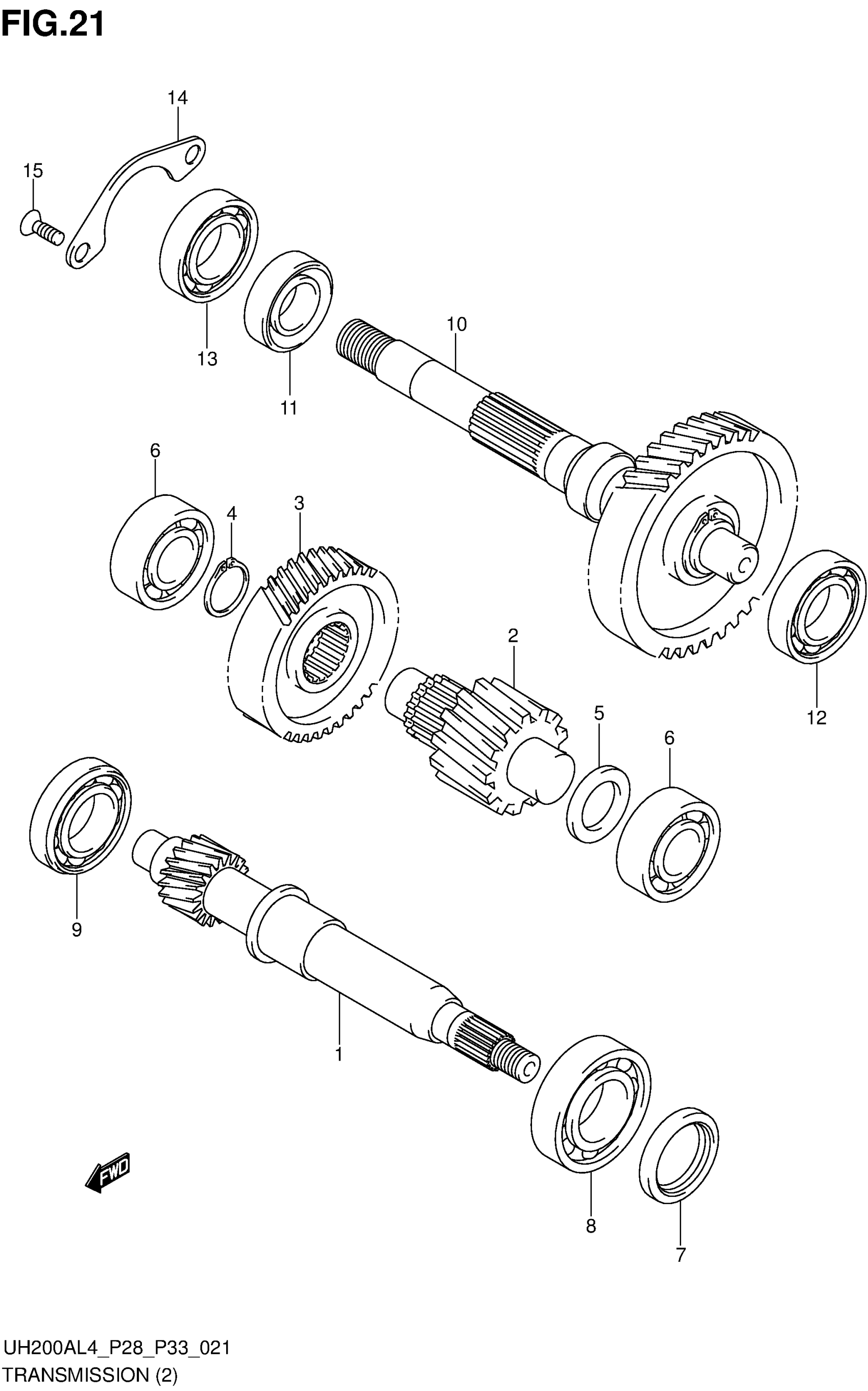

Find the part on the Transmission diagram for your 2014 Suzuki UH200AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki UH200AL4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,DRIVE (NT:16)

24131-03H10

1
Out of stock

2

SHAFT,IDLE

24151-03H50

1
Out of stock

3

GEAR,IDLE DRIVEN

24381-03H20

1
Out of stock

4

CIRCLIP

08331-3120A

1
Out of stock

5

WASHER | LH

08211-15251

1
Out of stock

6

BEARING

08113-62027

2
Out of stock

7

OIL SEAL (25X37X6)

09283-25097

1
Out of stock

8

BEARING (20X47X14) | LH

09262-25126

1
Out of stock

9

BEARING (15X42X13) | RH

09262-15027

1
Out of stock

10

SHAFT, AXLE (NT:38)

24140-03H30-X07

1
Out of stock

11

1

$7.86

In stock

12

BEARING | LH

08113-63030

1
Out of stock

13

BEARING(22X50X1 | RH This part replaces 09262-22027.

09262-22047

1
Out of stock

14

RETAINER,DRIVE SHAHFT BEARING

24751-07900

—
Out of stock

15

SCREW (6X16)

09126-06014

2
Out of stock
