Description

Price

1

SEAT SET This part replaces 45100-12J10-AJS.

45100-12811-A0R

$635.78

2

CUSHION, SEAT MOUNT REAR

45148-20G80

$3.12

3

MOLDING,SEAT

45211-12J00

$35.28

4

BRACKET,SEAT HINGE UPPER This part replaces 45250-12J00.

45250-12J20

$68.08

5

SPRING,SEAT HINGE

45275-03H00

$18.28

6

NUT

08316-1006A

$2.25

7

CUSHION (11.5X22X20)

09321-10002

$2.02

8

SCREW

02122-0512A

$1.95

9

E-RING

08332-1112A

$2.35

10

SPACER

09180-05004

Unavailable

11

CABLE,SEAT LOCK This part replaces 45280-12J10.

45280-12J20

$25.75

12

BRACKET COMP,STRIKER SUPPORT

45700-12J00

$26.45

13

BOLT

07130-0612A

$2.58

14

CLAMP (L:165)

09407-18402

$2.29

15

CLAMP (L:125)

09407-14403

$2.31

16

CLAMP (L:154)

09407-17403

$4.79

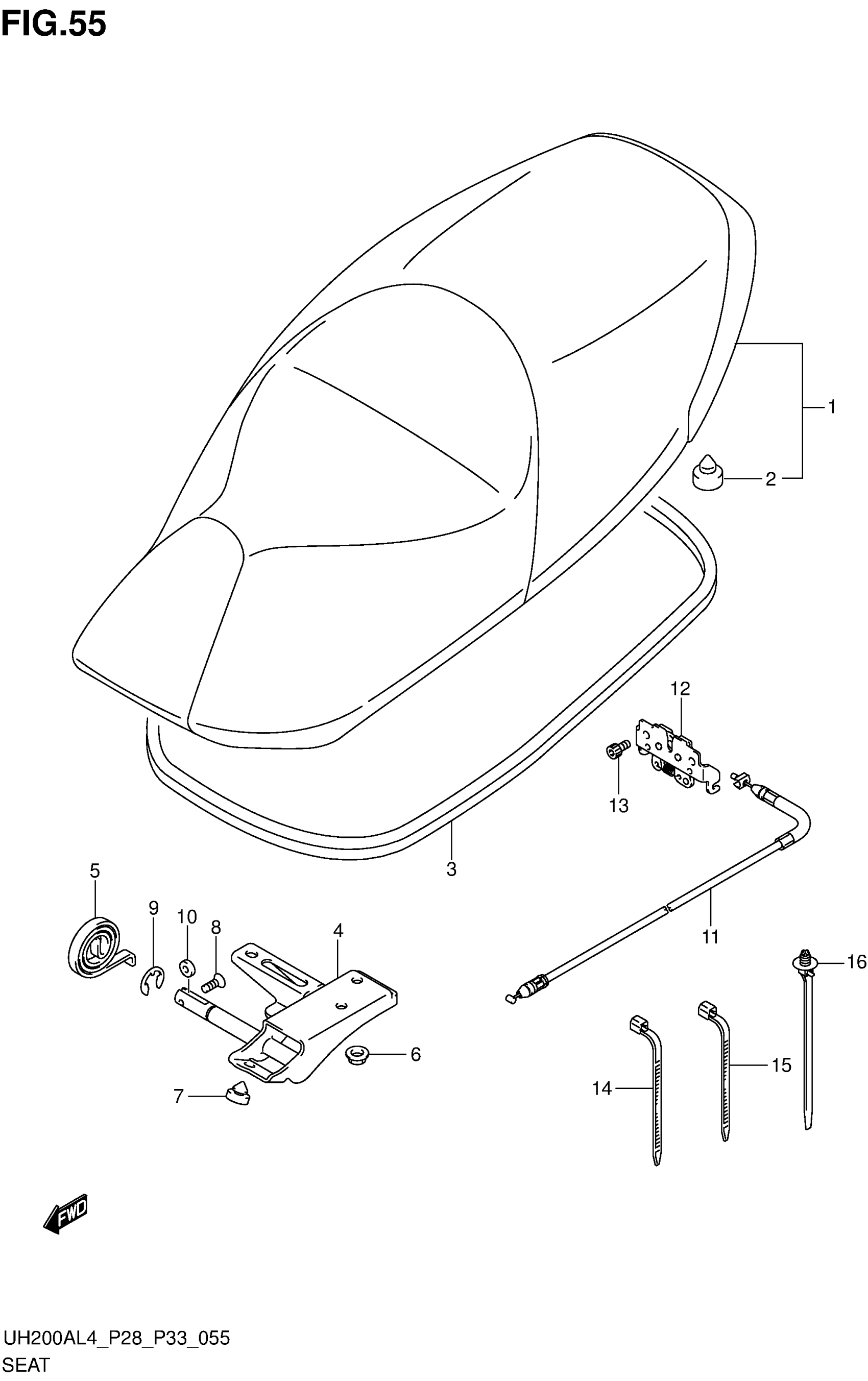

Suzuki UH200AL4 (2014) SEAT Diagram
