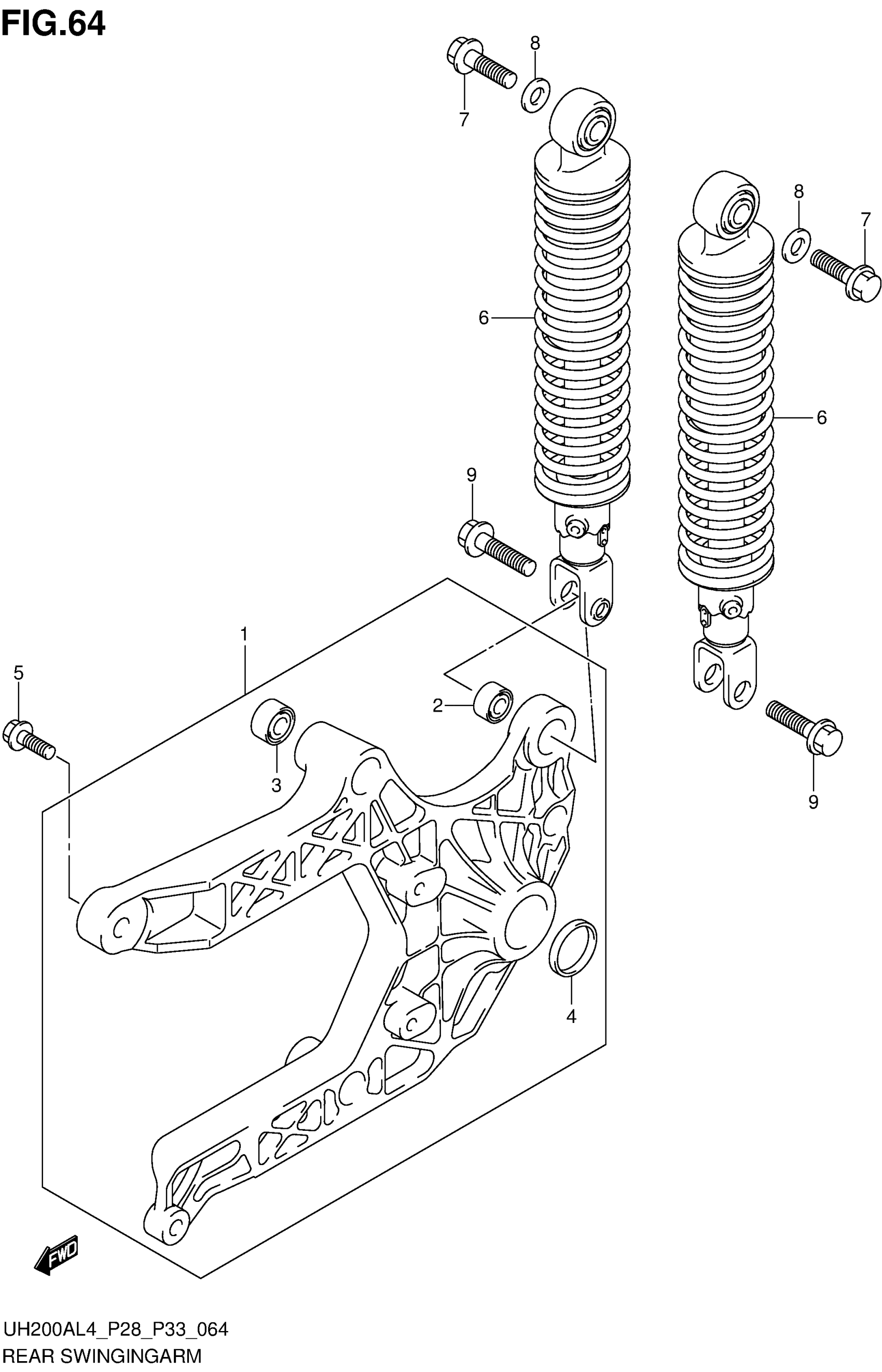

Suzuki UH200AL4 (2014) REAR SWINGINGARM Diagram

#

Description

Price

1

SWINGINGARM ASS This part replaces 61000-12J20-019.

61000-12J21-019

$129.35

2

BUSH (10.2X22.3X20)

09319-10032

$10.08

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

OIL SEAL (28X35X5)

09285-28L01

$7.15

5

BOLT

01550-1030B

$4.03

6

ABSORBER ASSY, REAR SHOCK

62100-03H01

Unavailable

7

BOLT (10X40) | UPPER

09103-10055

$5.17

8

WASHER (10.5X24X2.3) | UPPER

09160-10093

$2.19

9

BOLT | LOWER

01550-1035B

$3.07
