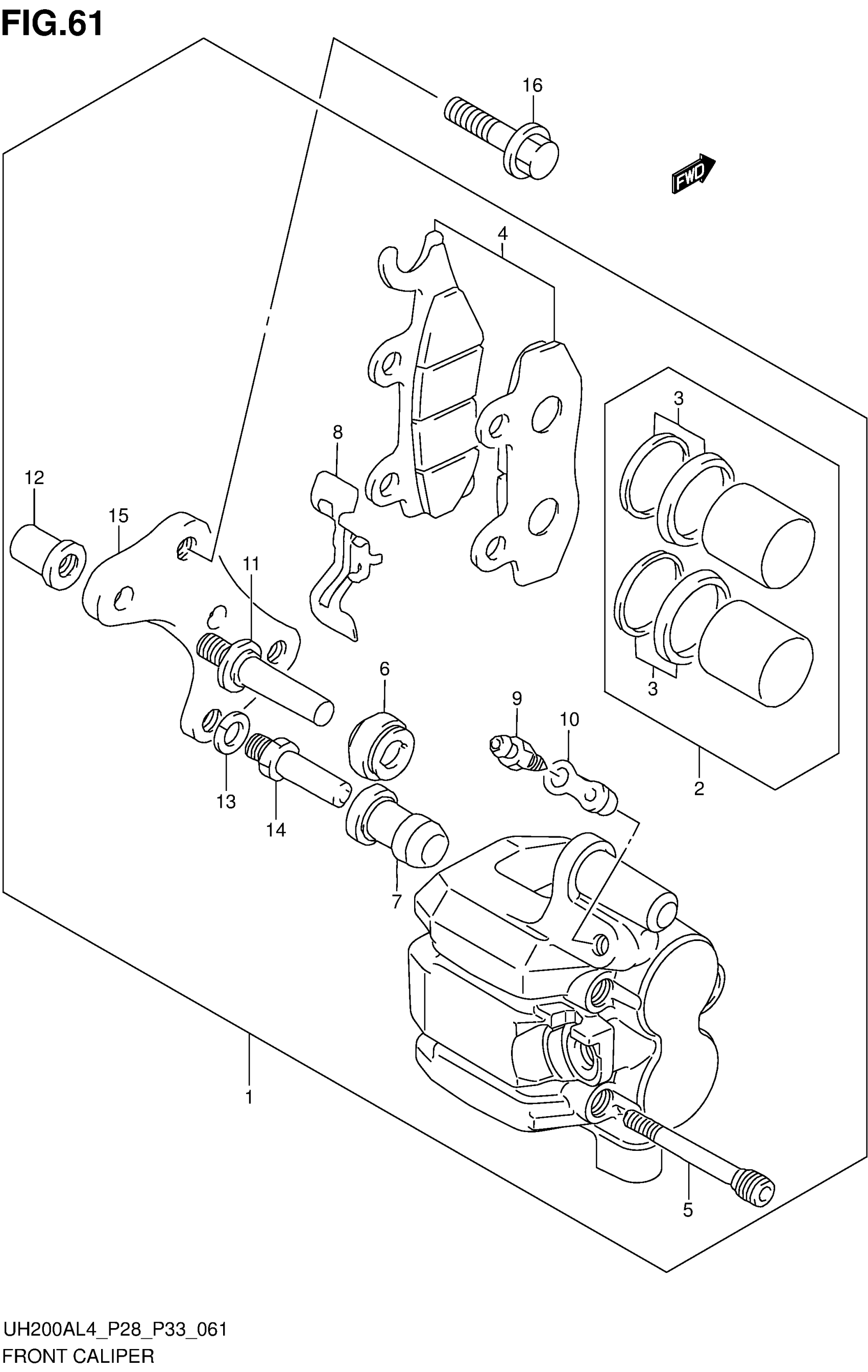

Suzuki UH200AL4 (2014) FRONT CALIPER Diagram

#

Description
Price

1

CALIPERS ASSY, FRONT

59100-21D50

Unavailable

2

PISTON SET

69100-21860

$49.55

3

SEAL SET, PISTON

59300-21860

$26.75

4

PAD SET

59100-21890

$53.50

5

PIN

59345-14600

$18.33

6

BOOT

59303-14500

$5.06

7

BOOT

59386-13A00

$7.28

8

SPRING

69115-31D10

$18.60

9

BLEEDER

59121-01A00

$7.99

10

CAP, BLEEDER

59122-46H00

$4.17

11

PIN

59387-00B20

$17.46

12

NUT

59388-00B20

$20.13

13

WASHER

59314-13A00

$2.28

14

BOLT

59382-13A00

$7.24

15

BRACKET

59351-21D00

Unavailable

16

BOLT CALIPER

01550-0830A

$2.80
